Запчасти Case IH STX375 (04-33[01]) - ACCUGUIDE - VIRTUAL TERMINAL & RELATED PARTS, ASN JEE0106701 (04) - ELECTRICAL SYSTEMS

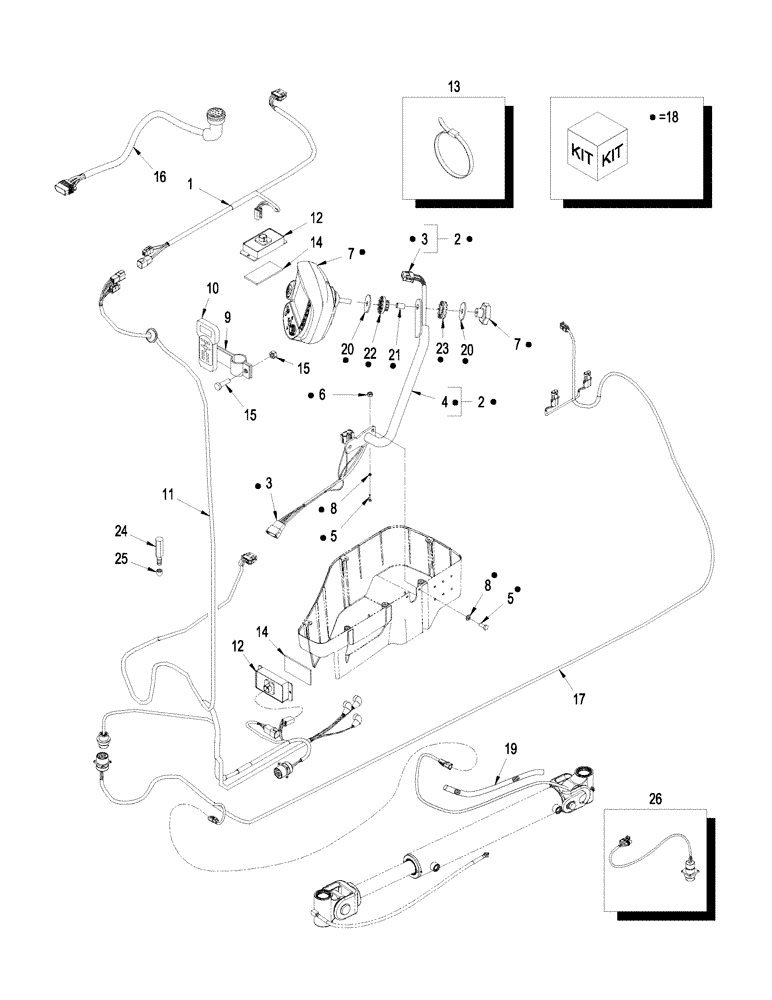

Схема запчастей Case IH STX375 - (04-33[01]) - ACCUGUIDE - VIRTUAL TERMINAL & RELATED PARTS, ASN JEE0106701 (04) - ELECTRICAL SYSTEMS
18
8
15
10
17
18
5
18
1
12
18
14
5
22
20
2
18
1
18
18
13
8
26
2
23
19
18
12
7
18
18
25
15
3
18
18
14
8
18
3
18
18
18
11
18
16
21
4
7
24
18
6
9

Артикул

Название

Примечание

Количество

1

87436715

HARNESS

Auto Guidance, Cab Roof

1шт.

2

87333929

SUPPORT TUBE

Mounting, AFS, Inc. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Harness, Virtual Terminal

1шт.

4

NSS

NOT SOLD SEPARAT

Tube, Mounting

1шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

7

NSS

NOT SOLD SEPARAT

Monitor, Color Virtual Terminal

1шт.

Order from ACCUGUIDE Price Book.

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

9

87428367

KIT

Adj. Arm Mount GPS70

1шт.

10

87428366

MODULE

RDL Radio

1шт.

11

87308467

HARNESS

Cab, Serial Range: -JEE0107825

1шт.

11

87311247

HARNESS

Cab, Start Serial: JEE0107825

1шт.

12

284638A2

ELEC CONNECTOR,4 Pin

Active Terminator

2шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie

15шт.

14

406450A1

FASTENER

Velcro

4шт.

15

87428369

SET

Bolt

1шт.

16

87428396

CABLE ASSY.

CBL, Serial Range: 252-SiteNet

1шт.

17

87308468

HARNESS

Auto Guidance, Cab and Chassis, Serial Range: -JEE0107825

1шт.

17

87311248

HARNESS

Chassis, Start Serial: JEE0107825

1шт.

18

87440700

FIP KIT

Virtual Terminal Display, Inc. 2 - 8, 20 - 23

1шт.

19

A64737

SLEEVE,19.05mm ID x 431.8mm L

Protective

1шт.

20

495-81166

WASHER,17/32" x 2" x .060"

2шт.

21

87351882

TUBE SPACER

1шт.

22

87313871

SPLINED BUSHING

Isolation

1шт.

23

87313870

ISOLATOR

Ring

1шт.

24

87423195

SPACER

4шт.

25

440570A1

STUD

Threaded

4шт.

26

87552159

HARNESS

Adapter, Steering Cylinder

1шт.

Steering Articulation Cylinder 87529571 Can Be Used To Replace and/or Update Steering Cylinder 87429557. However, When Ordering Cylinder 87529571 Also Order 87552159 Adapter Harness To Connect The New Cylinder With The Original Cab Harness.

1шт.

Выбрано товаров: 30
