(05-07) - HYDRAULICS - FRONT STEERING CYLINDERS, WITH ACCUSTEER

Запчасти Case IH STX330 (05-07) - HYDRAULICS - FRONT STEERING CYLINDERS, WITH ACCUSTEER (05) - STEERING

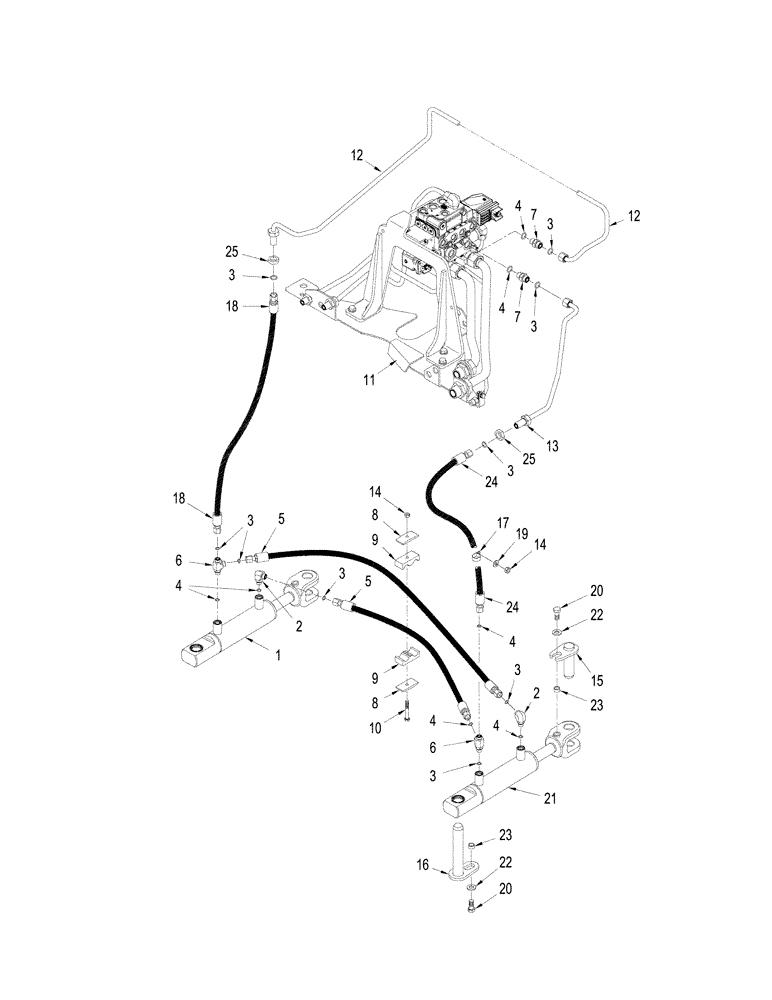

Схема запчастей Case IH STX330 - (05-07) - HYDRAULICS - FRONT STEERING CYLINDERS, WITH ACCUSTEER (05) - STEERING
25
3
25
4
9
3
14
6
20
22
18
14
23
3
17
12
4
3
24
3
18
5
9
7
6
11
3
4
19
8
4
16
10
7
21
2
3
3
1
8
20
15
22
4
24
2
23
12
4
13
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87529572

CYLINDER

with Sensor, See Figure: 05-09, Serial Range: -Z7F105371

1шт.

1

87552135

STEERING CYLINDER

with Sensor, See Figure: 05-09 (01), Start Serial: Z7F105371

1шт.

2

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 3 and 4

2шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

5

363072A1

HOSE

725 mm (28-1/2"), LH to RH Articulation Cylinder

2шт.

6

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 3 & 4

2шт.

7

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 3 & 4

2шт.

8

50-2533T1

PLATE

Cover

2шт.

9

50-2551T1

CLAMP

Double Tube

2шт.

10

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

11

87442925

CONTROL VALVE

Priority / EHPS, See Figure: 08-13, Serial Range: -Z7F105452

1шт.

87442925C

CORE-VALVE HYD

CORE-HYD VALVE Return Number, HYDRAULIC VALVE - for N.A. Only

1шт.

11

87585899

HYDRAULIC VALVE

Priority / EHPS, See Figure: 08-13, Start Serial: Z7F105452

1шт.

12

87308379

HYD TUBE,12.70 mm OD

Port 'B'

1шт.

13

87450240

TUBE,12.7 mm OD

Port 'A'

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

15

256296A1

PIN,38mm OD x 240mm L

240 mm (9-1/2")

2шт.

16

281673A2

PIN

140 mm (5-1/2")

2шт.

17

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

1шт.

18

87452072

HOSE ASSY.

Supply, 899 mm (35-3/8"), Priority Valve to LH Articulation Cylinder

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

20

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

21

87304293

STEERING CYLINDER,Double Acting, 40mm Rod, 164.6mm Stroke

Steering, without Sensor, See Figure: 05-08

1шт.

22

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

23

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

4шт.

24

277010A2

HOSE ASSY.

Supply, 1105 mm (43-1/2"), Priority Valve to RH Articulation Cylinder

2шт.

25

701-903

NUT,13/16" - 16

2шт.
