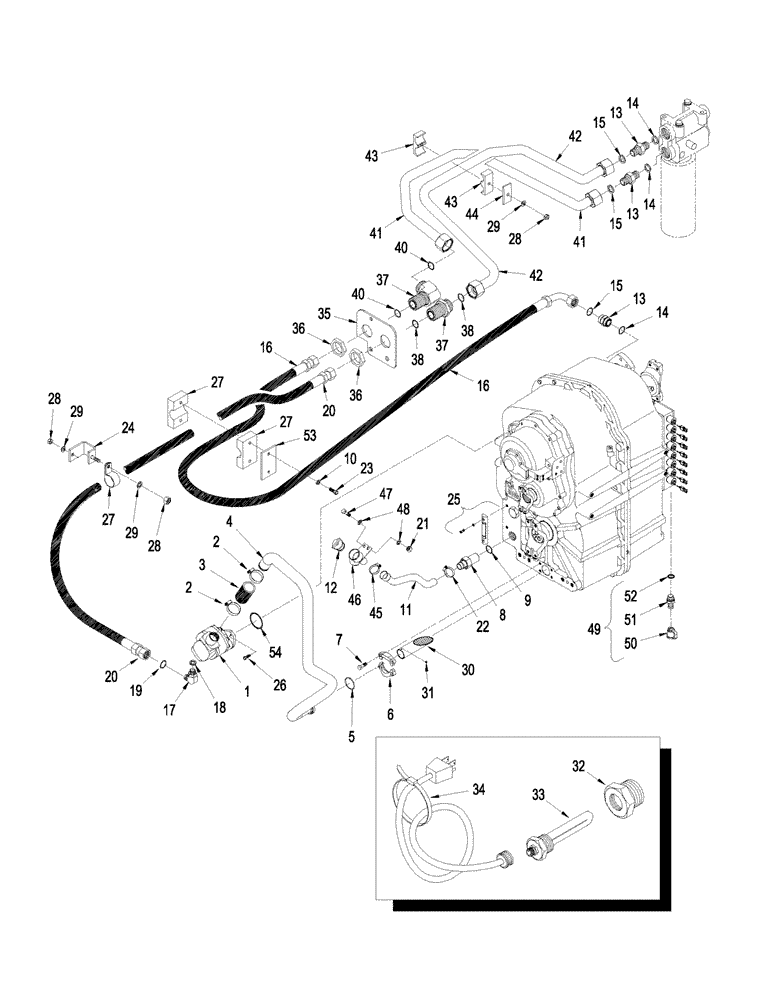

Запчасти Case IH STX330 (06-26) - TRANSMISSION - LUBRICATION, WITH POWER SHIFT TRANSMISSION, WITH ACCUSTEER (06) - POWER TRAIN

1

84176413

LUBE PUMP

Oil

1шт.

1

84176413R

REMAN-HYD PUMP

PUMP

1шт.

1

84176413C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

2шт.

3

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4 in.), Cut From 1-4568

1шт.

4

320382A1

TUBE

Suction, Transmission to Oil Pump

1шт.

5

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

6

A14141

FLANGE

Mounting, Oil Suction Tube

2шт.

7

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

8

87340823

HYD CONNECTOR

Transmission Fill, Inc. 9

1шт.

9

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

10

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

11

87596836

HYDRAULIC HOSE,31.80 mm ID, 54.00 mm ID, SAE 30R7

Transmission Fill

1шт.

12

325737A1

CAP

Transmission fill

1шт.

13

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 14 and 15

3шт.

14

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

16

374549A2

HOSE ASSY.

699 mm (27.5 inches), LH, Serial Range: Filter-Transmission

1шт.

17

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 18 and 19

1шт.

18

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

20

87545942

HOSE ASSY.

Supply, 2020 mm (79-1/2"), Oil Pump to LH Filter

1шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

22

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

23

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

2шт.

24

434574A1

BRACKET

Mounting, Hose

2шт.

25

L116247

GAUGE

Inc. Hardware

1шт.

26

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

27

429384A1

CLAMP,40mm ID x 30mm W x 71mm L

Hose

2шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

30

370551A1

TUBE

1шт.

31

S14701960

BALL,3.968mm OD

Steel

1шт.

186135A1

KIT

Transmission Heater, Inc. 32 - 34

1шт.

32

367930A1

ADAPTER,M42 x 2 NPT

Transmission Heater

1шт.

33

385486A1

HEATER ASSY.

With Cord Set, 300 W

1шт.

34

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

5шт.

35

374530A1

BRACKET

Mounting, Hose

1шт.

36

701-908

BHD LOCK NUT,1-7/16" - 12

2шт.

37

701-116

UNION,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Inc. 38

1шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

39

701-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Inc. 40

1шт.

40

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

41

416506A1

TUBE

LH, Serial Range: Filter-Transmission

1шт.

42

416508A1

TUBE

Supply, Oil Pump to LH Filter

1шт.

43

50-2534T1

CLAMP

Hose, Double

2шт.

44

50-2533T1

PLATE

Mounting, Double Hose Clamp

1шт.

45

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

46

414480A2

TUBE

Transmission Fill

1шт.

47

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

48

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

49

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 50 - 51

1шт.

50

H434163

DUST CAP

1шт.

51

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic, Inc. 52

1шт.

52

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

53

429414A1

COVER PLATE,70mm L x 30mm W x 3mm Thk

Hose Clamp

1шт.

54

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.
