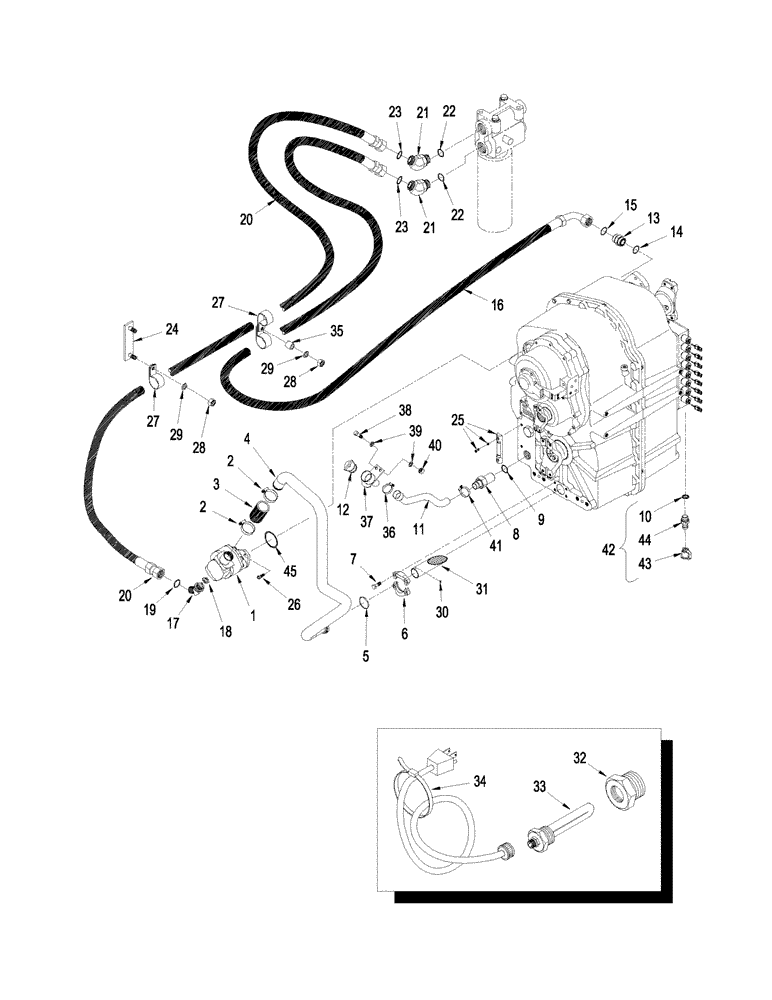

Запчасти Case IH STX330 (06-25) - TRANSMISSION - LUBRICATION, WITH POWER SHIFT TRANSMISSION, WITHOUT ACCUSTEER (06) - POWER TRAIN

1

84176413

LUBE PUMP

Oil

1шт.

1

84176413R

REMAN-HYD PUMP

PUMP

1шт.

1

84176413C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

2шт.

3

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4 in.), Cut From 1-4568

1шт.

4

408581A1

TUBE

Suction, Transmission to Oil Pump

1шт.

5

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

6

A14141

FLANGE

Mounting, Oil SuctionTube

2шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

8

87340823

HYD CONNECTOR

Transmission Fill, Inc. 9

1шт.

9

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

10

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

87596836

HYDRAULIC HOSE,31.80 mm ID, 54.00 mm ID, SAE 30R7

Transmission Fill

1шт.

12

325737A1

CAP

Transmission Fill

1шт.

13

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 14 and 15

1шт.

14

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

16

365378A1

HOSE ASSY.,25.4mm ID x 1429mm L

1429 mm (56 in.), LH, Serial Range: Filter-Transmission

1шт.

17

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 18 and 19

1шт.

18

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

20

365377A2

HOSE ASSY.,25.4mm ID x 2650mm L

Supply, 2650 mm (104 in.), Transmission to LH Filter

1шт.

21

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 22 and 23

2шт.

22

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

23

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

24

324089A1

PLATE ASSY.

Mounting, Hose

2шт.

25

L116247

GAUGE

Inc. Hardware

1шт.

26

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

27

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

5шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

30

S14701960

BALL,3.968mm OD

Steel

1шт.

31

370551A1

TUBE

Transmission Heater

1шт.

186135A1

KIT

Transmission Heater, Inc. 32 - 34

1шт.

32

367930A1

ADAPTER,M42 x 2 NPT

Transmission Heater

1шт.

33

385486A1

HEATER ASSY.

Transmission, with Cord Set, 300 W

1шт.

34

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

5шт.

35

90-7586T1

SPACER

1шт.

36

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

37

414480A2

TUBE

Transmission Fill

1шт.

38

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

39

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

40

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

41

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

42

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 43 & 44

1шт.

43

H434163

DUST CAP

1шт.

44

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic, Inc. 10

1шт.

45

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.
