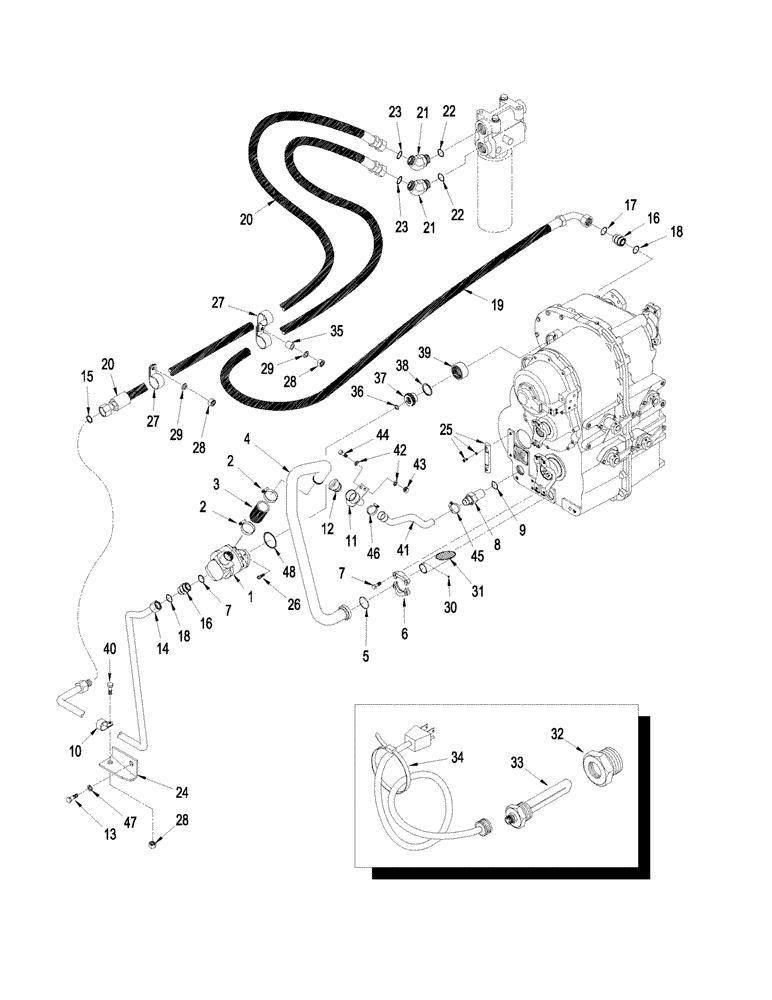

Запчасти Case IH STX330 (06-24) - TRANSMISSION - LUBRICATION, WITH MANUAL SHIFT TRANSMISSION (06) - POWER TRAIN

1

84176413

LUBE PUMP

Oil

1шт.

1

84176413R

REMAN-HYD PUMP

PUMP

1шт.

1

84176413C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

2шт.

3

427140A1

HOSE,50.80 mm ID x 101.60 mm

1шт.

4

418735A1

TUBE

Suction

1шт.

5

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

6

A14141

FLANGE

2шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

8

87340823

HYD CONNECTOR

Transmission Fill, Inc. 9

1шт.

9

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

10

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

11

414480A2

TUBE

Transmission Fill

1шт.

12

325737A1

CAP

Transmission Fill

1шт.

13

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

14

438258A1

TUBE

1шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

16

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 17 and 18

2шт.

17

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

19

375334A2

HOSE ASSY.

Supply, 1486 mm (58-1/2")

1шт.

20

440897A1

HOSE ASSY.

Outlet

1шт.

21

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 31 and 32

2шт.

22

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

23

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

24

442250A1

BRACKET

Support

2шт.

25

L116247

GAUGE

Inc. Hardware

1шт.

26

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

27

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

5шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

30

S14701960

BALL,3.968mm OD

1шт.

31

370551A1

TUBE

1шт.

186135A1

KIT

Transmission Heater, Inc. 32 - 34

1шт.

32

367930A1

ADAPTER,M42 x 2 NPT

Transmission Heater

1шт.

33

385486A1

HEATER ASSY.

With Cord

1шт.

34

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

5шт.

35

90-7586T1

SPACER

1шт.

36

427516A1

RING, SNAP

RING SNAP

1шт.

37

427523A1

ADAPTER

1шт.

38

800-2150

SNAP RING,M50, Int

1шт.

39

427521A1

COUPLING

1шт.

40

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

41

429721A2

RADIATOR HOSE,31.80 mm ID, 44.00 mm ID x 370.00 mm, SAE 100R6, SAE 30R6

1шт.

42

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

43

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

45

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

46

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

44

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

45

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

46

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

47

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.
