Запчасти Case IH STX330 (05-13) - CYLINDER ASSY - ARTICULATION, WITH SENSOR, BSN Z7F105441 (05) - STEERING

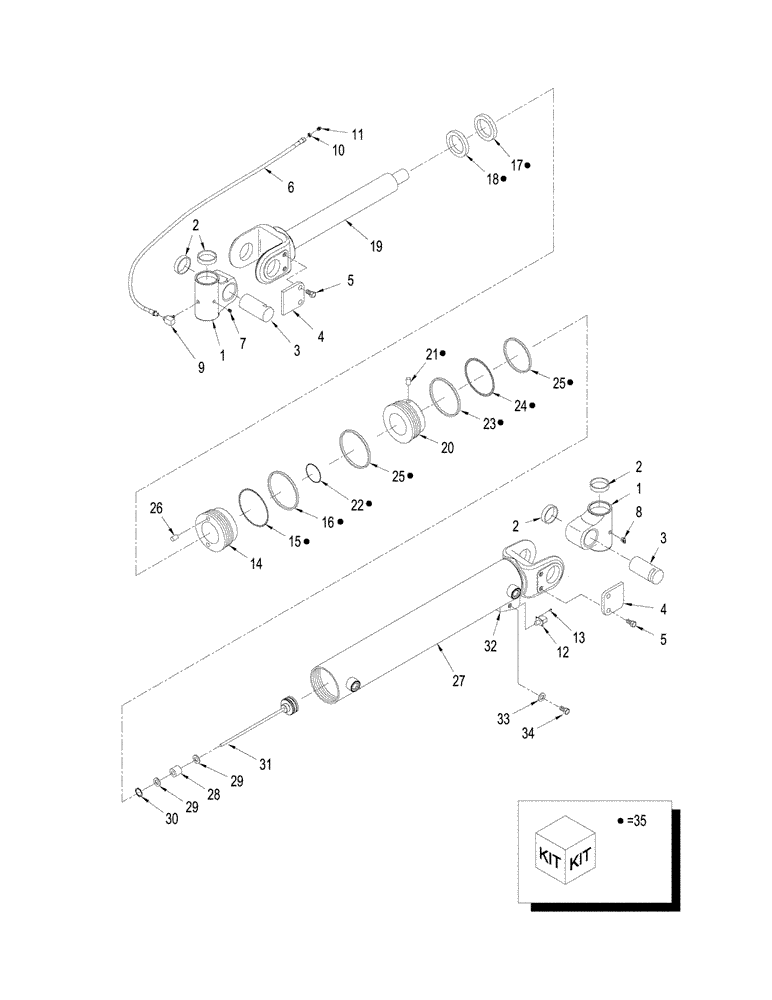

Схема запчастей Case IH STX330 - (05-13) - CYLINDER ASSY - ARTICULATION, WITH SENSOR, BSN Z7F105441 (05) - STEERING
29
35
4
2
35
25
35
35
22
5
7
11
2
27
8
3
1
13
1
33
2
24
35
14
35
20
18
35
23
16
32
15
21
31
4
6
9
26
28
30
35
35
35
5
35
25
12
10
35
29
19
25
3
34

Артикул

Название

Примечание

Количество

1

410700A1

KNUCKLE JOINT

2шт.

2

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

8шт.

3

87447988

PIN

2шт.

4

87447987

PLATE

Retainer

2шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

6

937781R92

HOSE,3.02mm ID x 686mm L

Lubrication

1шт.

7

86637724

PLUG,1/8" - 27 NPT

2шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

9

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

10

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

11

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

12

87364410

ELEC. TERMINAL PIN

Socket, 4-Pin

1шт.

13

87022296

SCREW,Phillips Drive, Pan HD, M3 x 8mm, Cl 4.8

4шт.

87529570

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod

Articulation, Inc. 14 - 34

1шт.

14

87397782

HEAD

1шт.

15

NSS

NOT SOLD SEPARAT

Ring

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

17

NSS

NOT SOLD SEPARAT

Seal

1шт.

18

NSS

NOT SOLD SEPARAT

Wiper

1шт.

19

87397783

SHAFT

Piston

1шт.

20

87397773

PISTON

1шт.

21

NSS

NOT SOLD SEPARAT

Cup, Screw, .380"

1шт.

22

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

23

NSS

NOT SOLD SEPARAT

Ring, Piston

1шт.

24

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

25

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

26

NSS

NOT SOLD SEPARAT

Screw, 1/4"-NC x 3/8"

1шт.

27

87397784

CASE

Barrel

1шт.

28

87397843

MAGNET

1шт.

29

87397844

SPACER

2шт.

30

87532453

SNAP RING

1шт.

31

87328594

SENSOR

Rod Sensor, Rear Articulation

1шт.

32

87397788

GUARD

Sensor Wire

1шт.

33

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

34

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

1шт.

35

87397777

SEAL KIT

Inc. 15 - 18, 22 - 26

1шт.

Выбрано товаров: 36
