Запчасти Case IH STX330 (05-12) - CYLINDER ASSY - ARTICULATION, WITHOUT SENSOR (05) - STEERING

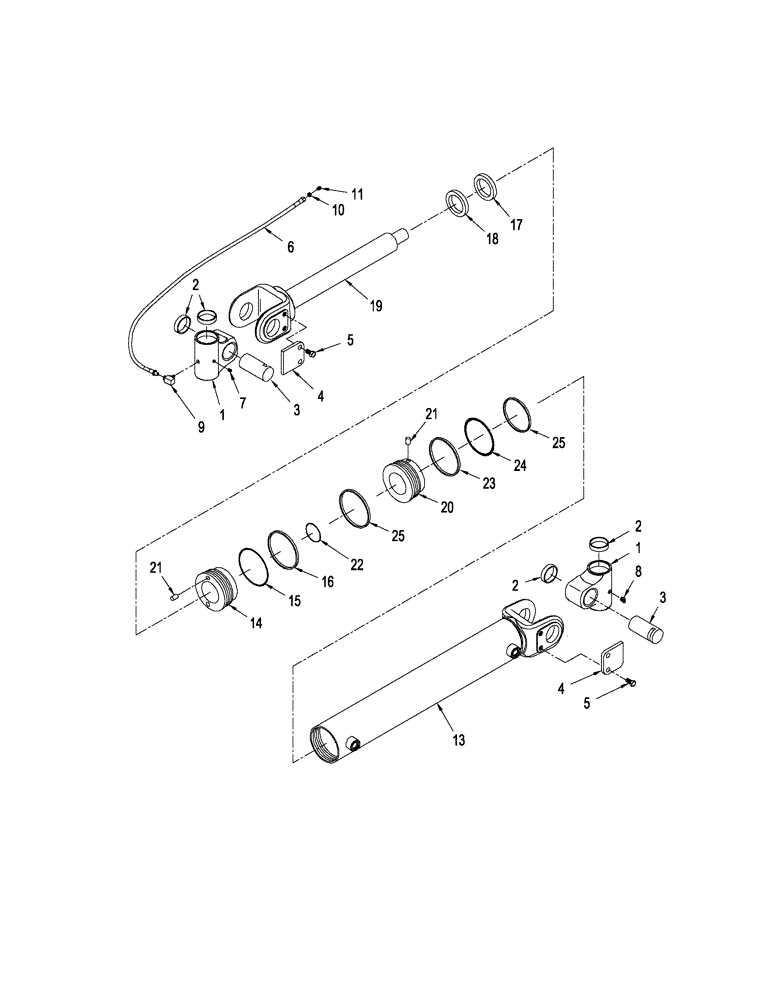

Схема запчастей Case IH STX330 - (05-12) - CYLINDER ASSY - ARTICULATION, WITHOUT SENSOR (05) - STEERING
4
6
24
2
21
3
8
4
17
14
1
18
2
1
7
10
22
5
5
11
2
19
15
13
3
16
23
21
20
25
25
9

Артикул

Название

Примечание

Количество

1

410700A1

KNUCKLE JOINT

2шт.

2

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

8шт.

3

87447988

PIN

2шт.

4

87447987

PLATE

2шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

6

937781R92

HOSE,3.02mm ID x 686mm L

Lubrication

1шт.

7

86637724

PLUG,1/8" - 27 NPT

2шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

9

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

10

F53473

LOCK NUT,1/8-27 NPSM

1шт.

11

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

87447305

HYDRAULIC CYLINDER

Articulation, Inc. 13 - 26

1шт.

87304291R

REMAN-HYD CYLINDER

STEIGER 280, STEIGER 330, Both (ASN Z6F105001) (NA), STX280, STX330, Both CASE IH (BTW Z6F100023 - Z6F105001), All 4WD TRACTOR, Articulation, Reman for New PN 87447305

1шт.

87304291C

CORE-HYD CYLINDER

Return Number

1шт.

13

87397787

CASE

Barrel

1шт.

14

87397782

HEAD

1шт.

15

NSS

NOT SOLD SEPARAT

Ring

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

17

NSS

NOT SOLD SEPARAT

Seal

1шт.

18

NSS

NOT SOLD SEPARAT

Wiper

1шт.

19

87397786

SHAFT

Piston

1шт.

20

87397773

PISTON

1шт.

21

NSS

NOT SOLD SEPARAT

Screw

1шт.

22

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

23

NSS

NOT SOLD SEPARAT

Ring, Piston

1шт.

24

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

25

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

87397777

SEAL KIT

Seals, Inc. 15 - 18, 22 - 26

1шт.

Выбрано товаров: 28
