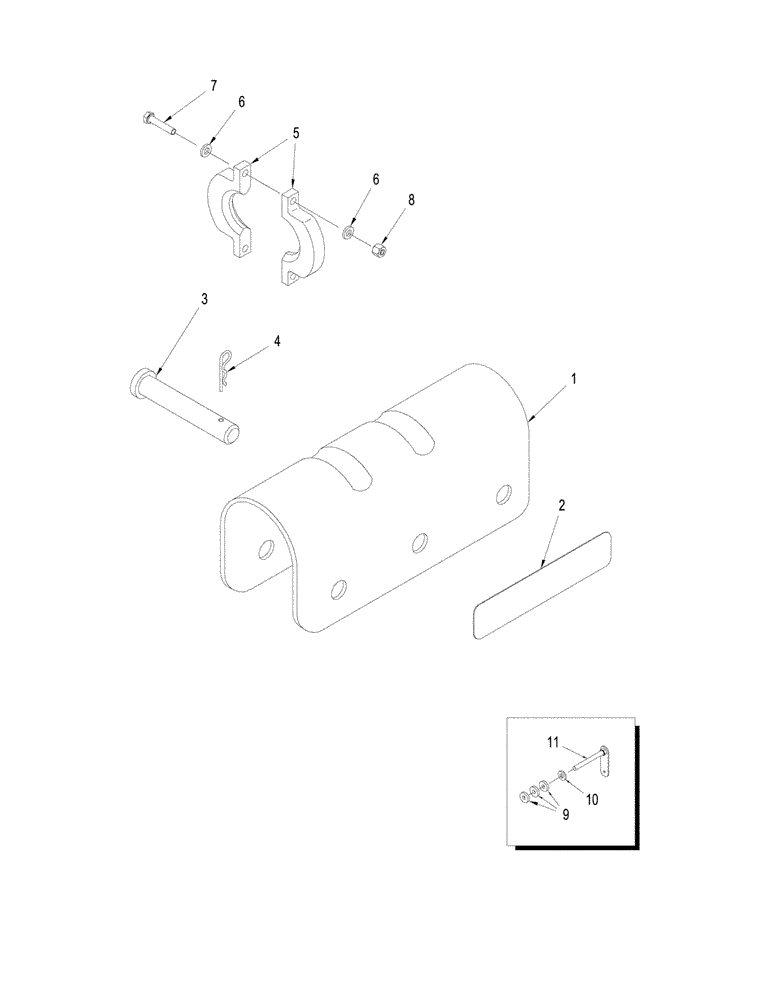

Запчасти Case IH STX330 (05-10) - ARTICULATION LOCKS (05) - STEERING

1

87337941

LOCKING DEVICE

216 mm (8-1/2")

1шт.

Used without Stops

1шт.

1

87337944

LOCKING DEVICE

Short, 188 mm (7-13/32")

1шт.

1

403803A1

LOCK

Stop, 108 mm (4-1/4"

1шт.

1

87337945

LOCKING DEVICE

Stop, 202 mm (8")

1шт.

2

440518A1

DECAL

Locking Block

1шт.

3

427-8325

CLEVIS PIN,1/2" x 3 1/4"

1шт.

4

435425A1

PIN

Hair, 1/8"

1шт.

5

87337925

LOCKING DEVICE

Half, Articulation, 14 mm (Two required per cylinder)

1шт.

6

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

7

627-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9, Full Thd

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

3шт.

10

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

11

406390A1

HANDLE

Mounting, Articulation Lock

1шт.
