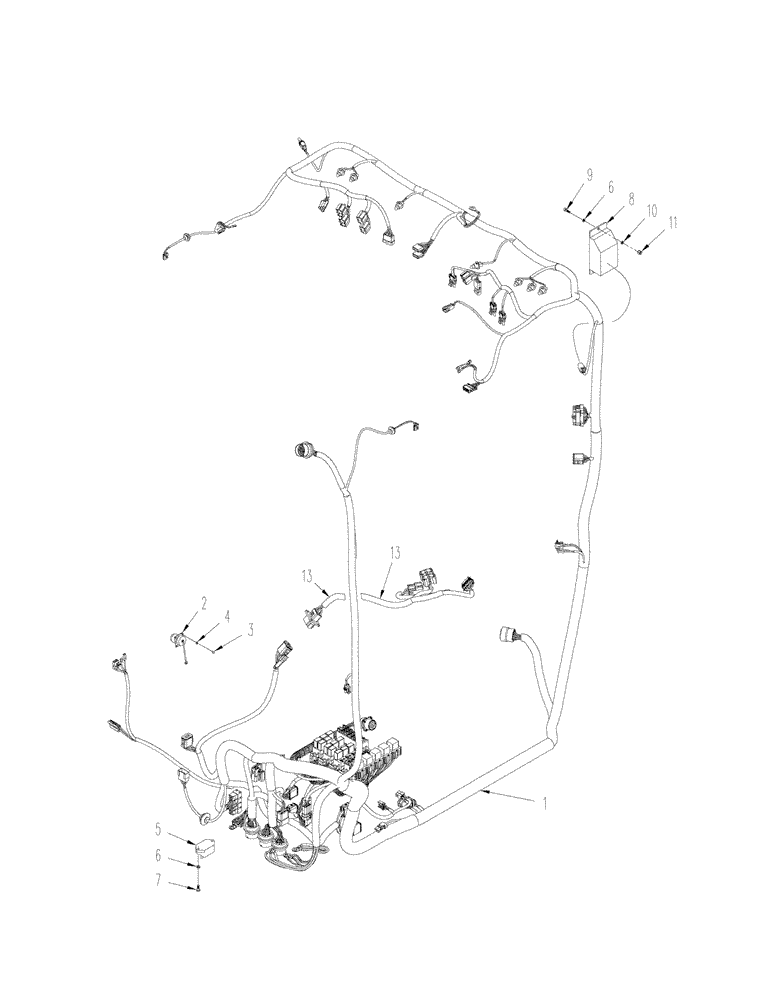

Запчасти Case IH STX325 (04-22) - HARNESS - MAIN CAB, STANDARD CAB (04) - ELECTRICAL SYSTEMS

431610A2

MODULE

Electronics, See Figure 04-24, Inc. 1, Serial Range: -JEE0099963

1шт.

With Manual Shift Transmission

1шт.

87416354

MODULE

See Figure 04-24, Inc. 1, Start Serial: JEE0099963

1шт.

With Manual Shift Transmission

1шт.

1

NSS

NOT SOLD SEPARAT

Harness, Main Cab

1шт.

2

227739A2

POWER SOCKET

Power

1шт.

3

383986A1

RIVET

4шт.

4

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

8шт.

5

20-2041T2

CIRCUIT BREAKER

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

2шт.

8

397496A1

MULTIPOLE CONNECTOR,4 Pin

Passive

1шт.

9

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

2шт.

10

892-11006

LOCK WASHER,M6

2шт.

11

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

12

388811A1

CIGAR LIGHTER

Not Illustrated

1шт.

13

403757A1

HARNESS

1шт.

Without Arm Rest Unit

1шт.

14

87541092

SWITCH

Cab Dome Lamp (Not Shown)

1шт.
