Запчасти Case IH STX325 (04-21) - HARNESS - ENGINE (04) - ELECTRICAL SYSTEMS

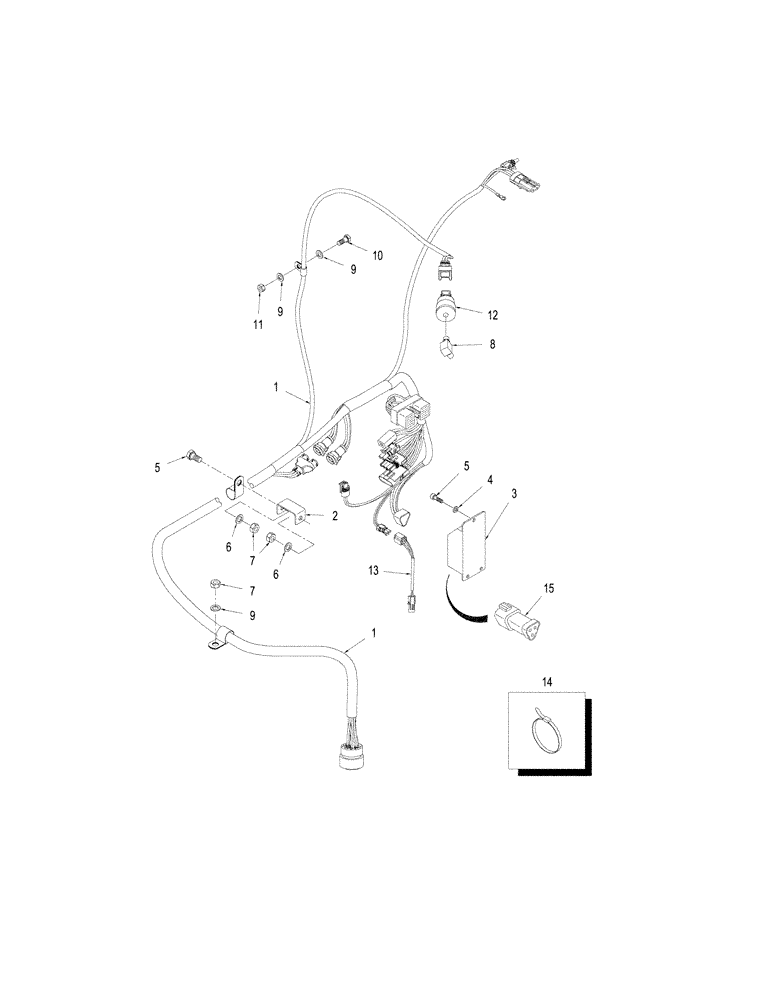

Схема запчастей Case IH STX325 - (04-21) - HARNESS - ENGINE (04) - ELECTRICAL SYSTEMS
5
13
2
10
6
1
7
4
11
14
9
6
7
3
9
1
5
8
15
9
12

Артикул

Название

Примечание

Количество

1

429494A1

HARNESS

8.3L / 9.0L Engine, Serial Range: -JEE0102292

1шт.

1

87413840

HARNESS

8.3L / 9.0L Engine, Serial Range: JEE0102292-JEE0106701

1шт.

1

87310753

HARNESS

8.3L / 9.0L Engine, Start Serial: JEE0106701

1шт.

2

379574A1

BRACKET

Offset

1шт.

3

397496A1

MULTIPOLE CONNECTOR,4 Pin

Passive, Serial Range: -JEE0106701

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

5

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

13шт.

7

832-10406

NUT,M6 x 1, Cl 8

3шт.

8

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

12

293797A1

RESTRICTION SWITCH

Air

1шт.

13

358878A2

HARNESS

Ether Start

1шт.

14

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

15

84058092

CONTACT HOUSING,120 Ohm Resistor

, Start Serial: JEE0106701

1шт.

Выбрано товаров: 17
