Запчасти Case IH STX325 (04-15) - BATTERIES (04) - ELECTRICAL SYSTEMS

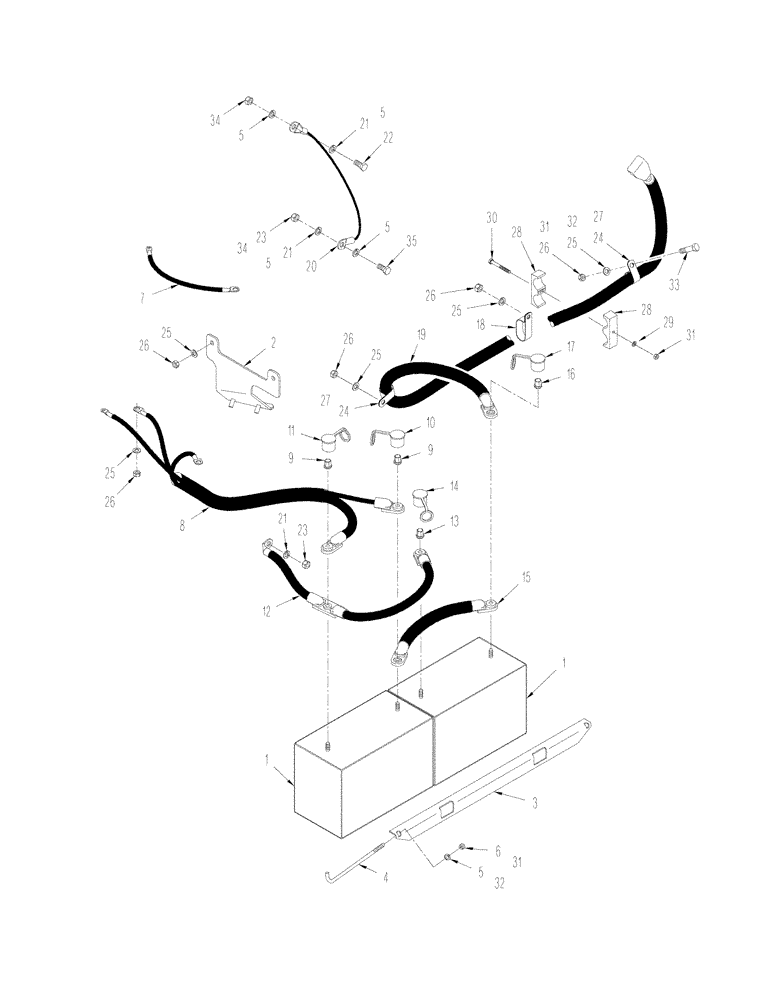

Схема запчастей Case IH STX325 - (04-15) - BATTERIES (04) - ELECTRICAL SYSTEMS
29
3
31
21
1
12
30
33
1
34
26
9
8
23
26
6
5
14
10
5
15
5
25
13
32
24
2
21
5
24
32
27
25
26
11
26
31
31
4
17
23
28
7
20
34
28
19
27
21
35
5
25
25
18
25
16
9
26
22

Артикул

Название

Примечание

Количество

1

BMF31GS

DRY BATTERY

1000 cca

2шт.

2

365035A5

BRACKET

1шт.

3

367148A1

BRACKET

Mounting

1шт.

4

389798A1

ROD

2шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

7

364590A1

CABLE

Circuit Breaker

1шт.

8

361988A3

HARNESS

Cab Power, Inc. 9 - 11

1шт.

9

313189A1

NUT

2шт.

10

NSS

NOT SOLD SEPARAT

Cap

1шт.

11

NSS

NOT SOLD SEPARAT

Cap

1шт.

12

363112A2

CABLE

Negative, Inc. 13 and 14

1шт.

13

313189A1

NUT

1шт.

14

NSS

NOT SOLD SEPARAT

Cap

1шт.

15

363057A1

CABLE

Positive Jumper, Inc. 16 and 17

1шт.

16

313189A1

NUT

1шт.

17

NSS

NOT SOLD SEPARAT

Cap

1шт.

18

L111928

CLAMP

2шт.

19

363058A2

CABLE

Positive

1шт.

20

373555A1

STRAP

Engine Ground

1шт.

Located at the Articulation Hinge on Accusteer Models.

1шт.

20

367786A1

STRAP

Engine Ground

1шт.

21

892-11012

LOCK WASHER,M12

3шт.

22

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

23

829-1412

NUT,M12, Cl 10.9

2шт.

24

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

2шт.

Without ACCUSTEER

1шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

Without ACCUSTEER

1шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

Without ACCUSTEER

1шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

7шт.

Without ACCUSTEER

1шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

27

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

28

50-2965T1

HOSE CLAMP

2шт.

29

892-11008

LOCK WASHER,8mm ID

1шт.

30

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

32

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm

2шт.

33

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

With Accusteer

1шт.

34

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

Located at the Articulation Hinge on Accusteer Models.

1шт.

35

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

Complete Engine, Less: Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 382362A1

1шт.

Выбрано товаров: 45
