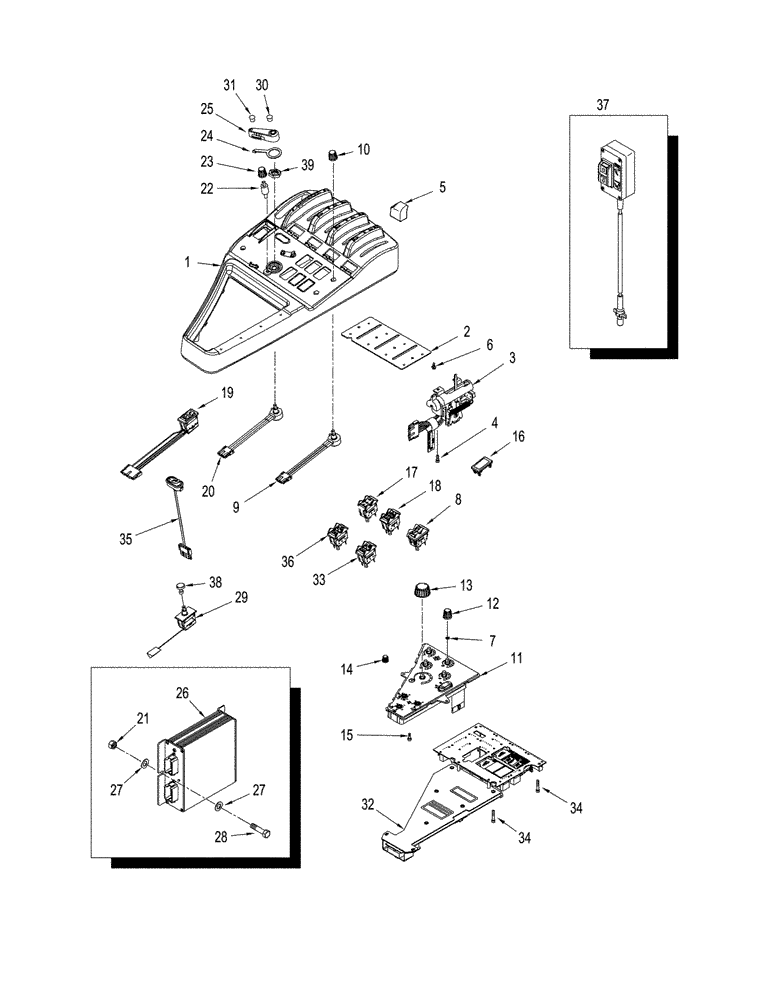

Запчасти Case IH STX325 (04-01) - CONTROLS - CONSOLE, RIGHT-HAND, BSN JEE0106701 (04) - ELECTRICAL SYSTEMS

1

408021A1

HOUSING

Cover Assy, See Figure 09-22, Serial Range: -JEE0102001

1шт.

1

417819A2

HOUSING

Cover Assy, Upper, with Decals, See Figure 09-23, Serial Range: JEE0102001-JEE0106701

1шт.

409638A1

CONTROL

Inc. 2 - 4

1шт.

2

230098A1

PLATE

1шт.

3

406961A1

LEVER ASSY.

Remote Auxiliary Valve

4шт.

47372893R

REMAN-JOYSTICK

STX275, STX325 Both 4WD TRACTOR (AFTER S/N JEE0099501) (BSN JEE0106701), Reman for New PN 406961A1

4шт.

47372893C

CORE-JOYSTICK

Return Number

1шт.

4

281-3446

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/8"

No. 8 NC x 3/8 in.

8шт.

5

406962A1

KNOB

Remote

4шт.

6

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

4шт.

7

A39888

NUT

3/8-32

1шт.

8

277499A1

SWITCH

Valve, Fifth Auxiliary

1шт.

9

256305A2

POTENTIOMETER,1000 Ohm

Flow Control

1шт.

10

276797A1

KNOB

Flow Control

1шт.

11

339735A1

PANEL

Secondary

1шт.

Used on Engines ASN 46324151

1шт.

11

238290A4

PANEL

Secondary

1шт.

Without Three Point Hitch

1шт.

12

276797A1

KNOB

Fow Control

4шт.

13

187820A1

KNOB

Remote Valve Timer Control

1шт.

14

223433A1

KNOB

Electronic Draft Control

2шт.

15

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

2шт.

16

86000535

PLUG,1.427" x .62", Plastic

2шт.

17

229378A1

SWITCH

Differential Lock, Front

1шт.

18

246809A1

SWITCH

Differential Lock, Rear

1шт.

19

255676A1

SWITCH

Hitch Position

1шт.

20

256304A2

POTENTIOMETER,1000 Ohm

1шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

22

256303A2

LOCK

1шт.

23

276797A1

KNOB

1шт.

24

248087A1

LEVER

Stop Position

1шт.

25

299483A2

CONTROL LEVER

Hitch Position

1шт.

26

330537A3

CONTROL UNIT

Axle Control

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

28

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

29

414495A1

SWITCH

Power Takeoff

1шт.

30

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

Without Three Point Hitch

1шт.

31

374705A1

PLUG

1шт.

Without Three Point Hitch

1шт.

32

399285A1

UNIT

Armrest Processor

1шт.

Download Software from Service Tool

1шт.

32

87308354R

REMAN ELECT CONTROL

STX275, STX325, Both CASE IH 4WD TRACTOR (AFTER S/N JEE0099501), RIGHT-HAND CONSOLE BSN JEE0106701, Reman for New PN 399285A1

1шт.

32

87308354C

CORE-ELECTRONIC CONT

Return Number

1шт.

33

87440713

SWITCH

ACCUGUIDE

1шт.

34

864-4016

HEX SOC SCREW,M4 x 16mm, Cl 8.8

6шт.

35

229376A2

SWITCH

Four-Wheel Drive Steering

1шт.

36

229373A1

SWITCH

EDC, Slip Limit Control

2шт.

37

382247A1

SWITCH

Remote

1шт.

38

411705A3

KNOB

1шт.

39

375844A1

NUT

1шт.
