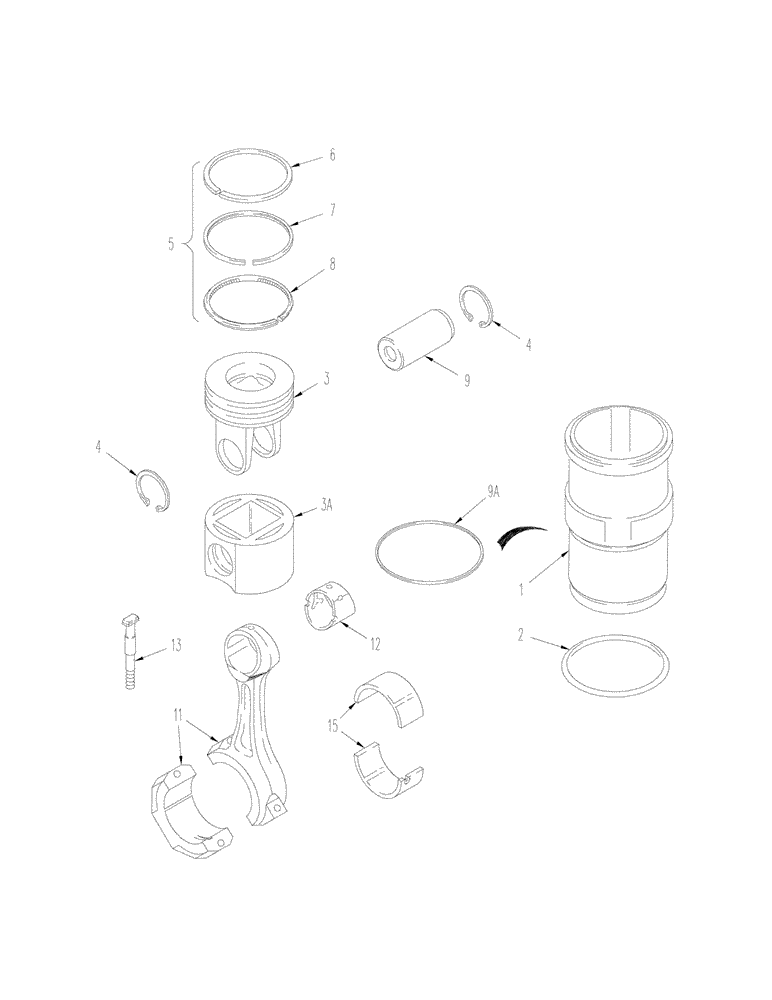

Запчасти Case IH STX325 (02-26[02]) - PISTONS AND CONNECTING RODS, STX325 (02) - ENGINE

A77974

KIT

Piston and Sleeve, Standard, Inc. 1 - 8

6шт.

Before Engine Serial Number 46344789.

1шт.

87422167

KIT

Piston and Sleeve, Standard, Inc. 1 - 8

6шт.

After Engine Serial Number 46344789.

1шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

A77853

PISTON & RINGS KIT

Inc. 3A, 4, 6 - 8

1шт.

A77973

PISTON & RINGS KIT

Standard, Inc. 3, 3A, 4 - 8

6шт.

Before Engine Serial Number 46324151

1шт.

87428848

PISTON RINGS KIT

Inc. 3 - 8

6шт.

After Engine Serial Number 46324151.

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

3a

NSS

NOT SOLD SEPARAT

Skirt

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

J800912

PISTON RINGS KIT

Standard, Inc. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

9

J934046

PISTON PIN,45mm OD x 91mm L

Piston

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

(.010")

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

(.015")

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

(.020")

1шт.

9a

J924448

SHIM,0.762mm Thk

(.030")

1шт.

9a

J924449

SHIM,1.000mm Thk

(.040")

1шт.

87686998

CONNECTING ROD

Connecting, Inc. 11 - 13

1шт.

87686998R

REMAN-CONNECTING ROD

STX325 AFTER S/N JEE0099501

1шт.

87686998C

CORE-ROD CONNECTING

Return Number

1шт.

11

NSS

NOT SOLD SEPARAT

Rod

1шт.

12

87687031

BUSHING,45.02mm ID x 49.01mm OD x 43mm L

Connecting Rod

1шт.

13

J944679

BOLT

2шт.

15

87443389

BEARING LINER

Standard

6шт.

15

84156219

BEARING LINER

Undersize 0.25 mm

6шт.

15

84156220

BEARING SET

Undersize 0.50 mm

6шт.

15

84156221

BEARING SET

Undersize 0.75 mm

6шт.

15

84156222

BEARING SET

Undersize 1.00 mm

6шт.
