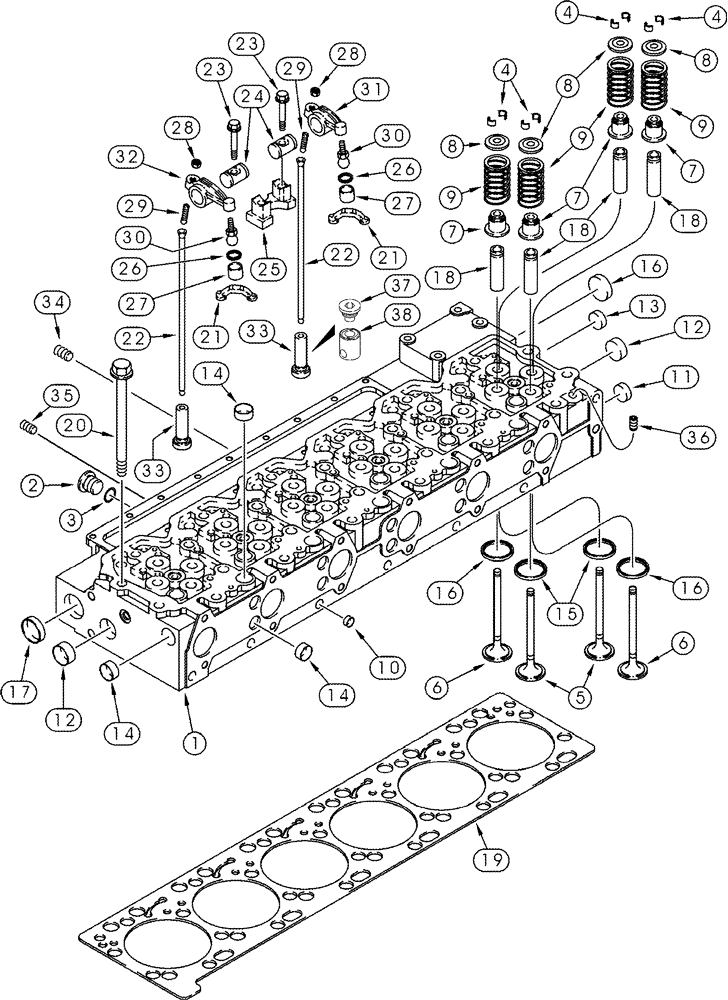

Запчасти Case IH STX325 (02-19) - CYLINDER HEAD VALVE MECHANISM (02) - ENGINE

84181912

HEAD

Cylinder, with Valves, Inc. 1 - 18

1шт.

JR948583

REMAN-CYLINDER HEAD

1шт.

JC948583

CORE-CYLINDER HEAD

Return Part Number

1шт.

1

84181967

CYLINDER HEAD

Cylinder, without Valves, Inc. 2 - 9

1шт.

2

J678923

PLUG,M10 x 1

10 mm, Inc. 3

1шт.

3

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

4

CASJ900250

RETAINER

48шт.

5

J942588

STD INLET VALVE

STD ENGINE INLET VALVE

12шт.

6

J942589

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

7

87352235

SEAL

Valve

24шт.

8

J944452

RETAINER

24шт.

9

87666321

VALVE SPRING

24шт.

10

87666392

PLUG

11.5 mm

6шт.

11

A77590

PLUG

28.7 mm

2шт.

12

J900955

PLUG

10 mm OD

1шт.

13

J907555

PLUG

1/4-18 PT

1шт.

14

J920706

PLUG

22 mm OD

17шт.

15

J940152

INSERT

Intake

12шт.

16

J940153

INSERT

Exhaust

12шт.

17

87344108

PLUG

2шт.

18

87666373

VALVE GUIDE

24шт.

19

J943366

CYLINDER HEAD GASKET,2.11mm Thk

1шт.

20

J917728

BOLT

160 mm

26шт.

21

J943445

CROSSBAR

Cross

12шт.

22

J944174

PUSH ROD

12шт.

STX275

1шт.

22

J944178

PUSH ROD

12шт.

STX325

1шт.

Before Engine Serial Number 46324151

1шт.

22

87435955

PUSH ROD

12шт.

STX325

1шт.

After Engine Serial Number 46324151.

1шт.

23

J943933

SCREW,Hex Flg, M10 x 1.5 x 68mm, Cl 10.9

68 mm

2шт.

24

J941137

SHAFT

Rocker Lever

12шт.

STX275

1шт.

24

87435951

SHAFT

Rocker Lever

12шт.

STX325

1шт.

25

J941140

SUPPORT

6шт.

J942748

ROCKER ARM

Intake, Inc. 26 - 31

6шт.

STX275

1шт.

87435953

ROCKER ARM

Intake, Inc. 26 - 31

6шт.

STX325

1шт.

J942749

ROCKER ARM

Exhaust, Inc. 26 - 30 and 32

6шт.

STX275

1шт.

87435952

ROCKER ARM

Exhaust, Inc. 26 - 30 and 32

6шт.

STX325

1шт.

26

NSS

NOT SOLD SEPARAT

Retainer, Socket

1шт.

27

NSS

NOT SOLD SEPARAT

Socket, Rocker

1шт.

28

A77902

NUT

3/8 - 24 NF

1шт.

29

87495541

ADJUSTMENT SCREW,3/8" - 24 x 27.58mm

Rocker Lever Adjusting

1шт.

STX275

1шт.

29

87436016

ADJUSTMENT SCREW,3/8" - 24 x 27.40mm

Rocker Lever Adjusting

1шт.

STX325

1шт.

30

NSS

NOT SOLD SEPARAT

Ball

1шт.

31

NSS

NOT SOLD SEPARAT

Lever, Intake

1шт.

32

NSS

NOT SOLD SEPARAT

Lever, Exhaust

1шт.

33

J945866

TAPPET

Slider, 6TAA-8304

12шт.

STX275

1шт.

34

A77505

PLUG

3/4 PT, Serial Range: -JEE0102001

4шт.

34

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC, Start Serial: JEE0102001

4шт.

35

A77429

PLUG

1/2 PT, Serial Range: -JEE0102001

7шт.

35

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

, Start Serial: JEE0102001

7шт.

36

A77428

PLUG

1/4 PT

1шт.

37

87435854

GUIDE

Tappet, 6TAA-9004

12шт.

STX325

1шт.

38

87428157

TAPPET

Roller, 27.96 mm, 6TAA-9004

12шт.

STX325

1шт.

Used Before ESN 46324151

1шт.

38

87435851

TAPPET

Roller, 31.25 mm, 6TAA-9004

12шт.

STX325

1шт.

Used After ESN 46324151

1шт.
