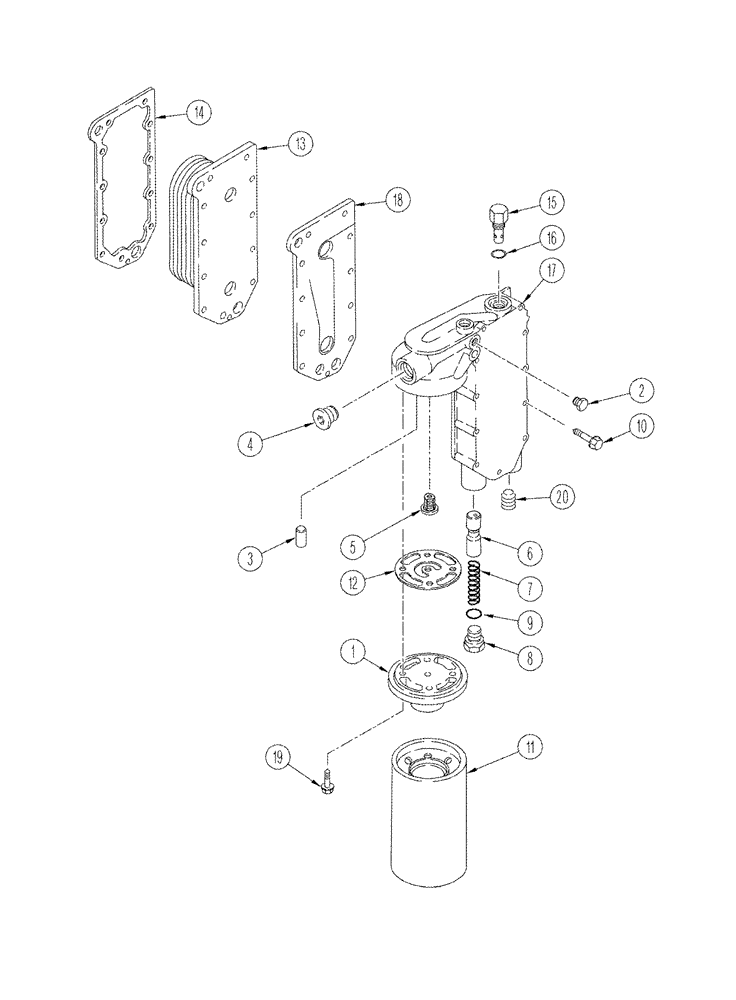

Запчасти Case IH STX325 (02-16) - FILTER AND COOLER OIL (02) - ENGINE

1

J918334

FILTER HEAD

1шт.

2

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

3

A77722

PIN,7.95mm OD x 12.83mm L

1шт.

4

A77505

PLUG

3/4 PT, Serial Range: -JEE0102001

1шт.

4

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC, Start Serial: JEE0102001

1шт.

5

J936365

VALVE PRESSURE RELIE

1шт.

6

J945967

PLUNGER

Oil Pressure Regulator Valve

1шт.

7

A77541

SPRING

1шт.

8

J931084

PLUG

24 mm, Includes 9

1шт.

9

J930911

O-RING,0.07" Thk x 0.8" ID

3/4" ID x 1/16"

1шт.

10

87421315

FLANGE BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

M8 x 65

11шт.

11

366700A1

ENGINE OIL FILTER

1шт.

12

87447957

GASKET,1.2mm Thk

1шт.

13

87453888

CORE, RADIATOR

Support

1шт.

STX275

1шт.

13

87403137

CORE

Support

1шт.

STX325

1шт.

14

J918174

GASKET,0.71mm Thk

1шт.

J934410

BY-PASS VALVE

Inc. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

Valve, Bypass

1шт.

16

A77724

O-RING,3.05mm Thk x 23.62mm ID

1шт.

17

J934159

COVER

1шт.

18

J929011

GASKET,1.19mm Thk

1шт.

19

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

4шт.

20

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.
