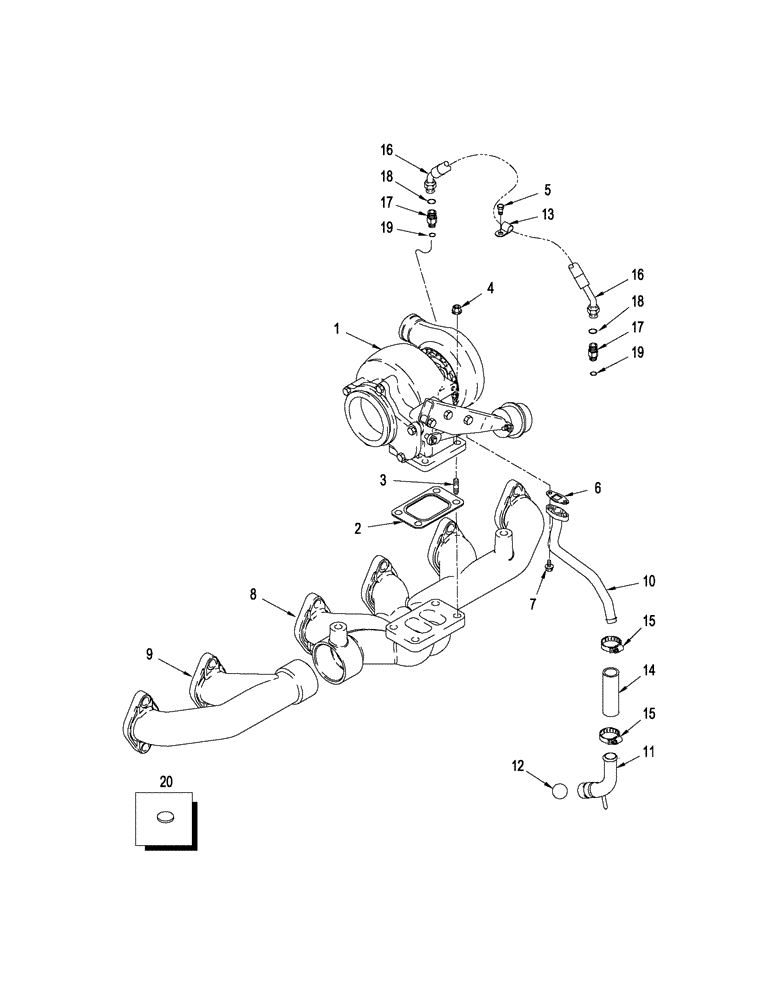

Запчасти Case IH STX325 (02-13) - TURBOCHARGER SYSTEM (02) - ENGINE

1

REF

INSTRUCTION

Turbocharger, See Figure 02-14

1шт.

2

J919369

GASKET,0.5mm Thk

Turbocharger Mounting, Serial Range: -JEE0102292

1шт.

2

J709861

GASKET

Turbocharger Mounting, Start Serial: JEE0102292

1шт.

3

J818823

STUD

M10 x 40

4шт.

4

J818824

FLANGE NUT

M10

4шт.

5

615-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

6

J937706

GASKET,0.79mm Thk

Oil Drain, Serial Range: -JEE0102292

1шт.

6

J519807

GASKET

Oil Drain, Start Serial: JEE0102292

1шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

J943841

EXHAUST MANIFOLD

See Figure 02-12

1шт.

9

J937477

MANIFOLD

Exhaust, See Figure 02-12

1шт.

10

J945108

TUBE

Oil Drain

1шт.

11

J948079

TUBE,0.875" OD

1шт.

Before Engine Serial Number 46325445

1шт.

11

87437056

TUBE,.875" OD

Oil Drain

1шт.

After Engine Serial Number 46325445

1шт.

12

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

13

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

14

J286499

HOSE

76 mm (3 in.)

1шт.

15

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

2шт.

16

J282159

FLEXIBLE HOSE

1шт.

17

J922789

HYD CONNECTOR

Inc. 18 and 19

2шт.

18

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

19

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk)

1шт.

20

J920706

PLUG

22 mm OD

1шт.
