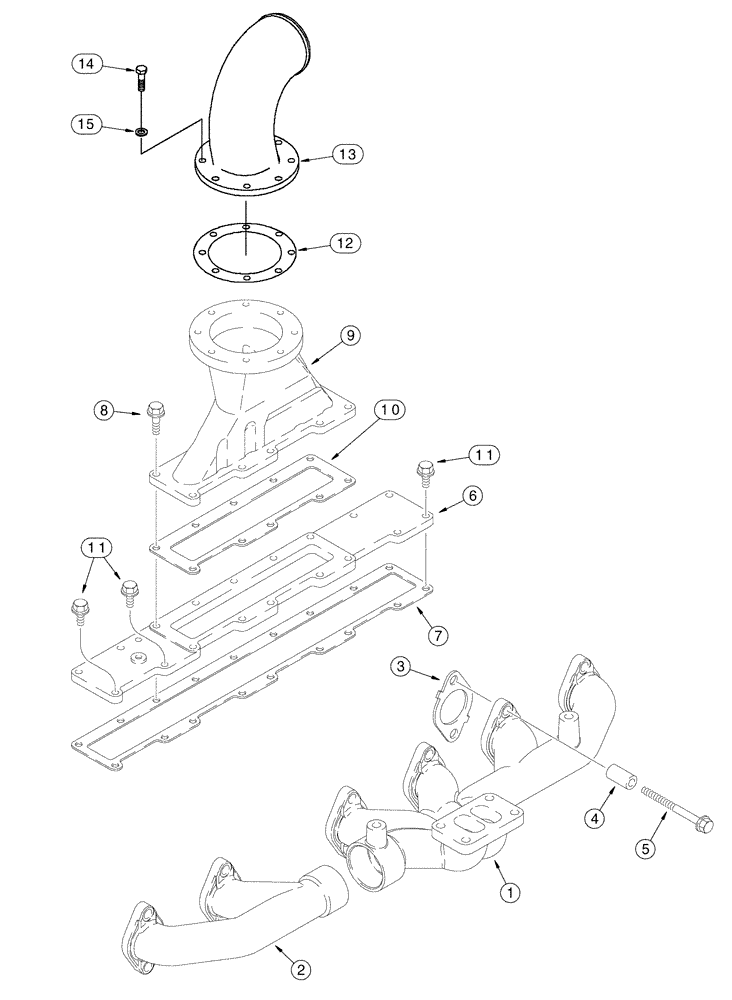

Запчасти Case IH STX325 (02-12) - MANIFOLDS (02) - ENGINE

1

J943841

EXHAUST MANIFOLD

1шт.

2

J937477

MANIFOLD

Exhaust

1шт.

3

84368103

MANIFOLD GASKET,1.08mm Thk

1шт.

4

J945252

SPACER

35 mm (1-3/8 in.)

12шт.

5

J944593

BOLT

M8 x 165

12шт.

6

J944342

COVER

1шт.

7

J944646

MANIFOLD GASKET

1шт.

8

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

10шт.

9

J943613

AIR INTAKE

1шт.

10

87447963

GASKET

Connection

1шт.

11

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

12

J917892

GASKET,0.79mm Thk

Connection

1шт.

13

391692A1

ELBOW

Air Intake

1шт.

14

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.
