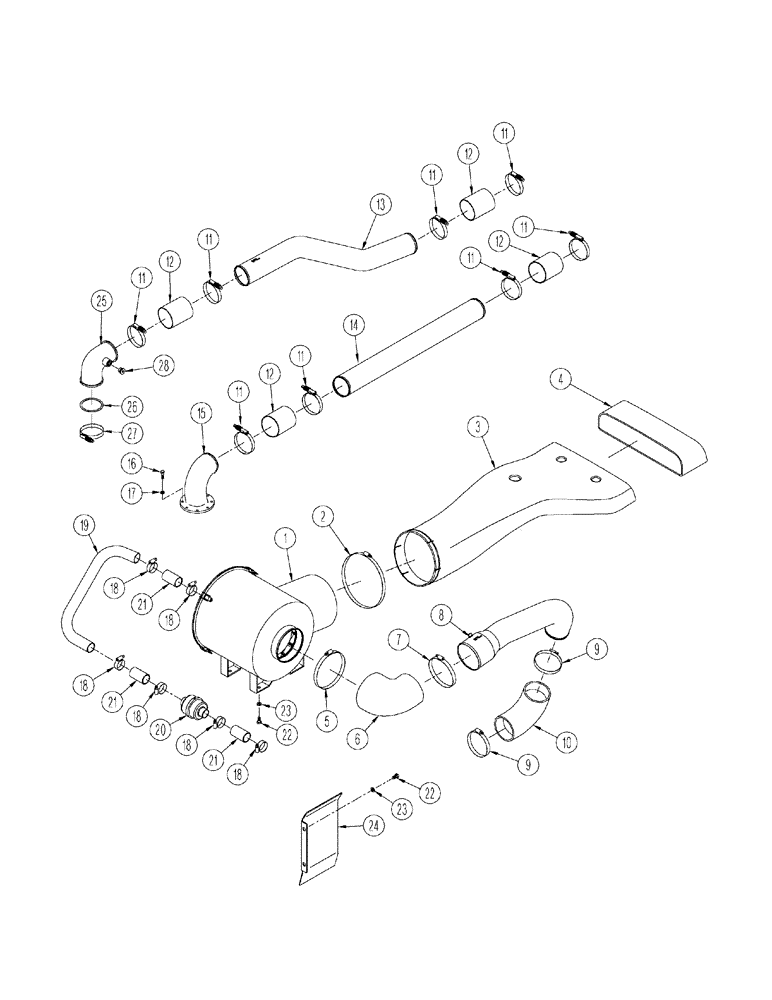

Запчасти Case IH STX325 (02-04) - AIR INTAKE (02) - ENGINE

1

363786A1

AIR CLEANER

See Figure 02-06

1шт.

2

214-31160

HOSE CLAMP,9-1/4" - 10-1/8", HD Worm

1шт.

3

369874A1

DUCT

, Serial Range: -JEE0104001

1шт.

3

87416178

AIR DUCT

, Start Serial: JEE0104001

1шт.

4

341855A2

FOAM INSULATION

1шт.

5

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

1шт.

6

434179A1

ELBOW

90, Reducing, Serial Range: -JEE0104792

1шт.

6

87418236

ELBOW

90, Reducing, Start Serial: JEE0104792

1шт.

7

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

1шт.

8

362622A1

AIR INTAKE TUBE,101.6 mm OD, 511.7, 193.9 mm Length

1шт.

9

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

2шт.

10

335853A1

ELBOW

Air Intake

1шт.

11

L116820

CLAMP,82.55mm - 104.78mm

8шт.

12

329737A1

HOSE

110 mm (4 in.)

4шт.

13

364260A3

AIR INTAKE TUBE,88.9 mm OD, 773.3, 150.1 mm Length

1шт.

14

393911A1

AIR INTAKE TUBE,88.9 mm OD

1шт.

15

391692A1

ELBOW

1шт.

16

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

18

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

6шт.

19

396042A1

TUBE

Aspirator

1шт.

20

307123A1

VALVE

Aspirator Exhaust

1шт.

21

370853A2

HOSE

Aspirator, Cut From 31-2901

3шт.

22

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

6шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

24

396041A1

BRACKET

Support

1шт.

25

J918327

ELBOW

Air Transfer

1шт.

26

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

27

J069053

CLAMP,66.54mm ID

1шт.

28

J008465

PLUG

1шт.
