Запчасти Case IH STX325 (09-35) - HOOD AND SUPPORT (09) - CHASSIS

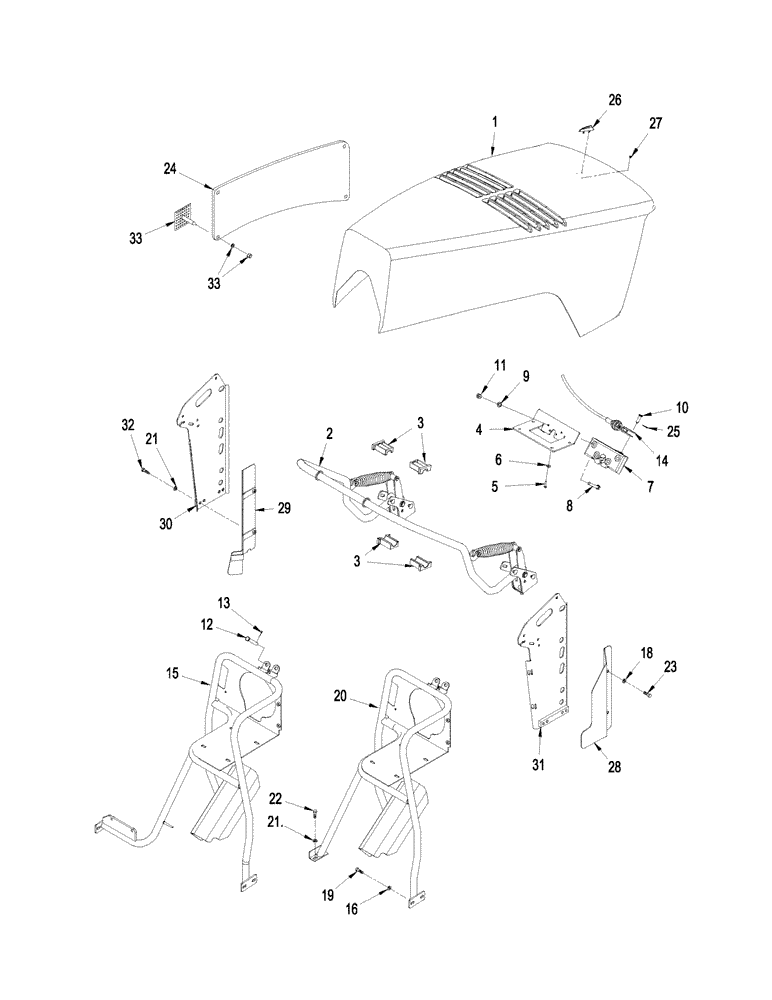

Схема запчастей Case IH STX325 - (09-35) - HOOD AND SUPPORT (09) - CHASSIS
13
5
7
12
2
20
1
14
27
30
29
6
11
19
21
16
22
8
31
10
26
24
15
4
25
18
28
33
23
9
21
33
3
3
32

Артикул

Название

Примечание

Количество

1

330035A7

HOOD

1шт.

2

313975A2

ARM

Lift, Rear, See Figure 09-37

1шт.

3

314842A3

BEARING

4шт.

4

352811A2

PLATE

Hood Latch, Serial Range: -JEE0100144

1шт.

4

445932A1

PLATE

Hood Latch, Start Serial: JEE00100144

1шт.

5

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

5шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

7

318159A1

LATCH

1шт.

8

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

4шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

10

728-620

CLEVIS PIN,M6 x 20

mm M6 x 20

1шт.

11

832-10406

NUT,M6 x 1, Cl 8

4шт.

12

728-16100

CLEVIS PIN,M16 x 100

11/16 x 100

1шт.

13

733-4032

COTTER PIN,M4 x 32

1шт.

14

443297A1

CABLE,2363mm L

1шт.

Also order 445932A1 hood latch mounting plate for tractors BSN JEE0100144.

1шт.

15

369391A5

SUPPORT

1шт.

Without ACCUSTEER

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

18

399576A1

WASHER

4шт.

19

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

20

362943A5

SUPPORT

1шт.

With ACCUSTEER

1шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

9шт.

22

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

24

334209A2

FOAM INSULATION

1шт.

25

733-1610

COTTER PIN,M1.6 x 10

1шт.

26

87353799

GUIDE

Hood Sight

1шт.

27

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

28

389191A2

COVER

Fan, Right-Hand

1шт.

29

389195A2

COVER

Fan, Left-Hand

1шт.

30

339534A3

SUPPORT

Radiator, Left-Hand

1шт.

31

339537A3

SUPPORT

Radiator, Right-Hand

1шт.

32

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

33

399007A1

ANCHOR

Insulation Mounting Kit

1шт.

Выбрано товаров: 37
