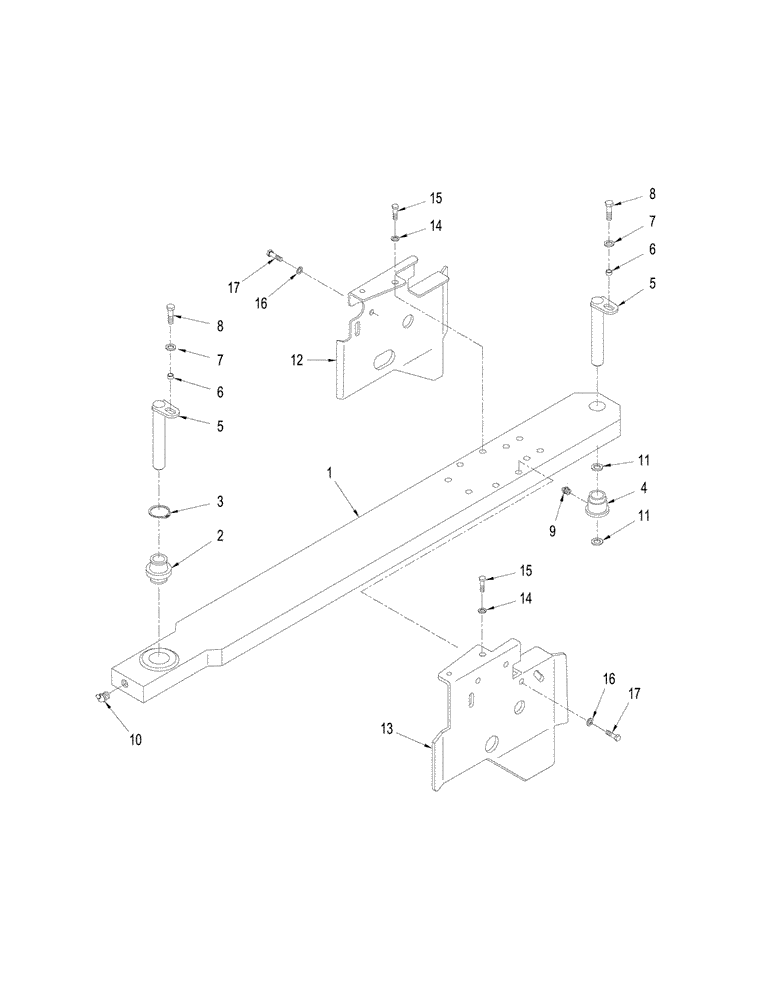

Запчасти Case IH STX325 (09-34) - CENTER LINK (09) - CHASSIS

222241A1

LINK

Inc. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Link

1шт.

2

70-5468T1

SPHERICAL BEARING,1.751" ID x 3.5625" OD x 4"

1шт.

3

101-21354

SNAP RING,#354, Int

Retaining

1шт.

4

435529A1

BUSHING,44.5mm ID x 76.58mm OD x 96.01mm L

1шт.

5

195941A1

PIN,44.37mm OD x 205mm L

2шт.

6

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

8

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

11

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

12

87423436

COVER

Drive Shaft, Left-Hand

1шт.

13

87423437

COVER

Drive Shaft, Right-Hand

2шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

15

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

17

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.
