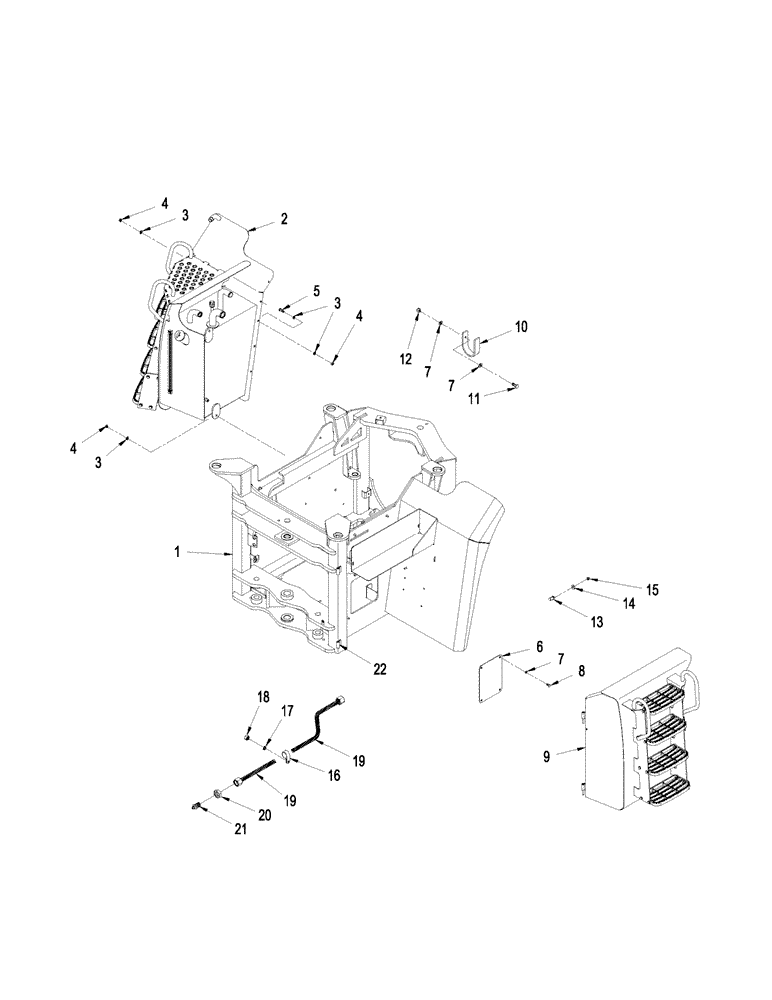

Запчасти Case IH STX325 (09-30[03]) - MIDDLE FRAME, WITH ACCUSTEER (09) - CHASSIS

1

428449A2

FRAME

1шт.

2

NSS

NOT SOLD SEPARAT

Tank Assy, Hydraulic, See Figure 08-41

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

11шт.

4

829-1412

NUT,M12, Cl 10.9

7шт.

5

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

6

431459A1

PLATE

Cover

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

9

NSS

NOT SOLD SEPARAT

Door Assy, Battery, Right-Hand, See Figure 09-31

1шт.

10

431462A1

SHIELD

Driveshaft

1шт.

11

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

328534A1

BOLT

1шт.

14

495-21050

WASHER,7/16"

(1/2 x 1-1/4 x 5/64")

1шт.

15

429-107

NUT,7/16"-14, G8

1шт.

16

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

19

1345098C1

HOSE

1шт.

20

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.
