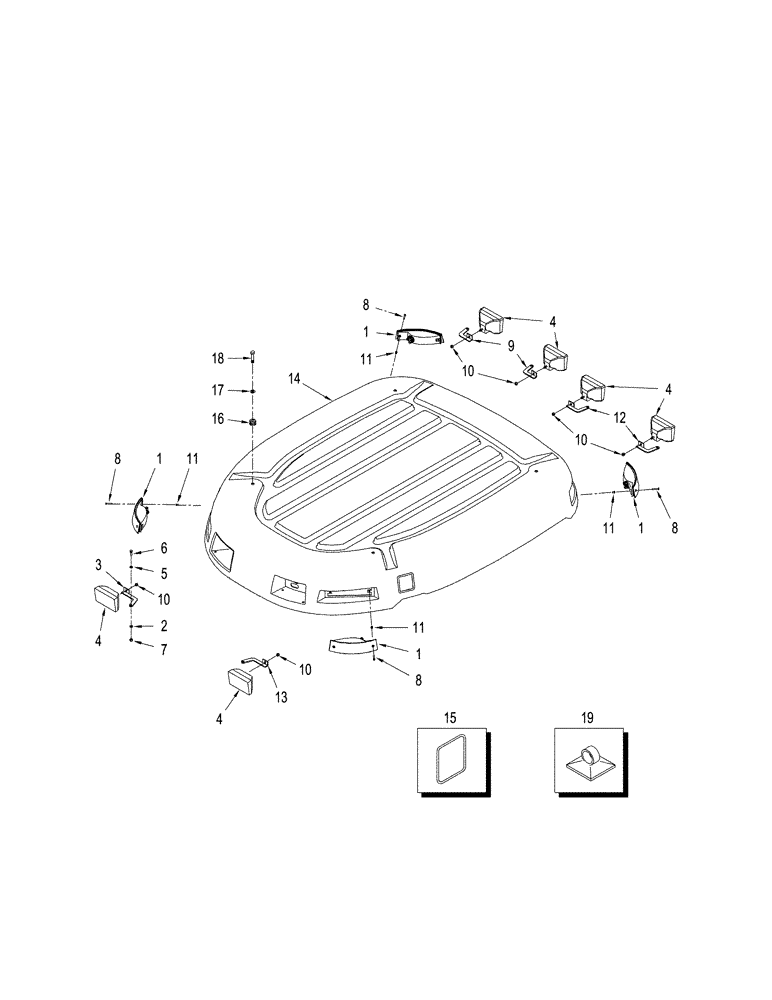

Запчасти Case IH STX325 (09-17) - ROOF ASSEMBLY (09) - CHASSIS

1

320246A1

LAMP

Hazard, See Figure 04-13

4шт.

2

355532A1

WASHER

Nylon

6шт.

3

353561A1

BRACKET

Light, Right-Hand, Front

1шт.

4

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

See Figure 04-13

6шт.

5

895-10008

WASHER,M8 x 16 x 1.6

9 x 16 x 1.6 mm

6шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

8

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

8шт.

9

353563A1

BRACKET

Light, Right-Hand, Rear

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

11

336304A1

INSERT

8шт.

12

353562A1

BRACKET

Light, Left-Hand, Rear

2шт.

13

353560A1

BRACKET

Light, Left-Hand, Front

1шт.

14

87418084

ROOF

1шт.

15

392149A1

DECAL

Cover, without Mirror

2шт.

16

361191A1

GROMMET

4шт.

17

895-15016

WASHER,M16 x 34 x 3

4шт.

18

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

19

435436A1

RUBBER MOUNTING

7шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.
