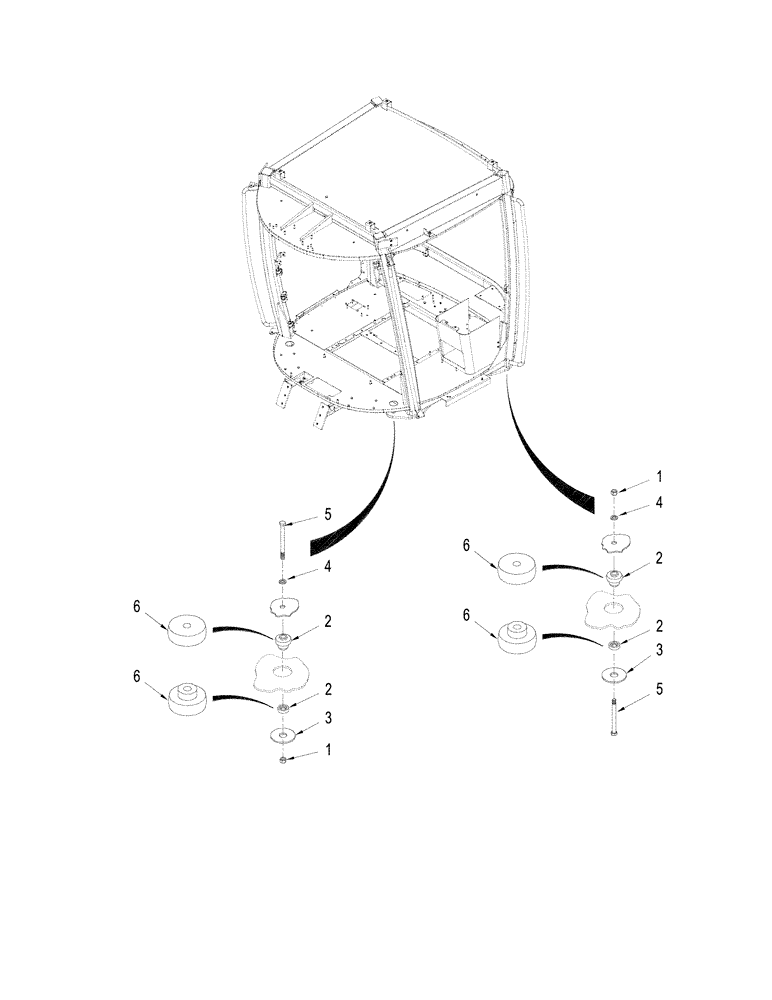

Запчасти Case IH STX325 (09-11) - CAB MOUNTING (09) - CHASSIS

1

832-10424

NUT,M24 x 3, Cl 8

4шт.

2

377678A1

RUBBER MOUNTING

Isolator, Serial Range: -JEE0104001

4шт.

3

371043A1

WASHER

Steel

4шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

4шт.

5

827-24120

BOLT,Hex, M24 x 3 x 120mm, Cl 10.9

, Serial Range: -JEE0104001

4шт.

5

827-24160

BOLT,Hex, M24 x 3 x 160mm, Cl 10.9

, Start Serial: JEE0104001

4шт.

Used with 87422287 Rubber Mounting Isolator

1шт.

6

87422287

RUBBER MOUNTING

Isolator, Start Serial: JEE0104001

4шт.
