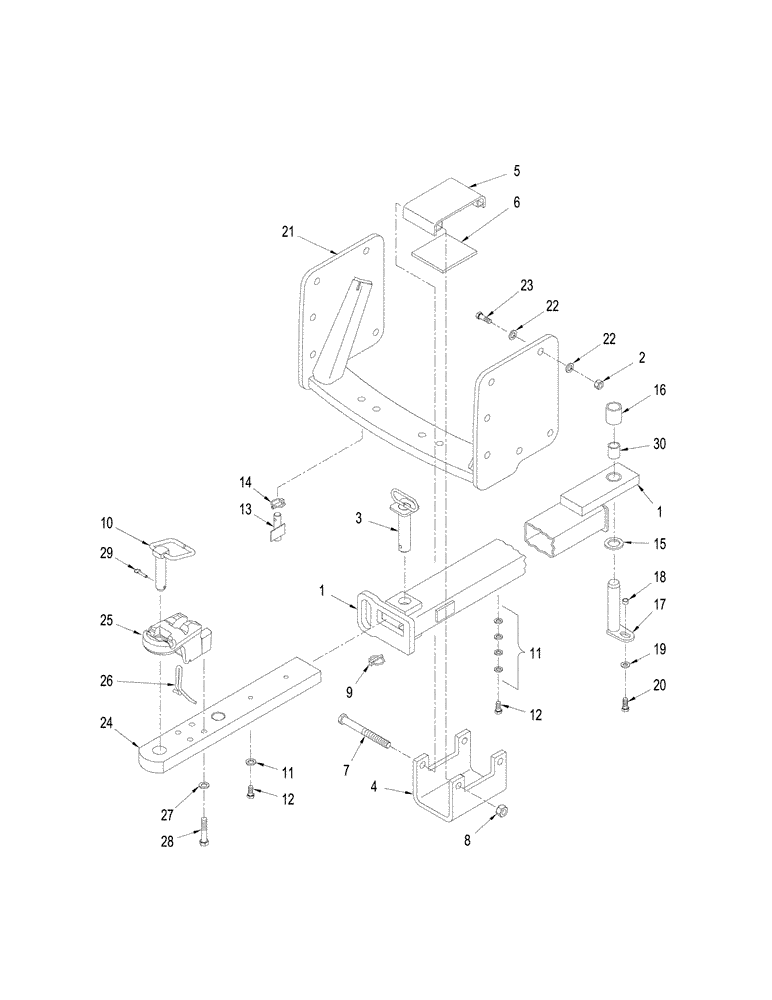

Запчасти Case IH STX325 (09-08) - DRAWBAR - EXTENDABLE (09) - CHASSIS

1

402659A1

DRAWBAR

Receiver

1шт.

2

829-1424

NUT,M24, Cl 10

12шт.

3

403199A1

HITCH PIN,46mm OD x 198mm L

1шт.

4

403194A1

YOKE

1шт.

5

403195A1

COVER

1шт.

6

435498A1

PLASTIC

Cover

1шт.

7

90-7494T1

SCREW,#0 - 8 x 9 1/4""

1 NC x 9-1/4

2шт.

8

429-1016

NUT,1"-8, G8

2шт.

9

19-1041

LOCK PIN,7/16" x 2"

1шт.

10

375720A1

PIN

1шт.

11

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

5шт.

12

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

13

403196A1

PIN

2шт.

14

19-6056

LOCK PIN,7/16" x 1 3/4"

2шт.

15

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

1-3/4 x 2-3/4 x 1/4

1шт.

16

361696A1

SPACER

1шт.

17

195941A1

PIN,44.37mm OD x 205mm L

1шт.

18

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

19

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

20

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

21

87441226

HANGER

1шт.

22

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

24шт.

23

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

12шт.

24

359506A1

DRAWBAR

1шт.

25

375719A1

STRAP

Hammer

1шт.

26

375721A1

PIN

1шт.

27

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

28

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

4шт.

29

393878A1

PIN

1шт.
