Запчасти Case IH STX325 (08-45) - MEGA FLOW HYDRAULICS - AUXILIARY REMOTE MOUNTING (08) - HYDRAULICS

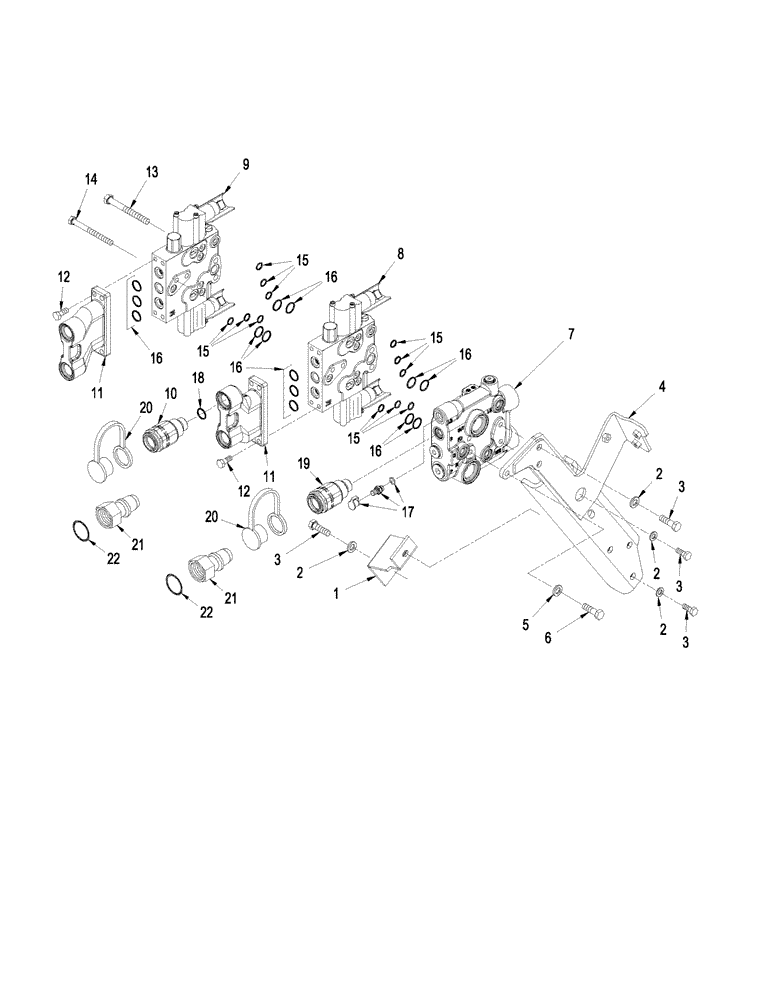

Схема запчастей Case IH STX325 - (08-45) - MEGA FLOW HYDRAULICS - AUXILIARY REMOTE MOUNTING (08) - HYDRAULICS
11
3
12
16
22
21
20
6
2
9
15
5
11
12
18
16
8
16
2
17
16
15
15
4
15
1
3
2
10
19
21
19
3
14
16
2
7
13
22
3

Артикул

Название

Примечание

Количество

1

429731A1

GUSSET

Support

1шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

5шт.

3

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

5шт.

4

429730A2

BRACKET

Mounting

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

6

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

411978A4

HYDRAULIC VALVE

Two Section, Inc. 7 - 16

1шт.

7

418456A4

MANIFOLD

Inlet / Outlet, See Figure: 08-46

1шт.

8

393973A2

VALVE

Auxiliary, Right-Hand, See Figure: 08-30

1шт.

393973A3R

REMAN-HYD VALVE

STX275, STX325 BOTH (AFTER S/N JEE0099501) BTW JEE0099501 & Z6F100023, Reman For New P/N: 393973A2

1шт.

393973A3C

CORE-VALVE HYD

Return Number

1шт.

9

292295A3

VALVE

Auxiliary, Main, See Figure: 08-30

1шт.

292295A3R

REMAN-HYD VALVE

STX275, STX325 all (AFTER S/N JEE0099501)

1шт.

292295A3C

CORE-VALVE HYD

Return Number

1шт.

418704A2

COUPLING

Inc. 10, 11

2шт.

10

84318358

COUPLING

2шт.

11

418705A1

COUPLING

1шт.

12

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

13

828-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

2шт.

14

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

1шт.

15

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

12шт.

16

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

12шт.

17

358968A1

FITTING

Diagnostics

1шт.

18

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

19

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

Coupler, Auxiliary, 3/4"

1шт.

19

445015A1

SEAL KIT

For Ref 19

1шт.

20

334216A1

CAP

Dust

5шт.

21

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

Hydraulic, Inc. 22

2шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 29
