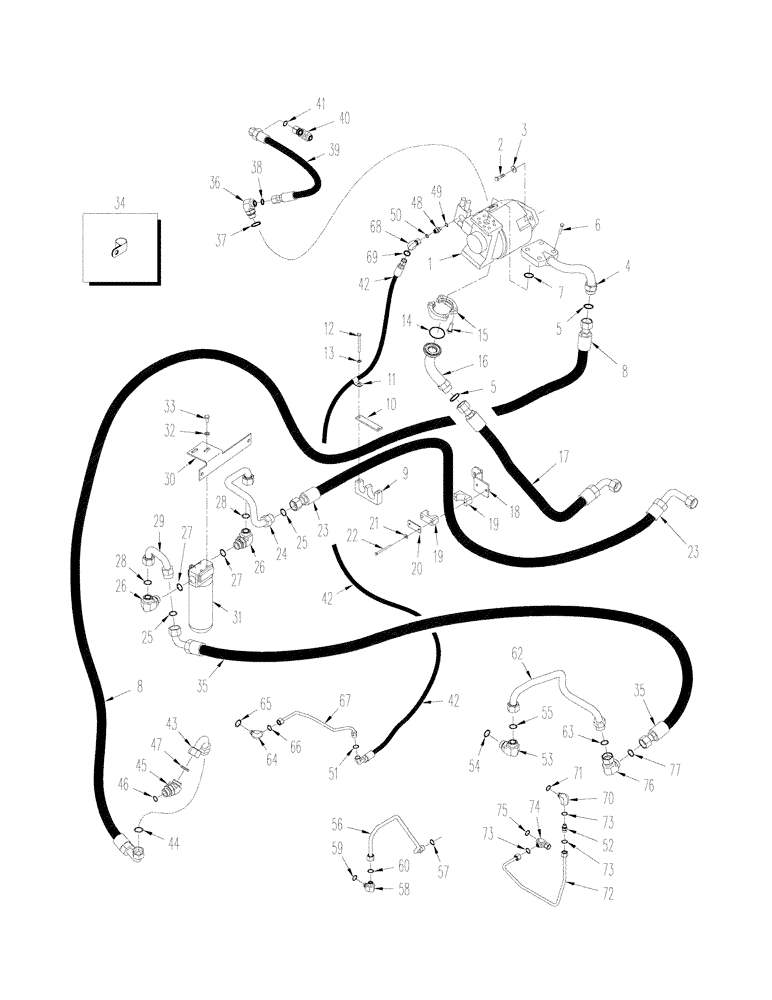

Запчасти Case IH STX325 (08-44) - HYDRAULICS-MEGA FLOW CIRCUITRY (08) - HYDRAULICS

1

407476A1

HYDRAULIC PUMP

See Figure: 08-49

1шт.

1

407476A1C

CORE-HYDRAULIC PUMP

1шт.

1

407476A1R

REMAN-HYD PUMP

1шт.

2

627-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9, Full Thd

Hex, M16 x 55, 10.9, Full Thd

2шт.

With Manual Shift Transmission

1шт.

2

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

With Power Shift Transmission

1шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

4

414792A2

BRACKET

1шт.

6

461-33832

HEX SOC SCREW,3/8"-16 x 2"

Socket, 3/4" x 2"

4шт.

7

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

90 Duro, 1.296" ID x .139" Thk

1шт.

8

441342A1

HOSE

2692 mm (106 in)

1шт.

9

414429A2

CLAMP BRACKET

1шт.

10

414856A1

PLATE

1шт.

11

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

(15.9 mm)

1шт.

12

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

2шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

14

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

15

A14141

FLANGE

Split, 2

2шт.

16

414077A1

TUBE

1шт.

17

441343A1

HOSE

756 mm (30 in)

1шт.

18

433047A2

BRACKET

1шт.

19

429384A1

CLAMP,40mm ID x 30mm W x 71mm L

2шт.

20

429414A1

COVER PLATE,70mm L x 30mm W x 3mm Thk

1шт.

21

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

22

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

2шт.

23

441344A1

HOSE

1626 mm (64 in)

1шт.

24

419661A1

TUBE

1шт.

26

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

M33 orb x 1 fc sl, Inc. 27, 28

3шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

29

419655A1

TUBE

1шт.

30

417856A2

BRACKET

Filter

1шт.

31

414219A1

FILTER

See Figure: 08-48

1шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

33

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

34

515-23254

CLAMP,1", Insul, 3/8" Bolt

(25.4 mm)

1шт.

35

441345A1

HOSE

1956 mm (77 in)

1шт.

36

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

90, 5/8" orb x 5/8" fc sll, Inc. 37, 38

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

39

442745A1

HOSE

737 mm (29 in)

1шт.

40

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

M16 fc sl x swl, Inc. 41

1шт.

41

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

42

441346A1

HOSE

2565 mm (101 in)

1шт.

43

429941A2

TUBE

1шт.

45

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 46, 47

1шт.

46

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

48

1957867C1

FILTER SCREEN

1/4 orb x 3/8 fc sl, Inc. 49, 50

1шт.

49

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

50

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

51

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

52

334923A1

HYD CONNECTOR,M14 x 1.5 ORB x 11/16" - 16 ORFS

1шт.

53

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 54, 55

3шт.

54

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

56

445701A1

TUBE

1шт.

57

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

58

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

90, M14 orb x 12 fc sl, Inc. 59, 60

1шт.

59

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

60

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

61

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

1шт.

62

441946A1

TUBE

1шт.

64

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 65, 66

1шт.

65

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

67

441944A1

TUBE

1шт.

68

441925A1

ELBOW

90, 7/16 fc sl, Inc. 69

1шт.

69

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

70

428078A1

ELBOW

90, M14 orb, Inc. 71

1шт.

71

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

72

430536A1

TUBE

1шт.

73

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

74

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

3/8" fc sl x swl, Inc. 75

1шт.

75

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

76

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

1 fc sl x swl, Inc. 77

1шт.

78

416271A2

TUBE

Pump Supply

1шт.

5

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

25

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

28

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

44

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

47

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

55

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

63

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

66

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

77

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
