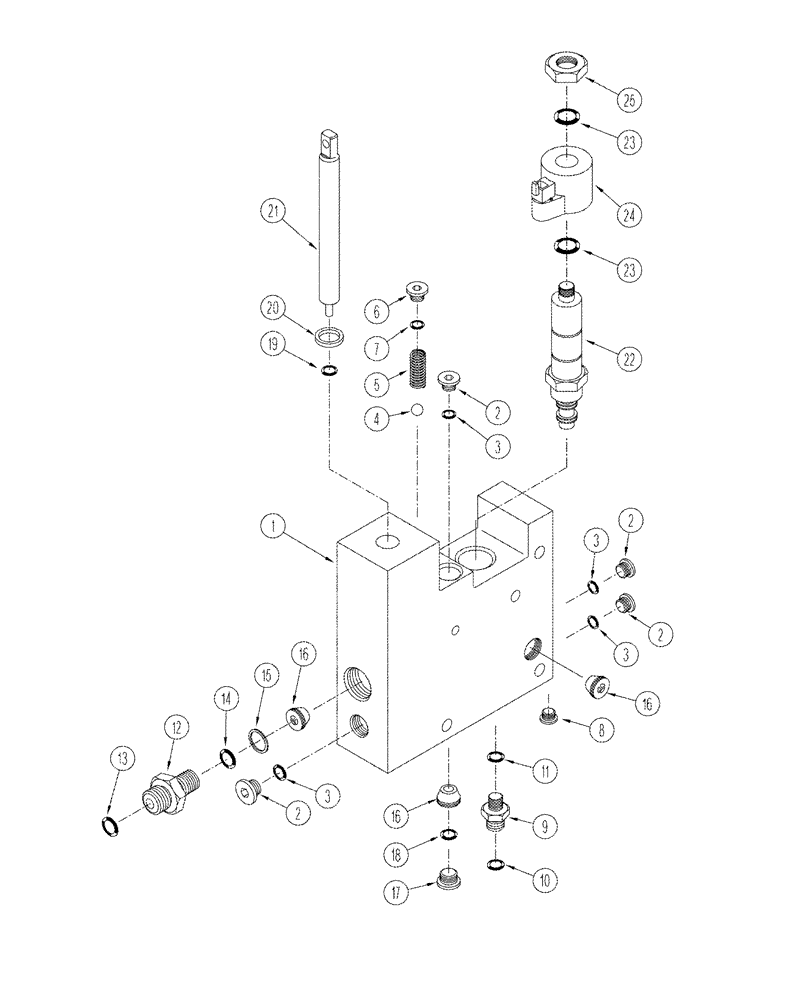

Запчасти Case IH STX325 (08-40) - TOW BLOCK VALVE ASSEMBLY (08) - HYDRAULICS

319774A4

VALVE

Tow Block, Inc. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Includes 3

4шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

4

511-1060

BALL,6mm Dia

1шт.

5

352025A1

SPRING

1шт.

6

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

M12 or x 13, Incl. 7

1шт.

7

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

8

282839A1

PLUG,8mm OD x 8.5mm L

M8

1шт.

9

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 10 and 11

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

12

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 13 and 14

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

15

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

16

1994615C2

VALVE, CHECK

3шт.

17

221579A1

PLUG,M22 x 1.5 ORB

Incl. 18

1шт.

18

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

19

238-5208

O-RING,0.139" Thk x 0.609" ID, -208, Cl 5, 75 Duro

1шт.

20

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

1шт.

21

326300A1

SPOOL

1шт.

87675608

SOLENOID

Inc. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

Solenoid

1шт.

23

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

24

NSS

NOT SOLD SEPARAT

COIL

1шт.

25

252462A2

NUT

1шт.
