Запчасти Case IH STX325 (08-39) - REGULATOR VALVE ASSEMBLY (08) - HYDRAULICS

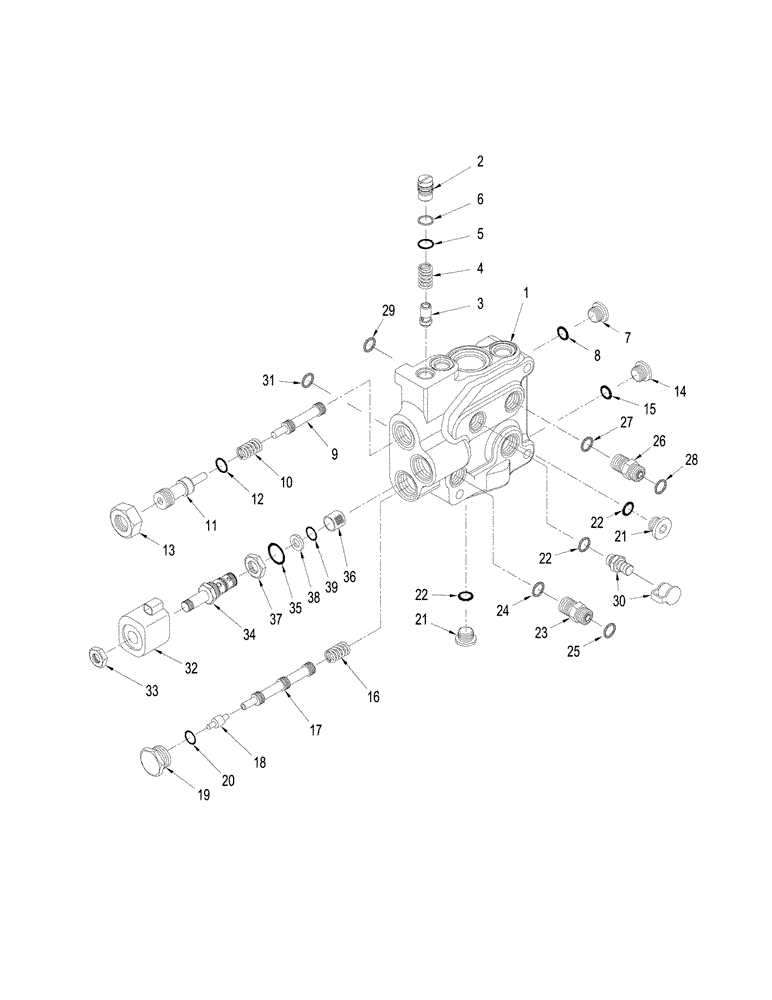

Схема запчастей Case IH STX325 - (08-39) - REGULATOR VALVE ASSEMBLY (08) - HYDRAULICS
36
1
28
21
13
15
21
22
17
29
33
31
32
8
23
39
9
34
12
22
26
14
16
24
7
5
38
27
3
19
37
18
35
6
22
11
30
2
10
25
20
4

Артикул

Название

Примечание

Количество

411104A2

VALVE

Inc. 1 - 36

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

1542563C1

KIT

Inc. 2 - 6

1шт.

2

1994580C1

PLUG

1шт.

3

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

4

1994581C1

SPRING,6.1mm OD x 31.1mm L

1шт.

5

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

6

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

7

221579A1

PLUG,M22 x 1.5 ORB

Incl. 8

1шт.

8

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

9

119182A3

SPOOL

1шт.

10

176312A1

SPRING

1шт.

11

313941A1

PLUG

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

344573A1

PLUG

Lube, Inc. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

Plug

1шт.

15

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

16

330105A1

SPRING

1шт.

17

330103A1

SPOOL

1шт.

18

330104A1

PIN

1шт.

19

9841223

PLUG,1-1/16" - 12 ORB

Incl. 20

1шт.

21

221578A1

PLUG,M18 x 1.5 ORB

Includes 22

3шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

339487A2

HYD CONNECTOR

Orificed, Inc. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

Adapter

1шт.

24

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

26

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 27, 28

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

30

358968A1

FITTING

Diagnostic Fitting, Inc. 22

1шт.

31

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

87330331

SOLENOID VALVE

Inc. 32 - 39

1шт.

32

298614A1

SOLENOID

1шт.

33

NSS

NOT SOLD SEPARAT

Nut

1шт.

34

NSS

NOT SOLD SEPARAT

Valve, Cartridge, 2 gpm

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

NSS

NOT SOLD SEPARAT

Filter, Screen

1шт.

37

87330336

SOLENOID

Backup

1шт.

38

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

Backup

1шт.

39

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Выбрано товаров: 44
