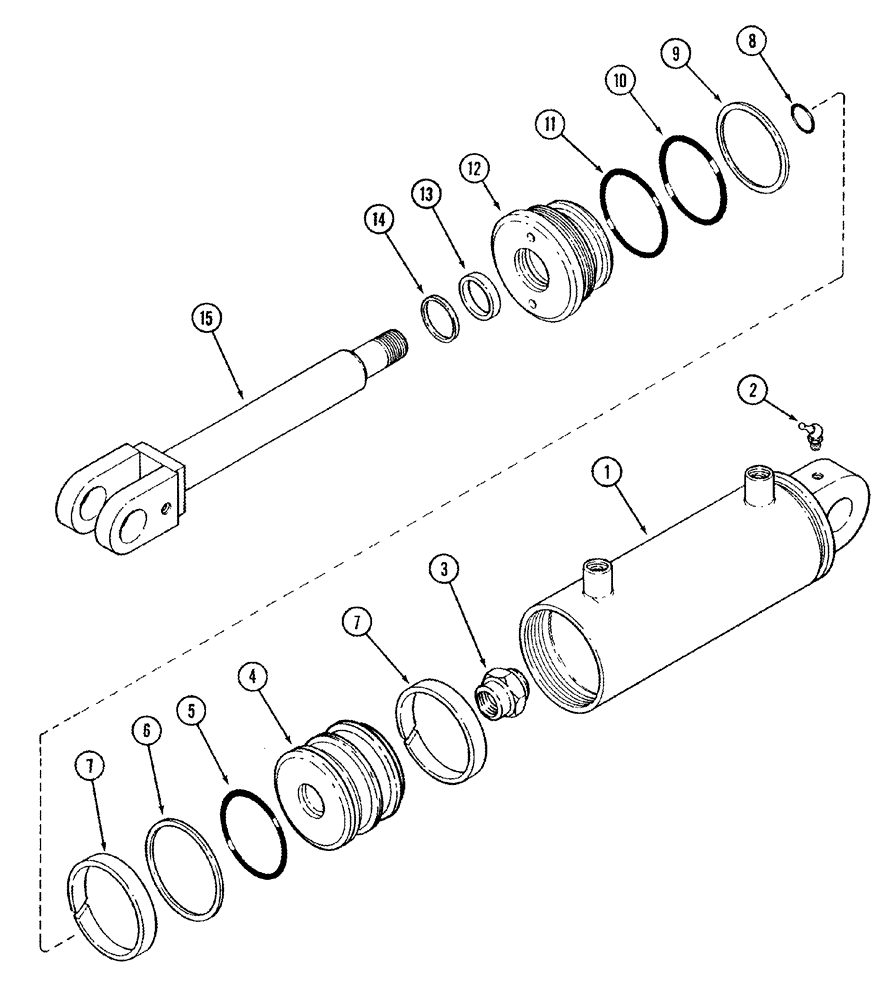

Запчасти Case IH STX325 (08-37) - CYLINDER ASSEMBLY - THREE POINT HITCH (08) - HYDRAULICS

407145A1

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 293.29mm Stroke

Lift, Inc. 1 - 15

1шт.

407145A1R

Reman Cyl Lift, Inc. 1 - 15

REMAN-HYD CYLINDER

1шт.

407145A1C

Return Number

CORE-HYD CYLINDER

1шт.

1

387528A1

JACK BODY

Barrel

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Grease

1шт.

3

232-46320

LOCK NUT,1 1/4"-12, GC

1шт.

4

387527A1

PISTON

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

387532A1

CYLINDER END CAP

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, U-Cup

1шт.

14

NSS

NOT SOLD SEPARAT

Wiper

1шт.

15

387530A1

PISTON ROD

1шт.

387500A1

SEAL KIT

Inc. 6 - 11, 13 & 14

1шт.
