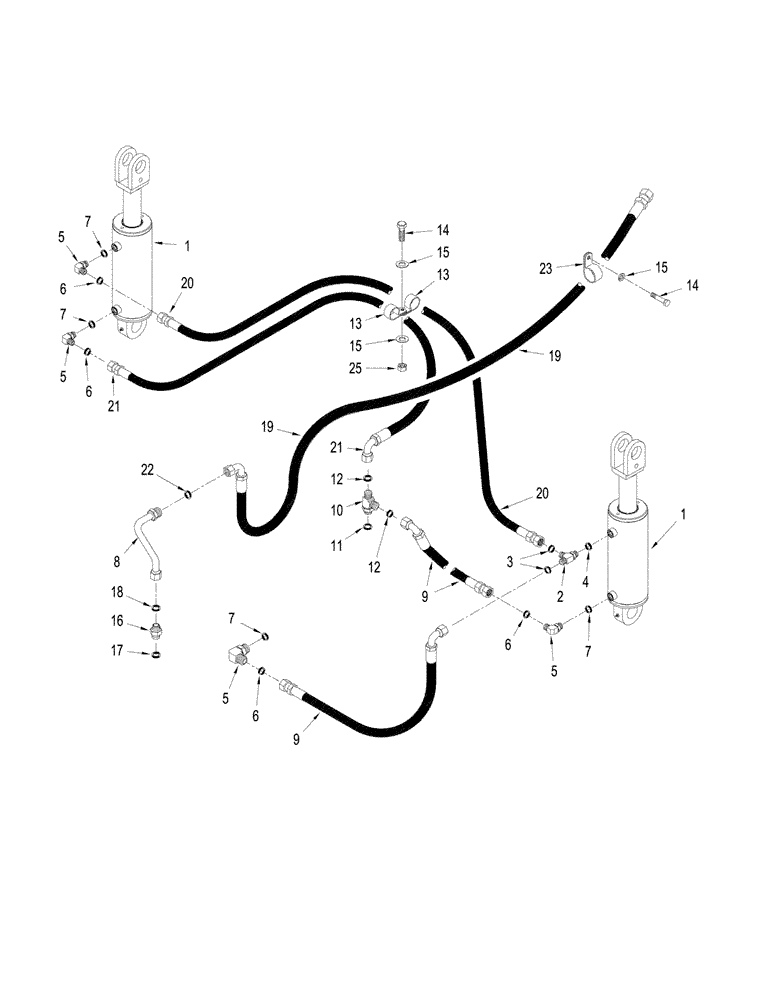

Запчасти Case IH STX325 (08-36) - THREE POINT HITCH HYDRAULICS - ELECTRONIC CONTROLLED HITCH SYSTEM (08) - HYDRAULICS

1

407145A1

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 293.29mm Stroke

See Figure 08- 37

2шт.

407145A1R

Reman Cyl See Figure 08- 37

REMAN-HYD CYLINDER

2шт.

407145A1C

Return Number

CORE-HYD CYLINDER

1шт.

2

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 3 & 4

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

4

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

5

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 6 and 7

4шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

8

403207A1

TUBE

1шт.

9

360496A1

HOSE ASSY.

Cylinder Supply, 505 mm (20 in.)

2шт.

10

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 11 & 12

1шт.

11

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

4шт.

14

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

16

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 17 & 18

1шт.

17

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

371018A2

HOSE ASSY.

Return, 3166 mm (124-1/2 in.)

1шт.

20

360495A2

HOSE ASSY.

Return, 1275 mm (50 in.)

1шт.

21

360497A3

HOSE ASSY.

Pressure Line, 1380 mm (54 in.)

1шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

24

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.
