Запчасти Case IH STX325 (08-31) - HITCH VALVE ASSEMBLY - ELECTRONIC CONTROLLED (08) - HYDRAULICS

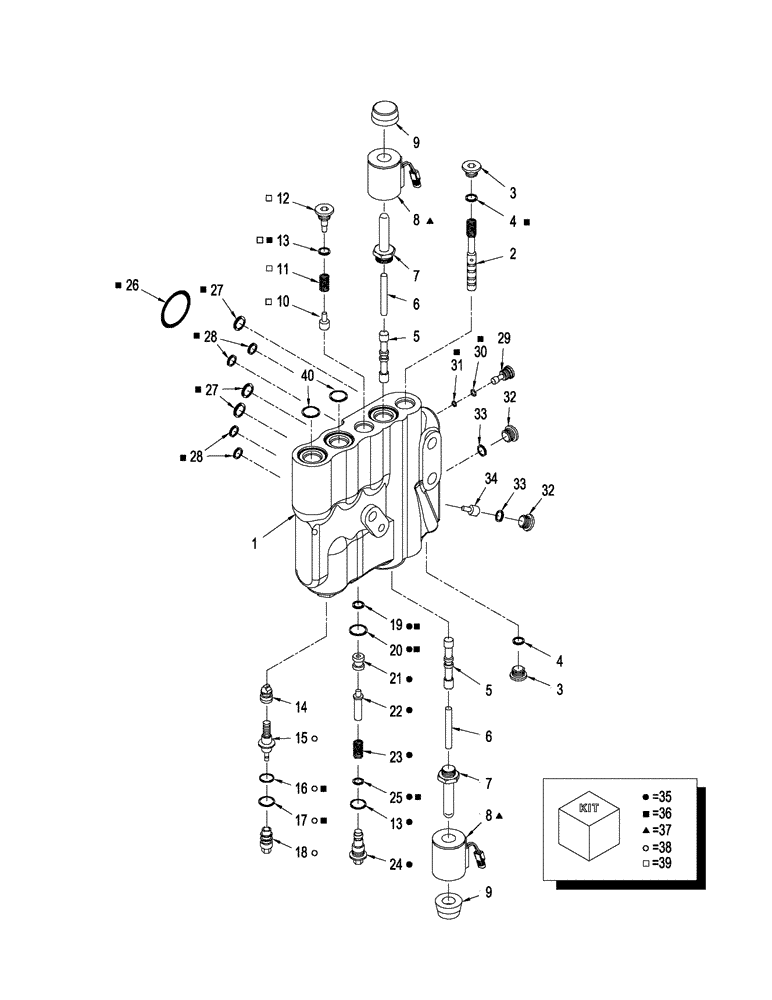

Схема запчастей Case IH STX325 - (08-31) - HITCH VALVE ASSEMBLY - ELECTRONIC CONTROLLED (08) - HYDRAULICS
28
36
7
39
24
22
39
35
13
25
12
6
23
2
20
37
35
8
28
18
35
38
35
36
32
16
36
37
39
39
36
38
8
36
5
35
21
36
35
9
30
38
11
35
1
15
36
17
19
36
36
38
36
39
3
39
36
36
37
14
32
27
36
36
29
4
4
3
35
31
36
35
37
35
34
36
9
6
10
13
33
38
27
26
7
33
38
5
40

Артикул

Название

Примечание

Количество

84164343

VALVE

Inc. 1 - 39; Move tie bolt to location that matches hitch valve.

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 4

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

5

188104A1

SPOOL

Pilot

2шт.

6

188116A1

PIN,3.25mm OD x 39.93mm L

2шт.

7

188117A1

CARTRIDGE,72.25mm OAL

Override

2шт.

8

NSS

NOT SOLD SEPARAT

Solenoid, Coil

2шт.

9

188106A1

NUT

2шт.

10

NSS

NOT SOLD SEPARAT

Poppet, LDC

1шт.

11

NSS

NOT SOLD SEPARAT

Spring, Compression

1шт.

12

NSS

NOT SOLD SEPARAT

Plug

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

14

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

15

NSS

NOT SOLD SEPARAT

Stem, Servo

1шт.

16

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

17

238-5023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

1шт.

18

188111A1

PLUG,1-1/16" - 18

Meter Out

1шт.

373756A1

KIT

Relief Valve, Inc. 19 - 25

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

20

373767A1

RING,Split, 83.06mm ID

1шт.

21

NSS

NOT SOLD SEPARAT

Seat

1шт.

22

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

23

NSS

NOT SOLD SEPARAT

Spring, Compression

1шт.

24

NSS

NOT SOLD SEPARAT

Plug

1шт.

25

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

26

238-5142

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

1шт.

27

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3шт.

28

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

5шт.

29

373761A1

PLUG

1шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

31

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

2шт.

32

86529630

PLUG,Hex Soc, 3/8"-24 ORB

2шт.

33

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

2шт.

34

373758A1

VALVE

Load Sense

1шт.

35

373756A1

KIT

Relief Valve, Inc. 19 - 25

1шт.

36

373757A1

SEAL KIT

Seal

1шт.

37

243254A1

KIT

Solenoid

2шт.

38

87430152

SERVICE KIT

Meter Out

1шт.

39

87373591

KIT

Valve Load Dump Check

1шт.

40

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

Выбрано товаров: 42
