Запчасти Case IH STX325 (08-27) - REMOTE VALVE ASSEMBLY - ELECTRONIC REMOTE (08) - HYDRAULICS

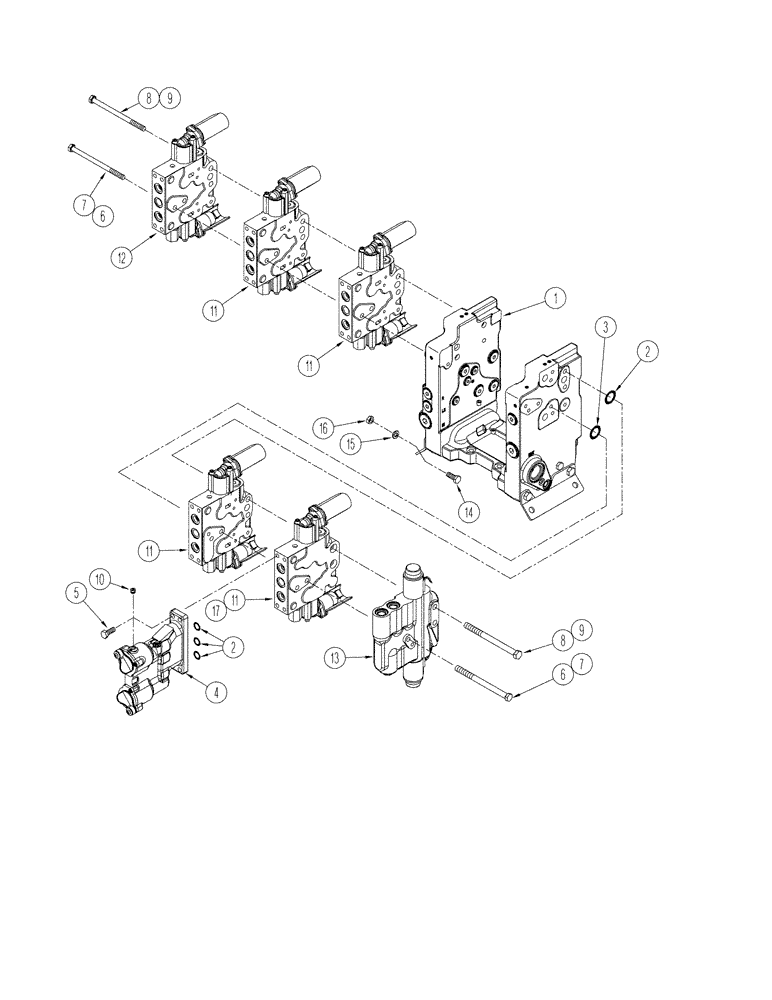

Схема запчастей Case IH STX325 - (08-27) - REMOTE VALVE ASSEMBLY - ELECTRONIC REMOTE (08) - HYDRAULICS
10
8
6
1
7
7
8
11
16
4
17
14
9
11
12
3
9
2
6
15
13
11
11
2
5

Артикул

Название

Примечание

Количество

1

404434A1

VALVE

Manifold, See Figure 08-25

1шт.

2

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

3

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

4

435375A1

VALVE

See Figure 08-28

1шт.

5

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

20шт.

6

828-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

1шт.

7

828-10160

BOLT,Hex, M10 x 1.5 x 160mm, Cl 10.9

1шт.

8

828-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

1шт.

9

828-12160

BOLT,Hex, M12 x 1.75 x 160mm, Cl 10.9

1шт.

10

86637724

PLUG,1/8" - 27 NPT

5шт.

11

292295A3

VALVE

Main, Four & Five-Stack, See Figure 08-30

1шт.

292295A3R

REMAN-HYD VALVE

STX275, STX325 all (AFTER S/N JEE0099501)

1шт.

292295A3C

CORE-VALVE HYD

Return Number

1шт.

12

393972A3

VALVE

Auxiliary, Left-Hand, See Figure 08-30

1шт.

393972A3R

REMAN-HYD VALVE

STX275, STX325 all (AFTER S/N JEE0099501)

1шт.

393972A3C

CORE-VALVE HYD

Return Number

1шт.

13

84164343

VALVE

Hitch, See Figure 08-31; Move tie bolt to location that matches hitch valve.

1шт.

14

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

17

393973A1

VALVE

Auxiliary, Right-Hand, See Figure 08-30

1шт.

393973A3R

REMAN-HYD VALVE

"STX275,STX325 BOTH(AFTER S/N JEE0099501) BTW JEE0099501 & Z6F100023 REMOTE VALVE ,\nReman For New P/N: 393973A1"

1шт.

393973A3C

CORE-VALVE HYD

Return Number

1шт.

365947A1

KIT

Remote Valve, Five-Stack, See Figure 08-24, Inc. 2 - 5, 7, 9 - 11

1шт.

292295A3R

REMAN-HYD VALVE

STX275, STX325 All (AFTER S/N JEE0099501), Reman For New P/N 365947A1

1шт.

292295A3C

CORE-VALVE HYD

Return Number

1шт.
