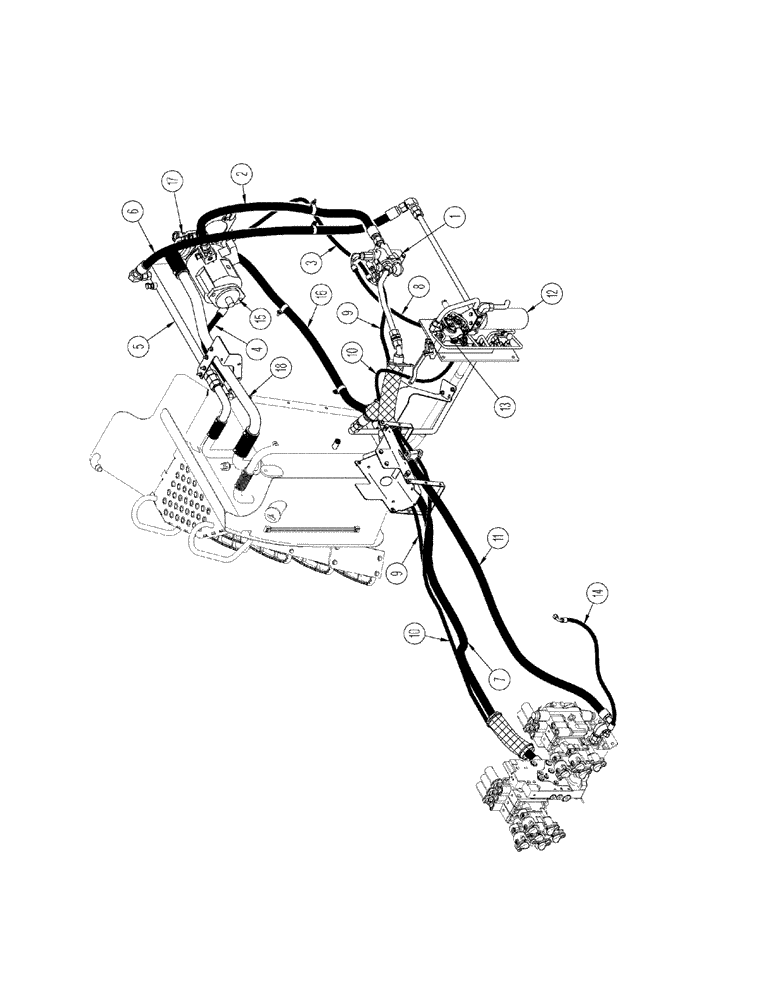

Запчасти Case IH STX325 (01-07) - PICTORIAL INDEX - CHARGE PUMP AND AUXILIARY REMOTE CIRCUIT WITH HIGH OUTPUT HYDRAULICS (00) - PICTORIAL INDEX

1

VALVE Priority, See Figure 08-23

1шт.

2

HOSE Priority Valve Supply, See Figures 08-19 (01), 08-19 (02)

1шт.

3

HOSE Pump Load Sense, See Figures 08-19 (01), 08-19 (02)

1шт.

4

HOSE Case Drain, See Figures 08-19 (01), 08-19 (02)

1шт.

5

TUBE Charge Pressure Supply, See Figures 08-19 (01), 08-19 (02)

1шт.

6

HOSE Return, See Figures 08-19 (01), 08-19 (02)

1шт.

7

HOSE Auxiliary Remote Valve Supply, See Figures 08-12, 08-13

1шт.

8

HOSE Priority Valve Return, See Figures 08-19 (01), 08-19 (02)

1шт.

9

HOSE Auxiliary Remote Load Sense, See Figures 08-12, 08-13

1шт.

10

HOSE Gear Pump Pilot Pressure, Electronic Remotes, See Figure 08-13

1шт.

11

HOSE Auxiliary Remote Return, See Figures 08-12, 08-13

1шт.

12

FILTER, See Figure 08-04

1шт.

13

VALVE Regulator, See Figure 08-39

1шт.

14

HOSE Pilot Pressure, Return To Rear Axle, See Figures 08-07, 08-07 (01)

1шт.

15

PUMP Piston, See Figure 08-20

1шт.

16

HOSE Charge Pump Outlet, See Figures 08-19 (01), 08-19 (02)

1шт.

17

PUMP Gear, See Figure 08-22

1шт.

18

TUBE Gear Pump Supply, See Figures 08-19 (01), 08-19 (02)

1шт.
