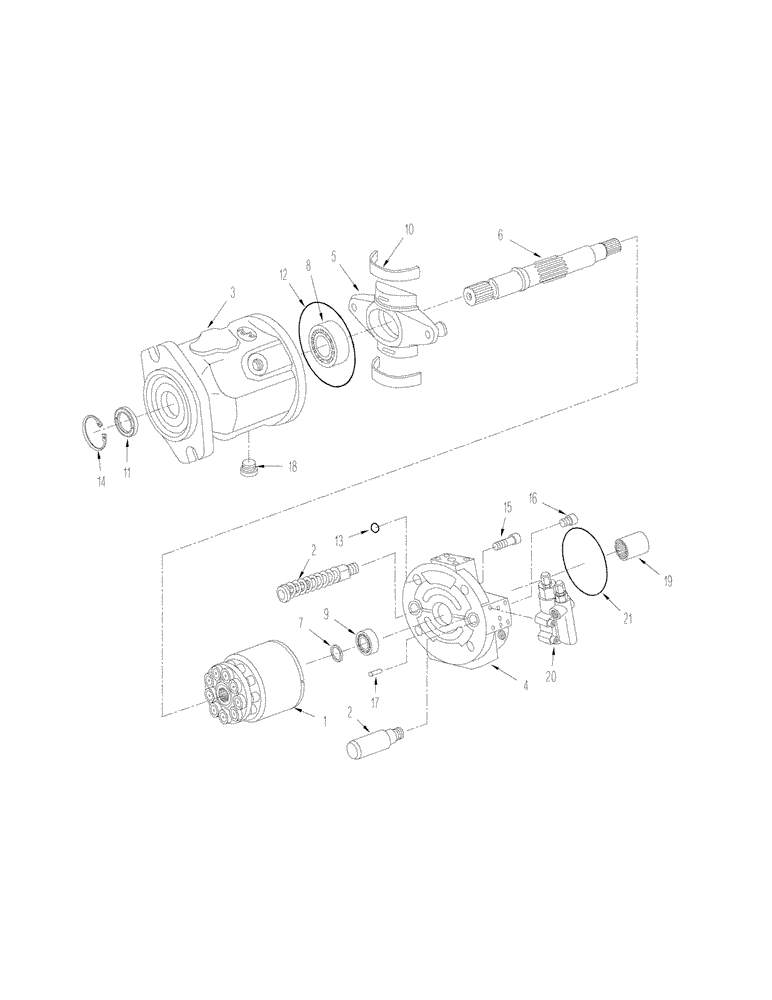

Запчасти Case IH STX325 (08-21) - HIGH OUTPUT HYDRAULICS - PISTON PUMP ASSEMBLY (08) - HYDRAULICS

192296A3

PUMP

Inc. 1 - 20

1шт.

87308196R

REMAN-HYD PUMP,100 CC

Reman for New PN 192296A3

1шт.

87308196C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Cylinder Assy

1шт.

2

NSS

NOT SOLD SEPARAT

Piston Assy

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

4

NSS

NOT SOLD SEPARAT

Block

1шт.

5

NSS

NOT SOLD SEPARAT

Plate, Swash

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft

1шт.

7

NSS

NOT SOLD SEPARAT

Spacer

1шт.

8

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

10

NSS

NOT SOLD SEPARAT

Bearing, Support

2шт.

11

NSS

NOT SOLD SEPARAT

Seal

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

14

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

15

NSS

NOT SOLD SEPARAT

Screw

4шт.

16

9841223

PLUG,1-1/16" - 12 ORB

1шт.

17

NSS

NOT SOLD SEPARAT

Pin, Dowel

1шт.

18

NSS

NOT SOLD SEPARAT

Plug

2шт.

19

NSS

NOT SOLD SEPARAT

Coupling

1шт.

20

352875A2

VALVE

1шт.

21

436514A1

O-RING

1шт.

388292A1

SEAL KIT

Inc. 11 - 13 and 21

1шт.
