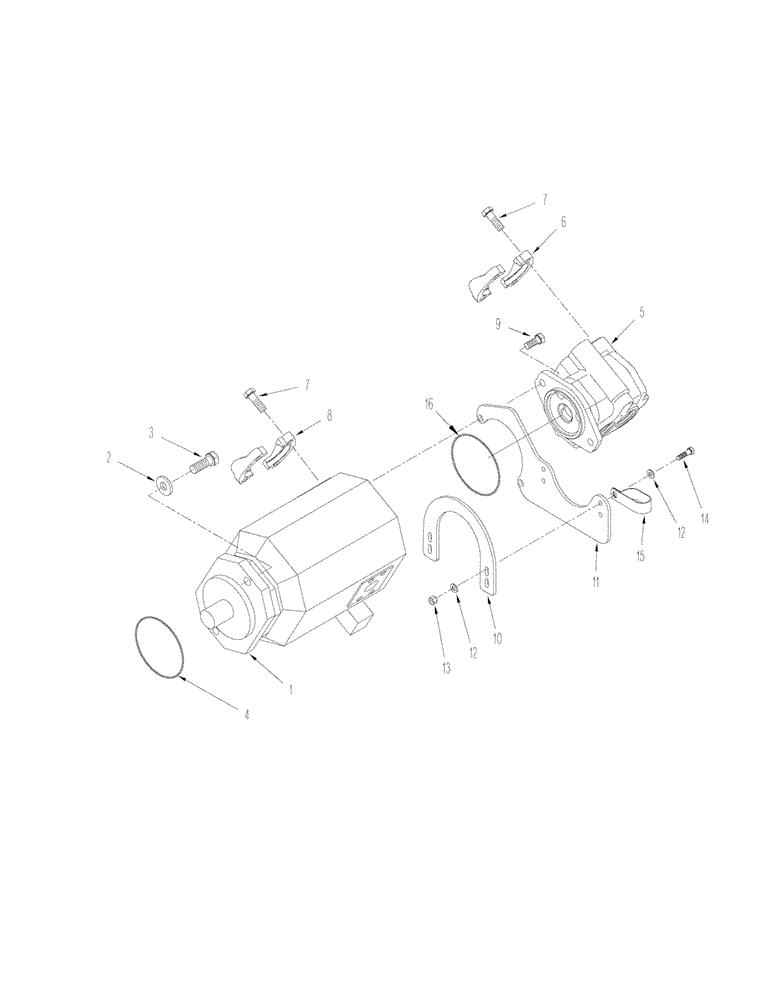

Запчасти Case IH STX325 (08-20) - HIGH OUTPUT HYDRAULICS - PUMP MOUNTING (08) - HYDRAULICS

1

192296A3

PUMP

Piston, 100 cc, See Figure 08-21

1шт.

1

87308196R

REMAN-HYD PUMP,100 CC

Reman for New PN 192296A3

1шт.

1

87308196C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

496-81022

WASHER

11/16 x 1-1/4 x 1/4 in

2шт.

3

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

4

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

5

87428412

HYDRAULIC PUMP

Gear, 100 cc, See Figure 08-22

1шт.

432244A3R

REMAN-HYD PUMP

STX275, STX325 all (AFTER S/N JEE0099501); Reman for New P/N 87428412

1шт.

432244A3C

CORE-HYDRAULIC PUMP

Return Number

1шт.

6

A14141

FLANGE

Split

2шт.

7

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

8

L14386

CLAMP

Split

2шт.

9

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

10

90-6743T1

SHIELD

Lower, Serial Range: -JEE0102661

1шт.

10

87419159

PLATE

, Start Serial: JEE0102661

1шт.

11

418324A1

BRACKET

, Serial Range: -JEE0102661

1шт.

With Manual Shift Transmission

1шт.

11

87419160

BRACKET

, Start Serial: JEE0102661

1шт.

With Manual Shift Transmission

1шт.

11

293405A1

BRACKET

, Serial Range: -JEE0102661

1шт.

With Power Shift Transmission

1шт.

11

87419459

BRACKET

, Start Serial: JEE0102661

1шт.

With Power Shift Transmission

1шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

15

L111928

CLAMP

1шт.

16

436514A1

O-RING

1шт.

14

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.
