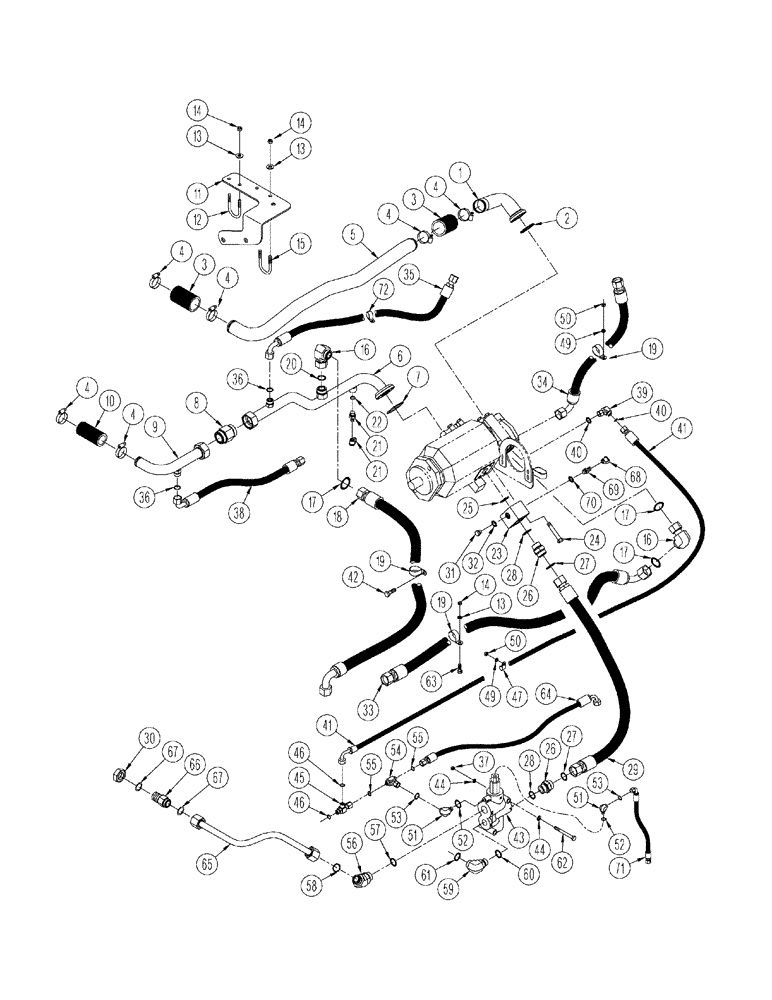

Запчасти Case IH STX325 (08-19[02]) - HIGH OUTPUT HYDRAULICS - PUMP LUBRICATION CIRCUIT, WITH ACCUSTEER (08) - HYDRAULICS

1

419641A1

TUBE

1шт.

2

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

3

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4 in.), Cut From 1-4568

2шт.

4

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

6шт.

5

419642A1

TUBE

1шт.

6

419645A1

TUBE

1шт.

7

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

8

87411517

VALVE, CHECK

1-1/2

1шт.

9

419647A1

TUBE

1шт.

10

1-4571

HOSE

114 mm (4-1/2 in.), Cut From 1-4482T1

1шт.

11

357400A1

BRACKET

1шт.

12

19-154

U-BOLT,5/16"-18 x 1 3/4" x 3

1шт.

13

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

14

425-105

NUT,5/16"-18, G5

4шт.

15

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

1шт.

16

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Inc. 17

2шт.

18

364317A1

HOSE

1493 mm (59 in.)

1шт.

19

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

3шт.

21

358968A1

FITTING

Diagnostic, M18 or x 1.5, Inc. 22

1шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

23

404995A1

BLOCK

Pump

1шт.

24

461-35040

HEX SOC SCREW,1/2"-13 x 2 1/2"

4шт.

25

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

26

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 or, Inc. 27 and 28

2шт.

28

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

29

327464A1

HOSE ASSY.

950 mm (37 in.)

1шт.

30

701-908

BHD LOCK NUT,1-7/16" - 12

1170 mm (46 in.)

1шт.

31

220064A1

PLUG,M14 x 1.5, ORB

Incl. 32

1шт.

32

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

33

397941A1

HOSE ASSY.

1625 mm (64 in.)

1шт.

34

364315A1

HOSE,25.4mm ID x 1305mm L

1305 mm (51 in.)

1шт.

35

384250A1

HOSE ASSY.

915 mm (36 in.)

1шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

37

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

38

327463A2

HOSE

622 mm (24 in.)

1шт.

39

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 40

1шт.

40

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

41

379590A1

HOSE ASSY.

1270 mm (50 in.)

1шт.

43

337481A1

VALVE

Priority, See Figure 08-23

1шт.

44

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

45

300209A1

VALVE

Shuttle, Inc. 46

1шт.

46

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

47

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

48

L126936

SPACER

1шт.

49

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

50

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

51

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 52 and 53

1шт.

52

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

53

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

54

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 55

1шт.

55

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

56

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

57

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

59

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 60 and 61

1шт.

60

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

61

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

62

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

64

389443A1

HOSE ASSY.

1170 mm (46 in.)

1шт.

65

419657A1

TUBE

1шт.

66

701-116

UNION,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

1-7/16 fcsl x blkhd, Inc. 67

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 68 - 70

1шт.

68

H434163

DUST CAP

1шт.

69

NSS

NOT SOLD SEPARAT

Fitting

1шт.

70

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

71

327471A1

HOSE

724 mm (18-1/2 in.)

1шт.

72

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

42

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

63

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

27

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

58

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

67

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.
