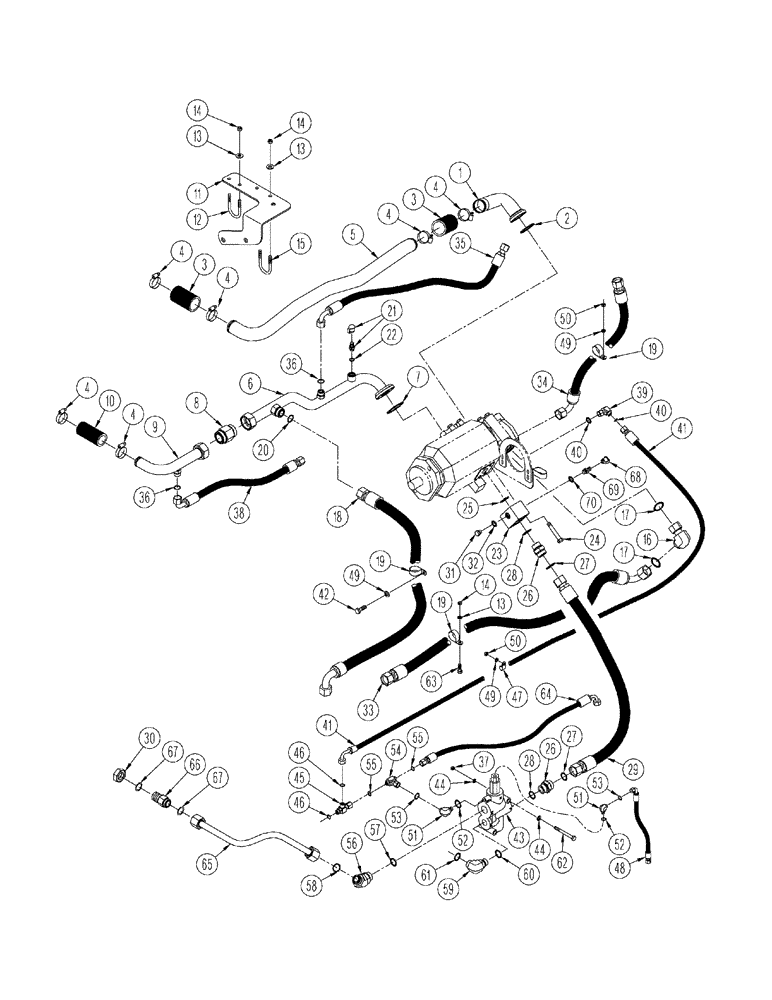

Запчасти Case IH STX325 (08-19[01]) - HIGH OUTPUT HYDRAULICS - PUMP LUBRICATION CIRCUIT, WITHOUT ACCUSTEER (08) - HYDRAULICS

1

411142A1

TUBE

1шт.

With Manual Shift Transmission

1шт.

1

419651A1

TUBE

1шт.

With Power Shift Transmission

1шт.

2

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

3

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4 in.), Cut From 4-4568

2шт.

4

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

6шт.

5

411140A1

TUBE

1шт.

With Manual Shift Transmission

1шт.

5

419649A1

TUBE

1шт.

With Power Shift Transmission

1шт.

6

411138A2

TUBE

1шт.

With Manual Shift Transmission

1шт.

6

419649A1

TUBE

1шт.

With Power Shift Transmission

1шт.

7

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

8

87411517

VALVE, CHECK

1-1/2

1шт.

9

419647A1

TUBE

1шт.

With Manual Shift Transmission

1шт.

9

419653A1

TUBE

1шт.

With Power Shift Transmission

1шт.

10

1-4571

HOSE

114 mm (4-1/2 in.)

1шт.

11

407211A1

BRACKET

1шт.

With Manual Shift Transmission

1шт.

11

430948A1

BRACKET

1шт.

With Power Shift Transmission

1шт.

12

19-154

U-BOLT,5/16"-18 x 1 3/4" x 3

1шт.

13

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

14

231-1445

NUT,5/16"-18, GB

4шт.

15

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

1шт.

16

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Inc. 17

1шт.

18

366503A1

HOSE ASSY.

1330 mm (52-3/8")

1шт.

19

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

5шт.

21

358968A1

FITTING

Diagnostic, M18 or x 1.5, Inc. 22

1шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

23

86992232

BLOCK

Pump

1шт.

24

461-35040

HEX SOC SCREW,1/2"-13 x 2 1/2"

4шт.

25

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

26

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 27 and 28

2шт.

28

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

29

327464A1

HOSE ASSY.

950 mm (37 in.)

1шт.

30

701-908

BHD LOCK NUT,1-7/16" - 12

1шт.

31

220064A1

PLUG,M14 x 1.5, ORB

Incl. 32

1шт.

32

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

33

315573A1

HOSE ASSY.

1700 mm (67 in.)

1шт.

34

419364A1

HOSE ASSY.

1шт.

With Manual Shift Transmission

1шт.

34

364315A1

HOSE,25.4mm ID x 1305mm L

1305 mm (51 in.)

1шт.

With Power Shift Transmission

1шт.

35

366502A1

HOSE ASSY.

787 mm (31 in.)

1шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

37

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

38

327463A2

HOSE

622 mm (24 in.)

1шт.

39

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 40

1шт.

40

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

41

419363A1

HOSE ASSY.

1шт.

With Manual Shift Transmission

1шт.

41

379590A1

HOSE ASSY.

1270 mm (50 in.)

1шт.

With Power Shift Transmission

1шт.

43

337481A1

VALVE

Priority, See Figure 08-23

1шт.

44

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

45

300209A1

VALVE

Shuttle

1шт.

46

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

47

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.

48

327471A1

HOSE

1шт.

49

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

50

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

51

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 52 and 53

2шт.

52

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

53

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

54

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 55

1шт.

55

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

56

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 57 and 58

1шт.

57

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

59

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 60 and 61

1шт.

60

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

61

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

62

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

64

327474A1

HOSE

1650 mm (65 in.)

1шт.

65

419657A1

TUBE

1шт.

66

701-116

UNION,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Inc. 67

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 68 and 69

1шт.

68

H434163

DUST CAP

1шт.

69

NSS

NOT SOLD SEPARAT

Fitting

1шт.

70

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

42

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

63

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

27

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

58

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

67

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.
