Запчасти Case IH STX325 (08-15) - STANDARD HYDRAULICS - PUMP LUBRICATION CIRCUIT, WITH POWER SHIFT TRANSMISSION (08) - HYDRAULICS

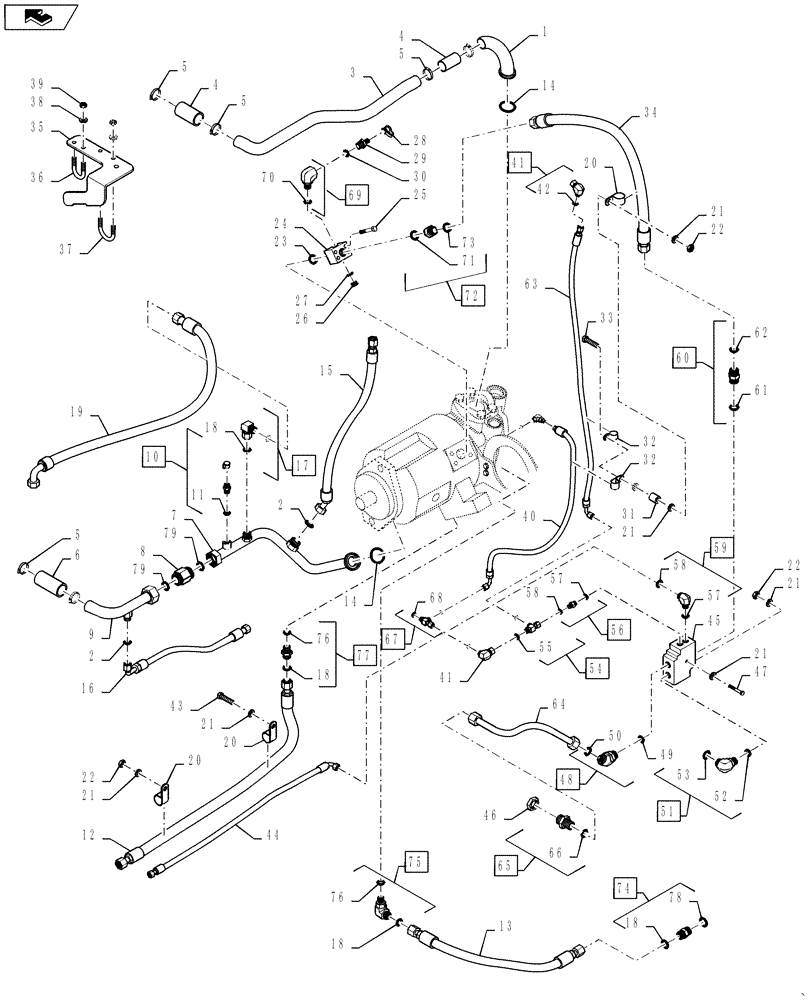

Схема запчастей Case IH STX325 - (08-15) - STANDARD HYDRAULICS - PUMP LUBRICATION CIRCUIT, WITH POWER SHIFT TRANSMISSION (08) - HYDRAULICS
3
4
64
28
37
22
21
10
47
74
6
27
79
45
8
56
18
59
51
11
21
41
76
40
48
75
19
22
50
72
65
18
18
21
71
54
9
5
68
55
22
20
23
69
52
79
31
2
44
73
77
16
13
14
57
1
38
home
21
21
33
42
15
20
43
26
49
29
12
32
2
39
62
35
78
7
76
5
70
36
46
20
58
18
57
14
53
41
66
58
32
34
21
5
61
4
25
24
5
17
30
60
67
63

Артикул

Название

Примечание

Количество

1

407208A1

TUBE

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

3

419677A1

TUBE

1шт.

4

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4 in.), Cut From 4-4568

2шт.

5

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

6шт.

6

1-4571

HOSE

114 mm (4-1/2 in.), Cut From 1-4482

1шт.

7

419682A1

TUBE

1шт.

8

87411517

VALVE, CHECK

1-1/2

1шт.

9

419647A1

TUBE

1шт.

10

358968A1

FITTING

Diagnostic, M18 or x 1.5, Inc. 11

1шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

12

397577A1

HOSE ASSY.

1550 mm (61 in.)

1шт.

13

375333A1

HOSE ASSY.

1372 mm (54 in.)

1шт.

14

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2шт.

15

390574A1

HOSE ASSY.

584 mm (23 in.)

1шт.

16

327499A1

HOSE ASSY.

665 mm (26-1/2")

1шт.

17

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Inc. 18

1шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

19

375334A2

HOSE ASSY.

1486 mm (58-1/2 in.)

1шт.

20

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

5шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

22

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

23

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

24

347314A2

BLOCK

Pump

1шт.

25

461-33844

HEX SOC SCREW,3/8"-16 x 2 3/4"

3/8 x 2-3/4; 8

4шт.

26

220064A1

PLUG,M14 x 1.5, ORB

1шт.

27

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 28 and 29

1шт.

28

H434163

DUST CAP

1шт.

29

NSS

NOT SOLD SEPARAT

Fitting

1шт.

30

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

31

410449A1

SPACER

1шт.

32

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.

33

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

1шт.

34

375332A1

HOSE ASSY.

1308 mm (51 in.)

1шт.

35

430948A1

BRACKET

1шт.

36

19-154

U-BOLT,5/16"-18 x 1 3/4" x 3

1шт.

37

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

1шт.

38

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

39

231-1445

NUT,5/16"-18, GB

4шт.

40

375336A2

HOSE ASSY.

991 mm (39 in.)

1шт.

41

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 42

1шт.

42

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

43

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

44

327471A1

HOSE

724 mm (28 in.)

1шт.

45

363294A1

VALVE

Priority, See Figure 08-18

1шт.

46

701-908

BHD LOCK NUT,1-7/16" - 12

M25

1шт.

47

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

48

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 49 and 50

1шт.

49

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

50

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

51

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 52 and 53

1шт.

52

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

53

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

54

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Inc. 55

1шт.

55

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

56

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 57, 58

1шт.

57

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

58

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

59

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 57 and 58

1шт.

60

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 or, Inc. 61 and 62

1шт.

61

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

62

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

63

327474A1

HOSE

1650 mm (65 in.)

1шт.

64

407666A1

TUBE

1шт.

65

701-116

UNION,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

1-7/16 fc sl x blkhd, Inc. 66

1шт.

66

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

67

300209A1

VALVE

Shuttle, Inc. 68

1шт.

68

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

69

428078A1

ELBOW

M14 or, Inc. 70

1шт.

70

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

71

700-159

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl. 72 and 73

1шт.

72

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

73

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

74

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 18 & 78

1шт.

75

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 18 & 76

1шт.

76

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

77

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 18 & 76

1шт.

78

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

79

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

2шт.
