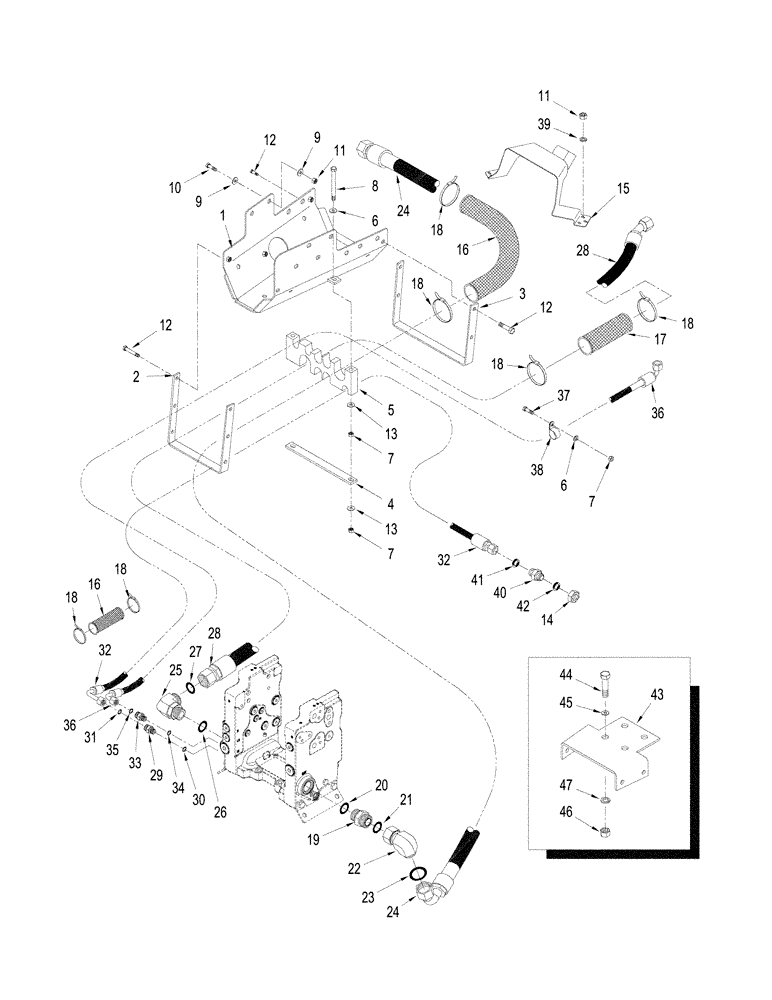

Запчасти Case IH STX325 (08-13) - HYDRAULIC REMOTE HOSES - ELECTRONIC REMOTE (08) - HYDRAULICS

1

87341572

BRACKET

Hose

1шт.

2

405517A1

BRACKET

1шт.

3

405518A1

BRACKET

1шт.

4

405520A1

PLATE

1шт.

5

362419A1

CLAMP

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

8

627-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9, Full Thd

2шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

12

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

14

703-903

TUBE NUT,1" - 14

5/8

4шт.

15

405521A1

SHIELD

1шт.

16

387840A1

SLEEVE

Long

2шт.

17

S120426

TUBE

Short

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

6шт.

19

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 or, Inc. 20 and 21

1шт.

20

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

21

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

22

311834A1

ELBOW

1-7/16 fc sl x swl, Inc. 23

1шт.

23

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

24

327457A3

HOSE ASSY.,25.4mm ID x 2826mm L

2826 mm (111 in.)

1шт.

25

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 26 and 27

1шт.

26

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

27

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

28

384249A1

HOSE ASSY.,25.4mm ID x 2775mm L

2775 mm (109 in.)

1шт.

29

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 30, 31

1шт.

30

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

32

327454A4

HOSE ASSY.

3035 mm (119 in.)

1шт.

33

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Inc. 34 and 35

1шт.

34

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

36

327455A2

HOSE ASSY.

2250 mm (132 in.)

1шт.

37

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

38

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

39

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

40

201-146

REDUCER,13/16"-16 Male x 1"-14 Fem, ORFS

Inc. 41

1шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

42

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

43

404604A1

BRACKET

Mounting, PTO / Remote Hose Bracket

1шт.

44

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

5/8 x 3; 8

4шт.

With Power Takeoff

1шт.

44

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

4шт.

Without Power Takeoff

1шт.

45

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

With Power Takeoff

1шт.

46

829-1416

NUT,M16, Cl 10

4шт.

Without Power Takeoff

1шт.

47

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

Without Power Takeoff

1шт.
