Запчасти Case IH STX325 (08-12) - HYDRAULIC REMOTE HOSES - MANUAL REMOTE, BSN JEE0102592 (08) - HYDRAULICS

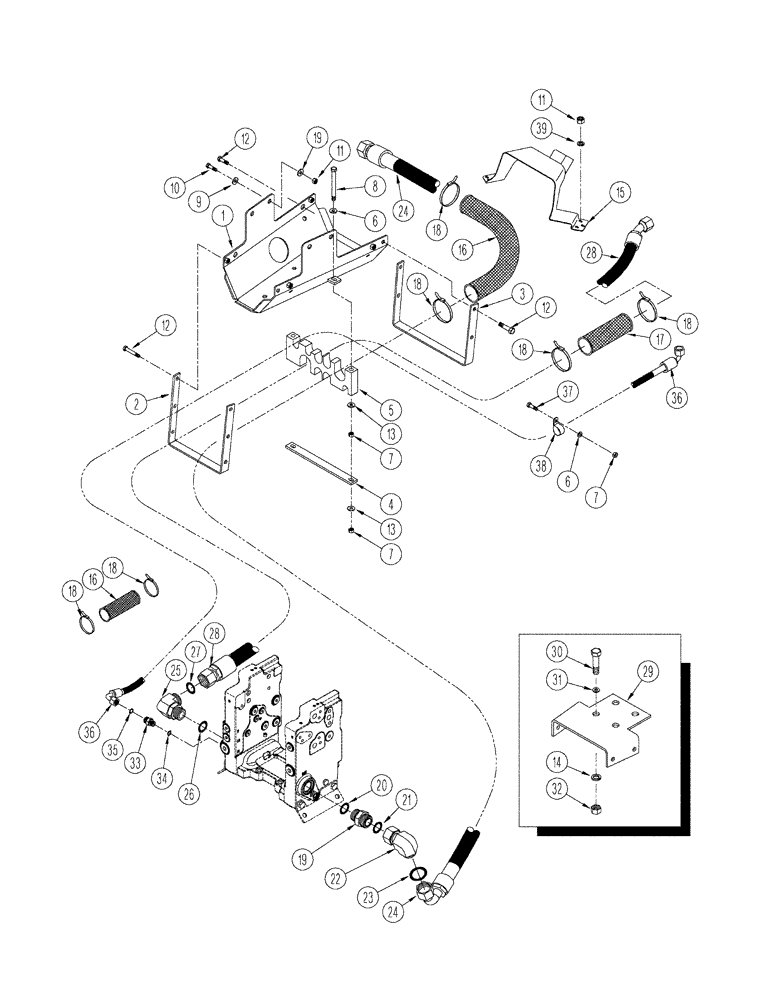

Схема запчастей Case IH STX325 - (08-12) - HYDRAULIC REMOTE HOSES - MANUAL REMOTE, BSN JEE0102592 (08) - HYDRAULICS
1
23
10
4
29
6
2
20
21
15
35
12
5
19
18
14
39
33
31
28
11
7
17
18
9
28
38
36
6
12
13
37
26
34
36
7
25
18
18
11
30
16
3
18
18
19
24
12
7
24
22
27
13
16
8
32

Артикул

Название

Примечание

Количество

1

433355A1

BRACKET

Hose

1шт.

2

405517A1

BRACKET

1шт.

3

405518A1

BRACKET

1шт.

4

405520A1

PLATE

1шт.

5

362419A1

CLAMP

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

8

627-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9, Full Thd

2шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

12

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

14

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

Without Power Takeoff

1шт.

15

370176A3

SHIELD

1шт.

16

387840A1

SLEEVE

Long

2шт.

17

S120426

TUBE

Short

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

6шт.

19

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 20 and 21

1шт.

20

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

21

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

22

311834A1

ELBOW

1-7/16 fc sl x swl, Inc. 23

1шт.

23

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

24

327457A3

HOSE ASSY.,25.4mm ID x 2826mm L

2826 mm (111 in.)

1шт.

25

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 26 and 27

1шт.

26

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

27

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

28

384249A1

HOSE ASSY.,25.4mm ID x 2775mm L

2775 mm (109 in.)

1шт.

29

404604A1

BRACKET

Monting, PTO / Remote Hose Bracket

1шт.

30

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

4шт.

With Power Takeoff

1шт.

30

614-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8, Full Thd

4шт.

Without Power Takeoff

1шт.

31

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

With Power Takeoff

1шт.

32

829-1416

NUT,M16, Cl 10

4шт.

Without Power Takeoff

1шт.

33

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Inc. 34 and 35

1шт.

34

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

36

327455A2

HOSE ASSY.

2250 mm (132 in.)

1шт.

37

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

38

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

39

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

Выбрано товаров: 45
