Запчасти Case IH STX325 (08-08[01]) - AXLE HYDRAULICS - AIR AND LUBRICATION CIRCUIT, WITH ACCUSTEER (08) - HYDRAULICS

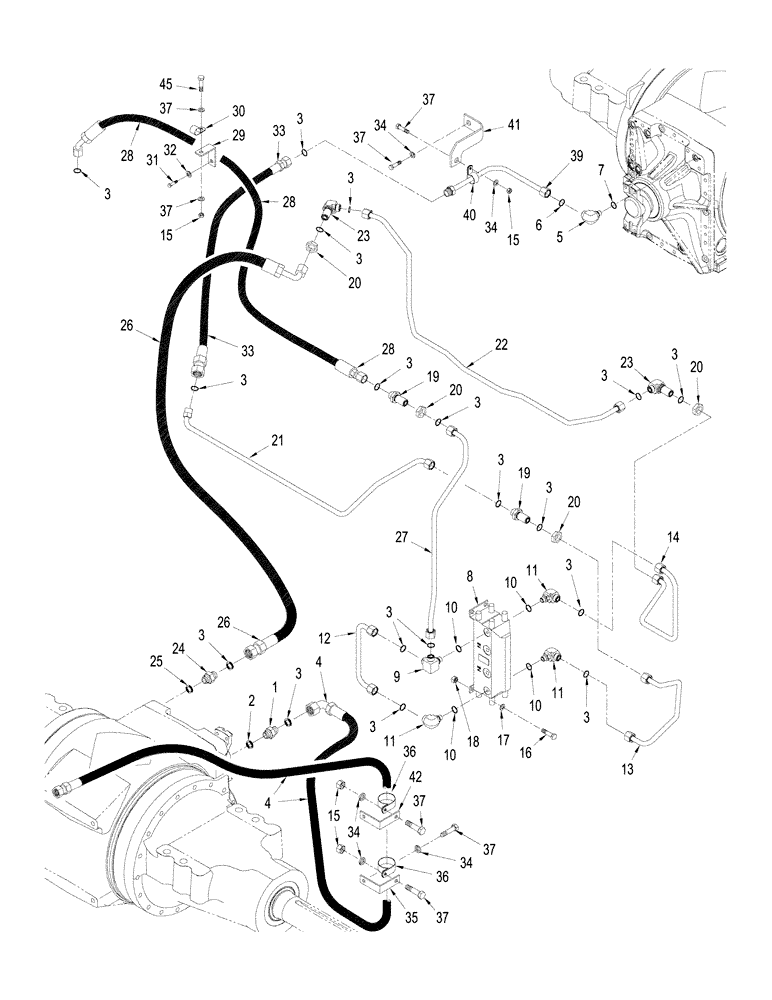

Схема запчастей Case IH STX325 - (08-08[01]) - AXLE HYDRAULICS - AIR AND LUBRICATION CIRCUIT, WITH ACCUSTEER (08) - HYDRAULICS
11
30
3
37
37
3
26
32
15
3
34
13
37
12
28
39
36
22
28
15
29
20
23
14
3
3
37
16
3
42
2
1
34
23
3
3
26
18
8
20
28
31
24
33
10
35
37
10
37
34
11
3
36
3
33
41
4
3
3
3
20
37
40
4
6
3
21
17
19
10
27
7
9
3
19
20
11
5
3
15
10
3
25
34
45

Артикул

Название

Примечание

Количество

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 2 and 3

1шт.

2

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

10шт.

4

436926A1

HOSE ASSY.

2045 mm ( 81 in.)

1шт.

5

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 6, 7

2шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

8

434727A1

MOTOR-PUMP

Axle Air/Lube

1шт.

9

450905A1

TEE

Special, 1/2 or x fc sl, Inc. 3 and 10

1шт.

10

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

11

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 3 and 10

3шт.

12

449794A1

TUBE

1шт.

13

86988496

TUBE,12.70 mm OD

1шт.

14

86988498

TUBE,12.70 mm OD

1шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

17

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

18

829-1310

NUT,M10, Cl 10

4шт.

19

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 3

3шт.

20

701-903

NUT,13/16" - 16

4шт.

21

86988505

TUBE,12.70 mm OD

1шт.

22

86988503

TUBE,12.70 mm OD

1шт.

23

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 3

2шт.

24

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 3 and 25

1шт.

25

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

26

86990405

HOSE ASSY.

1753 mm (69 in.)

1шт.

27

86988501

TUBE,12.70 mm OD

1шт.

28

86990729

HOSE ASSY.

118 mm (44 in.)

1шт.

29

416102A1

SUPPORT

Bracket

1шт.

30

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

31

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

M12 x 25; 10.8

4шт.

32

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

33

86992911

HOSE ASSY.

1562 mm (61 in.)

1шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

35

416512A1

BRACKET

2шт.

36

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

37

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

5шт.

38

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

39

86992700

TUBE,12.70 mm OD

1шт.

40

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

41

86992787

BRACKET

1шт.

42

369960A1

BRACKET

Support

1шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

Выбрано товаров: 42
