Запчасти Case IH STX325 (08-07) - AXLE HYDRAULICS - LUBRICATION AND COOLING CIRCUIT, WITHOUT ACCUSTEER (08) - HYDRAULICS

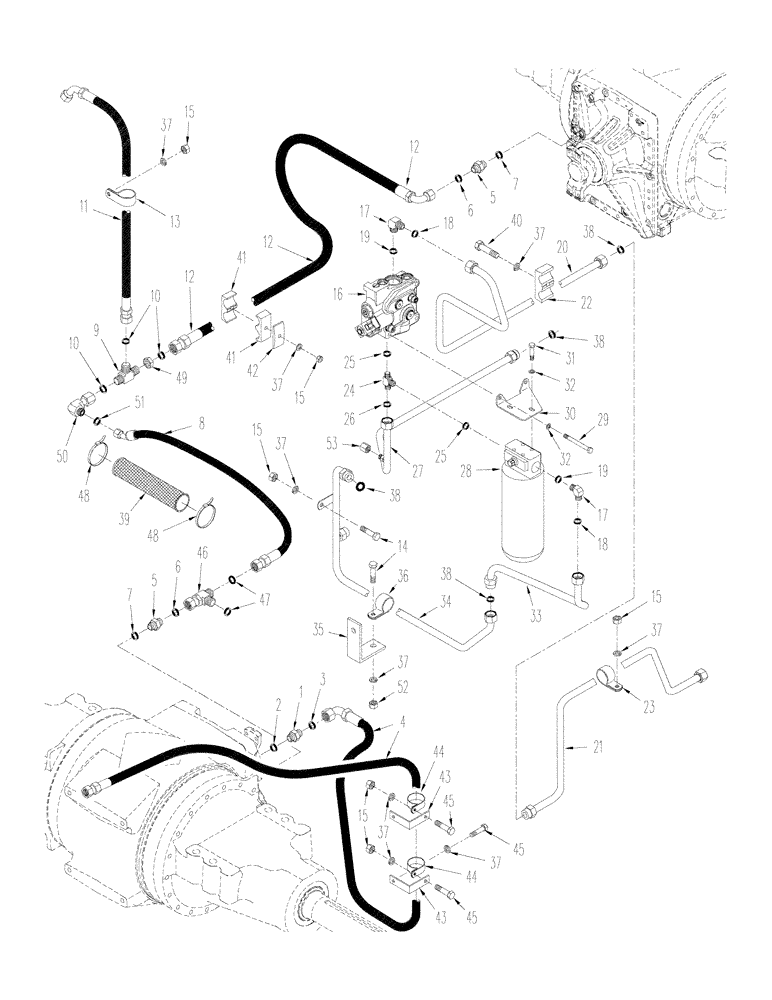

Схема запчастей Case IH STX325 - (08-07) - AXLE HYDRAULICS - LUBRICATION AND COOLING CIRCUIT, WITHOUT ACCUSTEER (08) - HYDRAULICS
21
14
17
45
36
15
37
37
11
18
16
10
7
15
40
8
43
37
19
31
33
25
53
44
35
34
2
23
51
20
25
12
48
28
46
13
38
38
45
7
37
18
32
44
37
41
17
50
5
15
43
4
6
15
47
37
37
3
41
5
10
12
9
39
15
22
26
24
1
19
12
52
30
37
45
38
49
48
42
29
32
38
6
27

Артикул

Название

Примечание

Количество

1

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 2 and 3

1шт.

2

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

4

387467A1

HOSE ASSY.

1689 mm (66-1/2 in.)

1шт.

5

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 6 and 7

2шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

8

392471A1

HOSE ASSY.

1810 mm (71 in.)

1шт.

9

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Inc. 10

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

11

327488A2

HOSE

880 mm (34-1/2 in.)

1шт.

12

368363A1

HOSE

1615 mm (63-1/2 in.)

1шт.

13

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

1шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

16

411104A2

VALVE

Regulator, See Figure 08-39

1шт.

17

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 18 and 19

2шт.

19

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

20

416273A1

TUBE

1шт.

21

416284A1

TUBE

1шт.

22

R15257

CLAMP

1шт.

23

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1-1/16 ID

1шт.

24

328232A1

TEE

1шт.

25

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

27

416271A2

TUBE

1шт.

28

86991559

FILTER ASSY

See Figure 08-04

1шт.

29

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

30

413322A1

BRACKET

1шт.

31

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

32

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

33

416269A1

TUBE

1шт.

34

438369A1

TUBE

1шт.

35

416511A1

BRACKET

Support

2шт.

36

515-22254

CLAMP,1", Insul, 5/16" Bolt

2шт.

37

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

14шт.

39

S120426

TUBE

Protective

1шт.

40

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

41

50-2551T1

CLAMP

4шт.

42

50-2533T1

PLATE

1шт.

43

416512A1

BRACKET

2шт.

44

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

45

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

46

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Inc. 2

1шт.

47

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

49

701-903

NUT,13/16" - 16

1шт.

50

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 51

1шт.

51

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

52

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

53

701-906

CAP,1" - 14

1шт.

Without Three Point Hitch

1шт.

14

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

Выбрано товаров: 54
