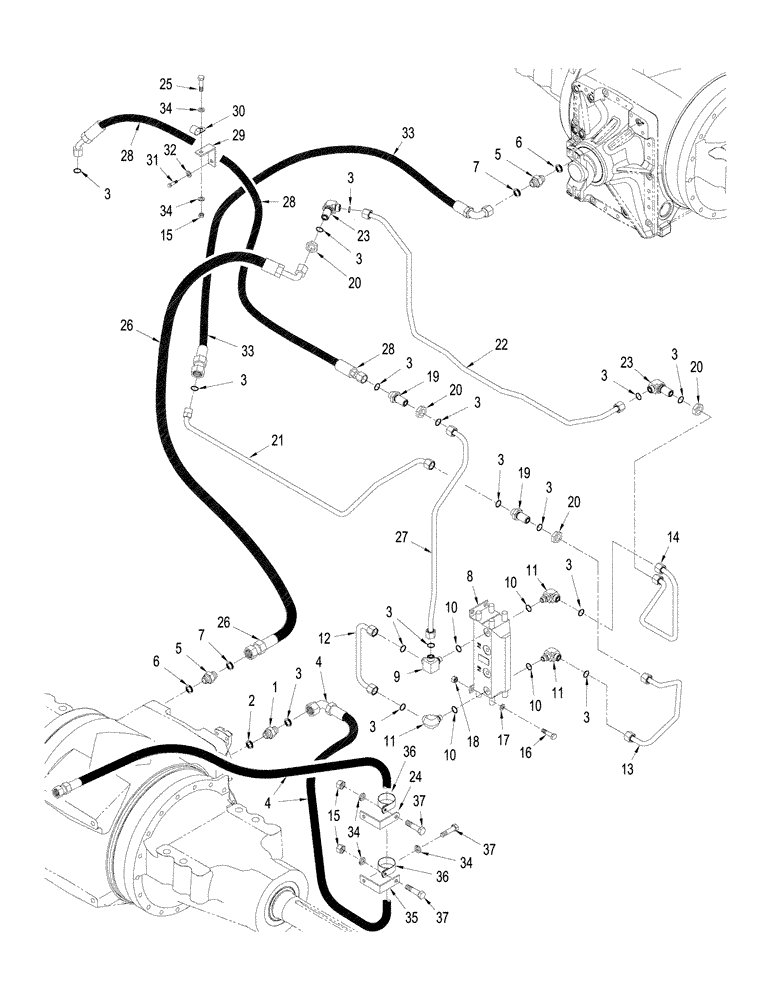

Запчасти Case IH STX325 (08-07[01]) - AXLE HYDRAULICS - AIR AND LUBRICATION CIRCUIT, WITHOUT ACCUSTEER (08) - HYDRAULICS

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 2 and 3

2шт.

2

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

10шт.

4

436926A1

HOSE ASSY.

2045 mm ( 81 in.)

1шт.

5

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 6 and 7

2шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

8

434727A1

MOTOR-PUMP

Axle Air/Lube

1шт.

9

450905A1

TEE

Special, 1/2 or x fc sl, Inc. 3 and 10

1шт.

10

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

11

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 3 and 10

3шт.

12

449794A1

TUBE

1шт.

13

86992542

TUBE,12.70 mm OD

1шт.

14

449817A2

TUBE

1шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

17

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

18

829-1310

NUT,M10, Cl 10

4шт.

19

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 3

3шт.

20

701-903

NUT,13/16" - 16

4шт.

21

449823A1

TUBE

1шт.

22

449825A1

TUBE

1шт.

23

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 3

2шт.

24

369960A1

BRACKET

Support

1шт.

25

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

5шт.

26

86990405

HOSE ASSY.

1753 mm (69 in.)

1шт.

27

86988501

TUBE,12.70 mm OD

1шт.

28

86990729

HOSE ASSY.

118 mm (44 in.)

1шт.

29

416102A1

SUPPORT

Bracket

1шт.

30

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

31

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

32

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

33

86990404

HOSE ASSY.

1765 mm (69-1/2 in.)

1шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

35

416512A1

BRACKET

1шт.

36

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.
