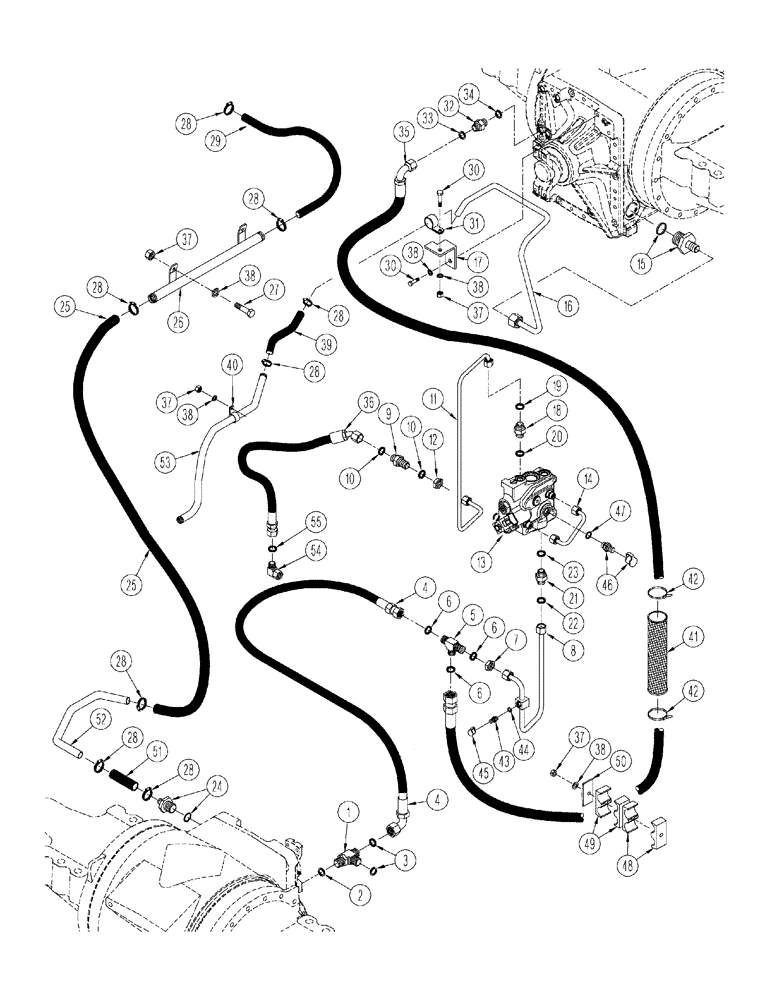

Запчасти Case IH STX325 (08-06) - AXLE HYDRAULICS - LUBRICATION CIRCUIT, WITH ACCUSTEER, BSN JEE0102001 (08) - HYDRAULICS

1

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2 and 3

1шт.

2

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

4

360201A4

HOSE ASSY.

1925 mm (75-1/2 in.)

1шт.

5

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Inc. 6

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

7

701-903

NUT,13/16" - 16

1шт.

8

413327A1

TUBE

1шт.

9

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 10

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

11

413334A1

TUBE

1шт.

12

701-903

NUT,13/16" - 16

1шт.

13

411104A2

VALVE

Regulator, See Figure 08-39

1шт.

14

413338A1

TUBE

1шт.

15

352734A1

HYD CONNECTOR

1шт.

16

419605A1

TUBE

1шт.

17

358915A1

BRACKET

1шт.

18

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Inc. 19 and 20

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

21

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 22 and 23

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

337545A1

HYD CONNECTOR

1шт.

25

370250A1

HOSE

990 mm (39 in.), Cut From S118383

1шт.

26

416280A1

TUBE

1шт.

28

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

8шт.

29

327491A1

HOSE ASSY.

660 mm (26 in.), Cut From 2-7659

1шт.

30

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

31

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

32

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 33 and 34

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

34

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

35

360199A1

HOSE ASSY.

1903 mm (75 in.)

1шт.

36

406045A1

HOSE ASSY.

394 mm (15-1/2 in.)

1шт.

37

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

38

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

39

408000A1

HOSE

609 mm (24 in.), Cut From 31-2755

1шт.

40

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1-1/16 ID

2шт.

41

S120426

TUBE

1шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

43

392690A1

COUPLING

Diagnostic, Inc. 44

1шт.

44

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

45

399032A1

CAP

1шт.

46

358968A1

FITTING

Diagnostic, M18 or x 1.5, Inc. 47

1шт.

47

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

48

50-2551T1

CLAMP

4шт.

49

50-2534T1

CLAMP

4шт.

50

50-2533T1

PLATE

2шт.

51

31-2257

HOSE

2шт.

52

416278A1

TUBE

1шт.

53

419607A1

TUBE

1шт.

54

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 55

1шт.

55

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

27

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
