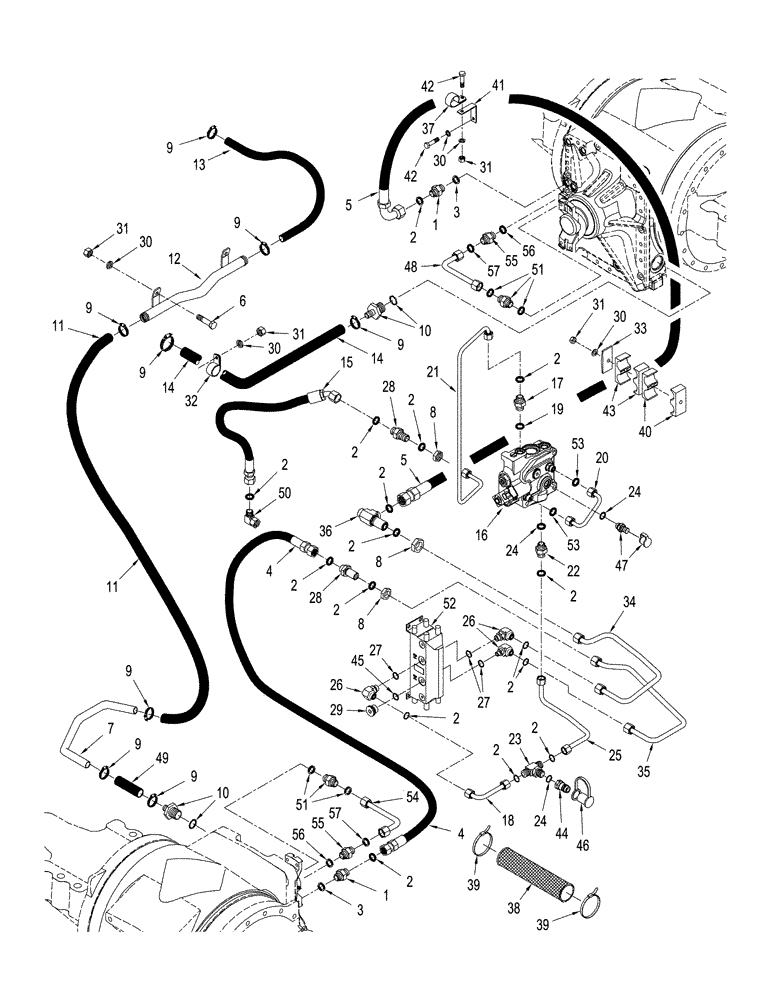

Запчасти Case IH STX325 (08-05[02]) - AXLE HYDRAULICS - LUBRICATION CIRCUIT, WITHOUT ACCUSTEER, ASN JEE0106701 (08) - HYDRAULICS

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2 and 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

8шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

360201A4

HOSE ASSY.

1925 mm (75-1/2 in.)

1шт.

5

348357A1

HOSE ASSY.

1903 mm (90 in.)

1шт.

7

416278A1

TUBE

1шт.

8

701-903

NUT,13/16" - 16

3шт.

9

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

6шт.

10

337545A1

HYD CONNECTOR

Axle Drain

2шт.

11

370250A1

HOSE

990 mm (39 in.), Cut From S118383

1шт.

12

416280A2

TUBE

1шт.

13

327491A1

HOSE ASSY.

660 mm (26 in.), Cut From 31-2755

1шт.

14

437170A1

HOSE,1.00" ID x 48.00"

Cut from Bulk

1шт.

15

406045A1

HOSE ASSY.

394 mm (15-1/2 in.)

1шт.

16

411104A2

VALVE

Regulator, See Figure 08-07

1шт.

17

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Inc. 2 and 19

1шт.

18

87307521

TUBE,9.40 mm ID x 12.70 mm OD

1шт.

19

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

20

413338A1

TUBE

1шт.

21

449800A1

TUBE

1шт.

22

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 2 and 24

1шт.

23

700-447

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2, 24

1шт.

24

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

25

87307544

TUBE,9.40 mm ID x 12.70 mm OD x 43.00, 64.23 mm L

1шт.

26

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1/2 or x fc sl, Incl. 2, 27

4шт.

27

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

90 Duro, .489" ID x .070" thk

1шт.

28

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 2

2шт.

29

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 45

1шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

10шт.

32

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

33

435468A1

PLATE

3шт.

34

449813A2

TUBE

1шт.

35

449815A2

TUBE

1шт.

36

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

90, 1/2 fc sl x blkhd, Incl. 2

1шт.

37

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

38

S120426

TUBE

Protective

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

40

435470A1

CLAMP

6шт.

41

416512A1

BRACKET

1шт.

42

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

43

435469A1

CLAMP

6шт.

44

392690A1

COUPLING

Diagnostic, Inc. 3

1шт.

45

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

46

399032A1

CAP

1шт.

47

358968A1

FITTING

Diagnostic, M18 orb x 1.5 Inc. 24

1шт.

48

86991773

HYD TUBE,9.52 mm OD x 56.78, 36.875 mm L

Pinion Lube

1шт.

49

435457A1

HOSE,1.00" ID x 4.00"

Cut from Bulk

1шт.

50

416278A1

TUBE

90, M12 x swl, Inc. 2

1шт.

51

86985637

FITTING

Orificed

2шт.

52

434727A1

MOTOR-PUMP

Axle Air/Lube

1шт.

53

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

54

86991772

TUBE,8 mm OD

Pinion Lube

1шт.

55

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M14 or x 9/16 fc sl, Inc. 56 and 57

2шт.

56

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

57

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

(M7.65 ID x 1.78 Thk)

1шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
