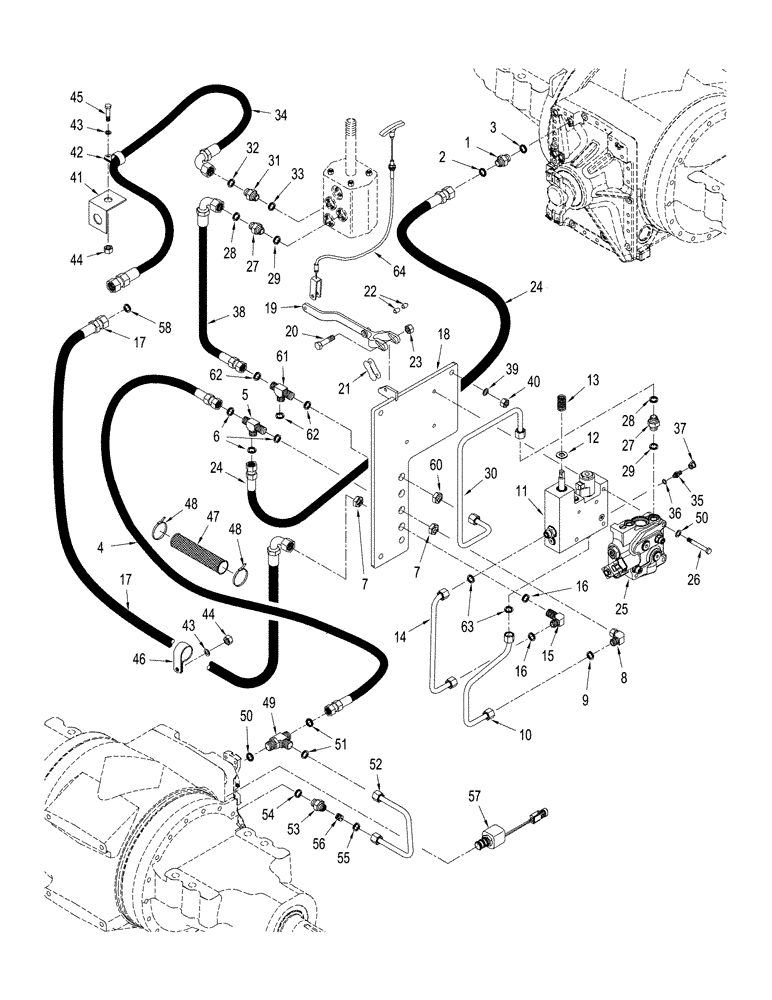

Запчасти Case IH STX325 (07-05[03]) - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, WITH ACCUSTEER (07) - BRAKES

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2 and 3

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

360200A2

HOSE ASSY.

1905 mm (75 in.)

1шт.

5

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Inc. 6

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

7

701-903

NUT,13/16" - 16

2шт.

8

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 9

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

413330A1

TUBE

1шт.

11

319774A4

VALVE

Tow Block, See Figure 08-40

1шт.

12

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

13

361897A1

SPRING

1шт.

14

413332A1

TUBE

1шт.

15

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 16

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

17

327484A2

HOSE ASSY.

1033 mm (40-1/2 in.)

1шт.

18

413320A1

PLATE

1шт.

19

390918A3

ARM

Pivot

1шт.

20

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

1шт.

21

242-4412

CHAIN LINK

1шт.

22

392748A1

SPACER

2шт.

23

832-10406

NUT,M6 x 1, Cl 8

1шт.

24

388391A1

HOSE ASSY.

1720 mm (68 in.)

1шт.

25

411104A2

VALVE

Regulator, See Figure 08-39

1шт.

26

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

27

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Inc. 28 and 29

2шт.

28

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

29

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

30

413324A1

TUBE

1шт.

31

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 32, 33

1шт.

32

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

33

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

34

360206A1

HOSE ASSY.

1288 mm (50 in.)

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic

1шт.

36

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

37

H434163

DUST CAP

1шт.

38

392664A1

HOSE ASSY.

1638 mm (64 in.)

1шт.

39

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

40

829-1412

NUT,M12, Cl 10.9

3шт.

41

416102A1

SUPPORT

1шт.

42

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

43

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

44

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

45

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

46

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

P-type

2шт.

47

387840A1

SLEEVE

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.

49

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 50 and 51

1шт.

50

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

51

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

52

416276A1

TUBE

1шт.

341195A1

ORIFICE

Inc. 53 - 56

1шт.

53

NSS

NOT SOLD SEPARAT

Connector, 13/16" fcsl x M14 orb

1шт.

54

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

55

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

56

NSS

NOT SOLD SEPARAT

Screw, Set, Hex Soc. M8 x 12, Cup Pt.

1шт.

57

384977A1

VALVE

Differential Lock, See Figure 08-38

1шт.

58

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

59

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

60

701-919

BHD LOCK NUT,1" - 14

1шт.

61

701-429

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Inc. 62

1шт.

62

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

63

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

64

349863A2

CABLE

Tow Valve, See Figure: 08-34 for Mounting & Parts

1шт.
