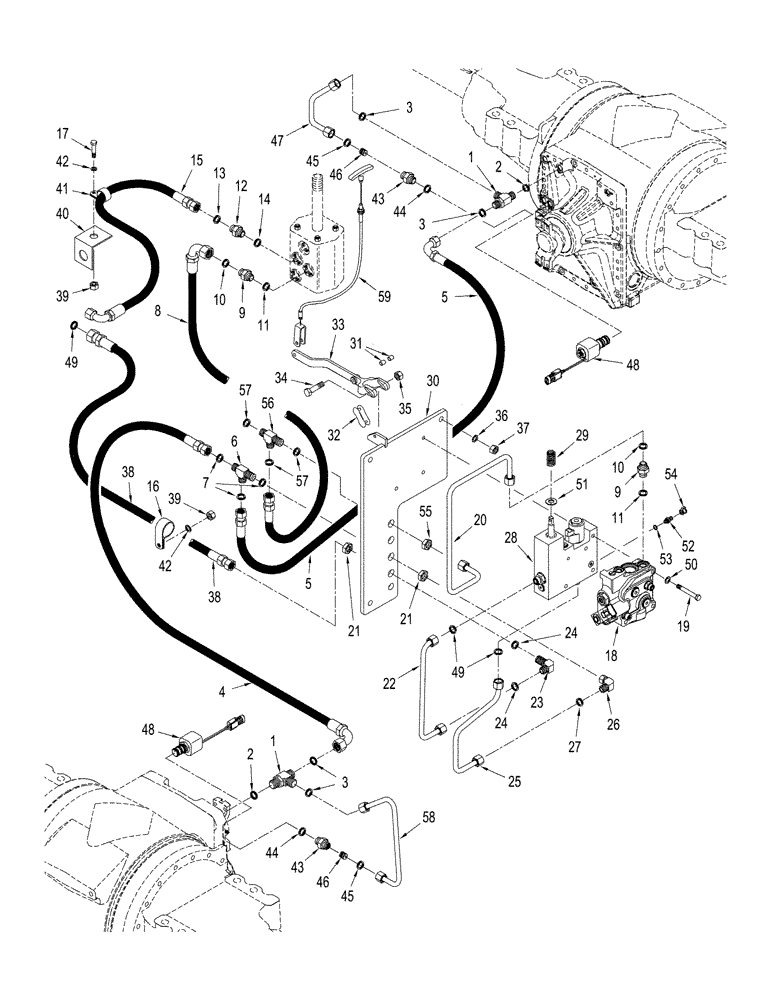

Запчасти Case IH STX325 (07-05[01]) - PARK BRAKE CIRCUIT, WITH DIFFERENTIAL LOCK, WITHOUT ACCUSTEER (07) - BRAKES

1

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 2 and 3

2шт.

2

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

4

360200A2

HOSE ASSY.

1905 mm (75 in.)

1шт.

5

327479A2

HOSE

1720 mm (67 in.)

1шт.

6

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Inc. 7

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

8

392427A1

HOSE ASSY.

1947 mm (76-1/2 in.)

1шт.

9

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Inc. 10 and 11

2шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

12

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 13, 14

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

15

360206A1

HOSE ASSY.

1288 mm (50 in.)

1шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

18

411104A2

VALVE

Regulator, See Figure 08-39

1шт.

19

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

3шт.

20

413324A1

TUBE

1шт.

21

701-903

NUT,13/16" - 16

2шт.

22

413332A1

TUBE

1шт.

23

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 24

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

25

413330A1

TUBE

1шт.

26

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 27

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

319774A4

VALVE

Tow Block, See Figure 08-40

1шт.

29

361897A1

SPRING

1шт.

30

413320A1

PLATE

1шт.

31

392748A1

SPACER

2шт.

32

242-4412

CHAIN LINK

1шт.

33

390918A3

ARM

1шт.

34

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

1шт.

35

832-10406

NUT,M6 x 1, Cl 8

1шт.

36

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

37

829-1412

NUT,M12, Cl 10.9

3шт.

38

327484A2

HOSE ASSY.

1033 mm (40-1/2 in.)

1шт.

39

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

40

416102A1

SUPPORT

1шт.

41

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

42

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

341195A1

ORIFICE

Inc. 43 - 46

2шт.

43

NSS

NOT SOLD SEPARAT

Connector, 13/16" fcsl x M14 orb

2шт.

44

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

45

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

46

NSS

NOT SOLD SEPARAT

Screw, Set, Hex Soc. M8 x 12, Cup Pt.

1шт.

47

416282A1

TUBE

1шт.

48

384977A1

VALVE

Differential Lock, See Figure 08-38

2шт.

49

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

50

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

51

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 52 - 54

1шт.

52

NSS

NOT SOLD SEPARAT

Fitting, Diagnostic

1шт.

53

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

54

H434163

DUST CAP

1шт.

55

701-919

BHD LOCK NUT,1" - 14

1шт.

56

701-429

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Inc. 57

1шт.

57

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

58

416276A1

TUBE

1шт.

59

349863A2

CABLE

Tow Valve, See Figure: 08-34 for Mounting & Parts

1шт.
