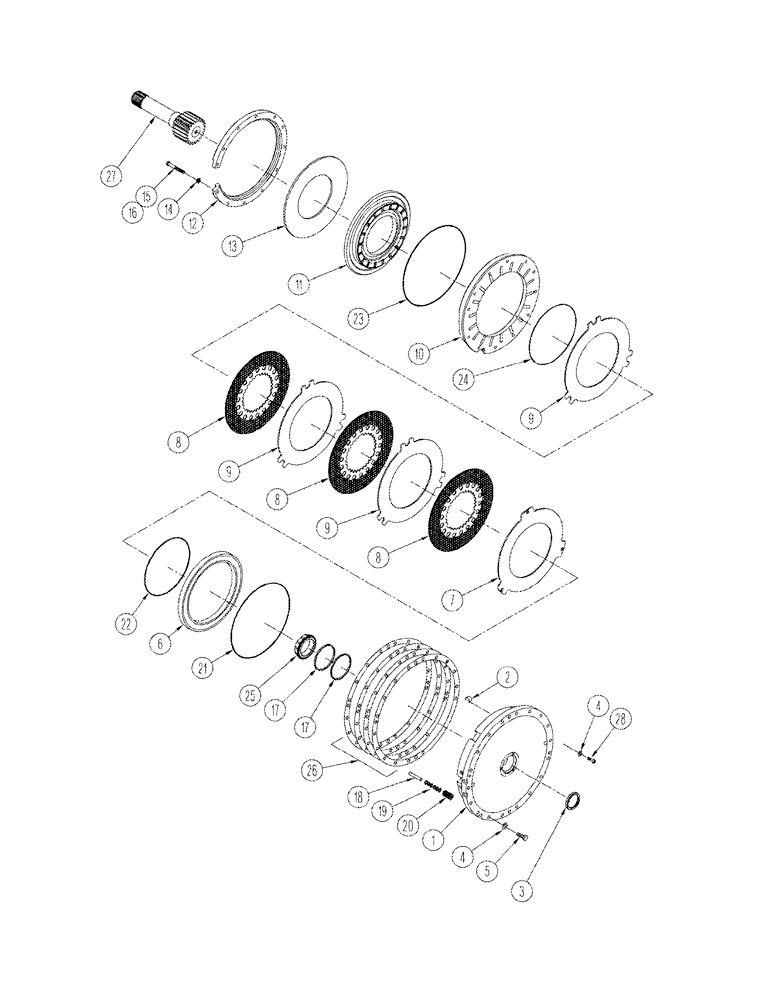

Запчасти Case IH STX325 (06-61) - AXLE ASSEMBLY - BRAKE AND RIGHT-HAND CARRIER (06) - POWER TRAIN

398362A1

CARRIER

Brake, Inc. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

Carrier

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Expansion, 12 mm

1шт.

3

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

1шт.

4

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

18шт.

5

828-16180

BOLT,Hex, M16 x 2 x 180mm, Cl 10.9

15шт.

6

178565A2

PISTON

Service Brake

1шт.

7

228194A3

PLATE

Return

1шт.

8

353363A1

PLATE

Friction

3шт.

9

228193A1

PLATE

Separator

3шт.

10

226252A2

PLATE

Backing

1шт.

11

226318A2

PISTON

Park Brake

1шт.

12

226254A4

RING

1шт.

13

226320A1

BELLEVILLE WASHER,225mm ID x 415mm OD x 7.799mm Thk

1шт.

14

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

15

828-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

16

828-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

10шт.

17

388308A1

SEALING RING

Ring

2шт.

235507A5

ADJUSTER

Inc. 18 - 20

3шт.

18

37-1832

DOWEL,1/2" x 2"

1/2 X 2

1шт.

19

100-1450

SNAP RING,#50, Ext

6шт.

20

1342928C1

BELLEVILLE WASHER

9шт.

21

238-5387

O-RING,0.21" Thk x 17.955" ID, -387, Cl 5, 75 Duro

1/8 ID x 18; 5

1шт.

22

238-7277

O-RING,0.139" Thk x 11.484" ID, -277, Cl 7, 75 Duro

1шт.

23

238-7282

O-RING,0.139" Thk x 15.96" ID, -282, Cl 7, 75 Duro

1шт.

24

238-7278

O-RING,0.139" Thk x 11.984" ID, -278, Cl 7, 75 Duro

1шт.

25

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

26

178553A1

SHIM,0.076mm Thk

1шт.

26

178554A1

SHIM,0.101mm Thk

1шт.

26

178555A1

SHIM,0.130mm Thk

1шт.

26

198843A1

SHIM,0.508mm Thk

1шт.

27

310692A1

SHAFT

Sun Gear, Long

1шт.

28

390873A1

SPECIAL BOLT

3шт.
