Запчасти Case IH STX325 (06-59) - AXLE ASSEMBLY - DIFFERENTIAL, WITHOUT DIFFERENTIAL LOCK (06) - POWER TRAIN

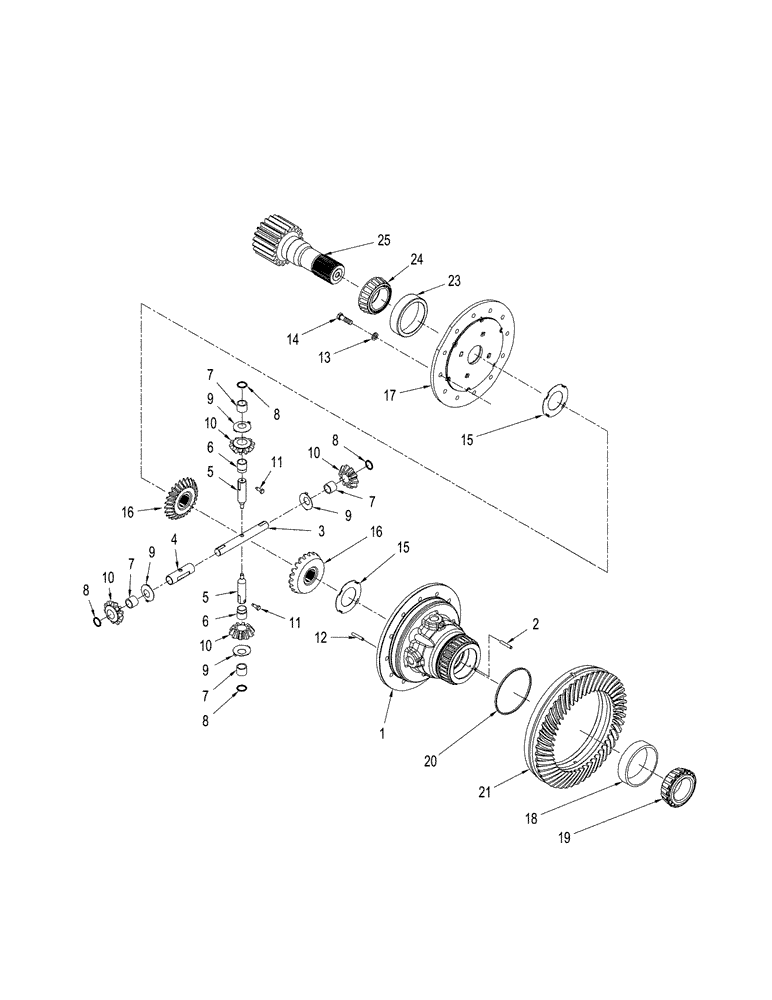

Схема запчастей Case IH STX325 - (06-59) - AXLE ASSEMBLY - DIFFERENTIAL, WITHOUT DIFFERENTIAL LOCK (06) - POWER TRAIN
9
20
25
8
6
18
12
15
4
11
9
19
6
5
10
14
3
1
21
10
9
5
15
8
23
8
16
7
7
11
7
24
9
16
13
7
8
10
17
2
10

Артикул

Название

Примечание

Количество

87471385

DIFFERENTIAL ASSY

without Diff Lock, Inc. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

87520606

PLUG

Sealing, 10 mm

1шт.

3

92907C1

SHAFT

Pinion, Long

1шт.

4

1289349C1

SPACER

Long Pinion

1шт.

5

92906C1

SHORT SHAFT

Pinion

2шт.

6

1289350C1

SPACER

2шт.

7

1270697C1

NEEDLE BEARING

28 Per Gear

112шт.

8

1289348C1

RING

Retaining

4шт.

9

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

4шт.

10

92905C1

PINION

4шт.

11

1997421C1

BOLT

Cross Pin

2шт.

12

137023A1

DOWEL

10 x 60 mm

6шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

14

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

24шт.

15

87629650

THRUST WASHER

2шт.

16

1259633C3

GEAR

Bevel, T20

2шт.

17

84159161

COVER

Housing, Differential Lock

1шт.

18

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

19

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

20

148939C1

SEALING RING,OD 200.60 mm

1шт.

302259A2

BEVEL GEAR

Pinion Shaft, Front Axle, See Figures 06-56 - 06-57, Inc. 21

1шт.

302260A1

GEAR SET

Pinion Shaft, Rear Axle, See Figures 06-56 - 06-57, Inc. 22, Not Illustrated

1шт.

21

NSS

NOT SOLD SEPARAT

Gear, Drive, Front Axle, 53 T

1шт.

22

NSS

NOT SOLD SEPARAT

Gear, Drive, Rear Axle, 53 T, Not Illustrated

1шт.

23

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

24

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

25

310693A1

SHAFT

Sun Gear, Short

1шт.

26

388308A1

SEALING RING

Not Illustrated

1шт.

Выбрано товаров: 29
