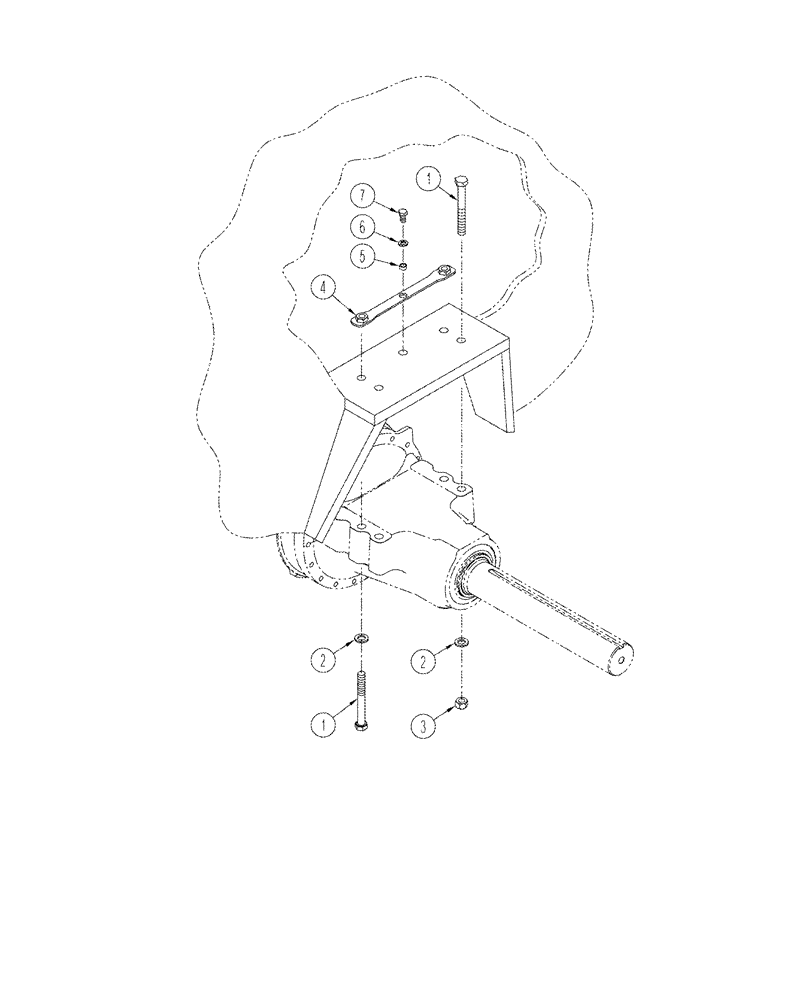

Запчасти Case IH STX325 (06-55) - AXLE MOUNTING (06) - POWER TRAIN

1

827-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

8шт.

2

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

8шт.

3

829-1424

NUT,M24, Cl 10

Use (4) Rear Axle and (8) Front Axle

1шт.

4

296050A1

PLATE

Mounting, Rear Axle

2шт.

5

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

7

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

2шт.
